4K zoom lens · Manual, continuous

PMS-K75C-C

4K Continuous Zoom Lens with Coaxial Illumination

  • Optical magnification: 0.68× – 5.0×
  • Zoom ratio: 7.5:1
  • Working distance: 80 mm
  • Max. sensor size: 1 inch
  • Mount: C-mount
  • Zoom: Manual, continuous

Premium zoom optics, without the premium price.

Already have a quote for a zoom lens? Send it to us.

Will it suit your camera? Check it in the zoom lens selector.

0.68× – 5.0×

Optical magnification

7.5:1

Zoom ratio

80 mm

Working distance

1 inch

Max. sensor size

PMS-K75C-C 4K Continuous Zoom Lens with Coaxial Illumination

Overview

About the PMS-K75C-C

  • Supports 1-inch cameras: more than 1.45× the field of view of a traditional lens at the same magnification
  • Designed for higher resolution: with a 1-inch camera the horizontal resolution reaches 4K
  • Magnification 0.68× to 5.0×, suitable for most inspection tasks
  • Modular design: adapter tubes and lens attachments of several magnifications, and modules with other functions, are optional

Features

  • Supports 1-inch cameras: more than 1.45× the field of view of a traditional lens at the same magnification
  • Designed for higher resolution: with a 1-inch camera the horizontal resolution reaches 4K
  • Magnification 0.68× to 5.0×, suitable for most inspection tasks
  • Modular design: adapter tubes and lens attachments of several magnifications, and modules with other functions, are optional

Applications

  • Biology
  • Electronics
  • Semiconductor
  • Machine vision
  • Other high-precision industries

Technical Specifications

PMS-K75C-C Specifications

General

Optical magnification0.68× – 5.0×
Zoom ratio7.5:1
Working distance80 mm
Max. sensor size1 inch
MountC-mount
ZoomManual, continuous
IlluminationCoaxial

Optical performance

MagnificationDepth of field (mm)N.A.F-numberResolution (µm)TV distortion
0.68×1.780.03310.310.17< 0.02%
1.0×0.890.04511.07.46< 0.02%
2.0×0.250.0812.44.19< 0.02%
3.0×0.120.1113.53.05< 0.02%
4.0×0.080.1216.52.8< 0.02%
5.0×0.070.1220.62.8< 0.02%

Field of view (mm), diagonal × horizontal × vertical

Magnification1" sensor2/3" sensor1/2" sensor1/3" sensor
0.68×23.53 × 18.82 × 14.1216.18 × 12.94 × 9.7111.76 × 9.41 × 7.068.82 × 7.06 × 5.29
1.0×16.0 × 12.8 × 9.611.0 × 8.8 × 6.68.0 × 6.4 × 4.86.0 × 4.8 × 3.6
2.0×8.0 × 6.4 × 4.85.5 × 4.4 × 3.34.0 × 3.2 × 2.43.0 × 2.4 × 1.8
3.0×5.33 × 4.27 × 3.23.67 × 2.93 × 2.22.67 × 2.13 × 1.62.0 × 1.6 × 1.2
4.0×4.0 × 3.2 × 2.42.75 × 2.2 × 1.652.0 × 1.6 × 1.21.5 × 1.2 × 0.9
5.0×3.2 × 2.56 × 1.922.2 × 1.76 × 1.321.6 × 1.28 × 0.961.2 × 0.96 × 0.72

Drawings

Dimensions and System Components

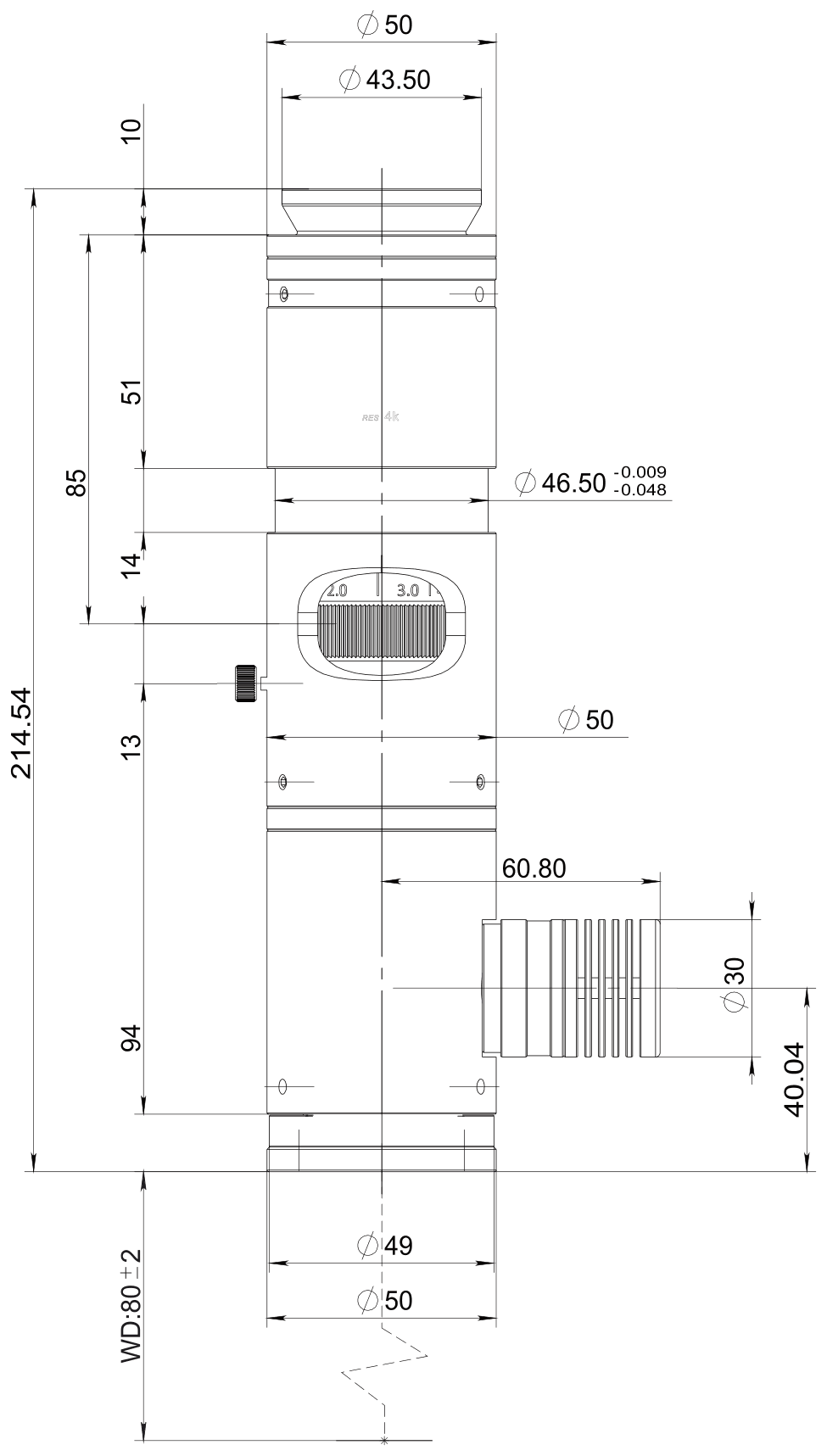

PMS-K75C-C dimension drawing
PMS-K75C-C dimension drawing (mm).
Field of view of the 4K zoom lenses with adapter tubes and lens attachments
Field of view of the 4K zoom lenses with each adapter tube and lens attachment.
4K zoom lens selection diagram
Selection diagram: mount adapters, adapter tubes, lens versions and lens attachments.

Datasheet

Full specification sheet for the PMS-K75C-C.

Configure the PMS-K75C-C for your camera

Tell us your camera, field of view and working distance, and we will put together the lens, adapter tubes, attachments and illumination with a quotation.
