12.5X zoom lens · Motorized

PMS-Z125M-CH12M

12.5X Motorized Zoom Lens with Coaxial Illumination and 12 mm Motorized Fine Focus

  • Optical magnification: 0.58× – 7.5×
  • Zoom ratio: 12.5:1
  • Working distance: 70 to 80 mm (± 2 mm)
  • Max. sensor size: 2/3 inch
  • Mount: C-mount
  • Zoom: Motorized

Premium zoom optics, without the premium price.

Already have a quote for a zoom lens? Send it to us.

Will it suit your camera? Check it in the zoom lens selector.

0.58× – 7.5×

Optical magnification

12.5:1

Zoom ratio

70 to 80 mm (± 2 mm)

Working distance

2/3 inch

Max. sensor size

PMS-Z125M-CH12M 12.5X Motorized Zoom Lens with Coaxial Illumination and 12 mm Motorized Fine Focus

Overview

About the PMS-Z125M-CH12M

  • Optical magnification 0.58× to 7.5×, magnification ratio 12.5:1
  • High resolution, low distortion and a high numerical aperture
  • Large field of view on 2/3-inch cameras
  • Compact structure, easy to assemble and install

Features

  • Optical magnification 0.58× to 7.5×, magnification ratio 12.5:1
  • High resolution, low distortion and a high numerical aperture
  • Large field of view on 2/3-inch cameras
  • Compact structure, easy to assemble and install

Applications

  • Semiconductor
  • Automation
  • Electronic communication

Motorized control

An integrated motorized control system suits all of these zoom lenses: it drives one or two axes over RS232 or USB, and the underlying software code is supplied for OEM platforms.

Technical Specifications

PMS-Z125M-CH12M Specifications

General

Optical magnification0.58× – 7.5×
Zoom ratio12.5:1
Working distance70 to 80 mm (± 2 mm)
Max. sensor size2/3 inch
MountC-mount
ZoomMotorized
Fine focus12 mm, motorized
IlluminationCoaxial
Operating environment−10 °C to +50 °C, 30 to 80 % RH, non-condensing

Optical performance

MagnificationDepth of field (mm)N.A.F-numberResolution (µm)TV distortion
0.58×2.750.02512.5130.050%
0.6×2.670.02512.5130.050%
1.0×0.950.04311.857.80.002%
1.5×0.430.06311.955.30.010%
2.0×0.270.07413.654.530.020%
2.5×0.20.08215.34.090.003%
3.0×0.150.0916.53.730.020%
3.5×0.120.09718.43.460.20%
4.0×0.10.119.93.360.018%
4.5×0.0810.1120.43.050.020%
5.0×0.0730.1122.453.050.010%
5.5×0.0660.1122.73.050.010%
6.0×0.0610.1126.83.050.001%
6.5×0.0560.1129.43.050.010%
7.0×0.0520.1131.73.050.005%
7.5×0.050.1133.93.050.005%

Field of view (mm), diagonal × horizontal × vertical

Magnification2/3" sensor
0.58×18.97 × 15.17 × 11.38
0.6×18.33 × 14.67 × 11.00
1.0×11.00 × 8.80 × 6.60
1.5×7.33 × 5.87 × 4.40
2.0×5.50 × 4.40 × 3.30
2.5×4.40 × 3.52 × 2.64
3.0×3.67 × 2.93 × 2.20
3.5×3.14 × 2.51 × 1.89
4.0×2.75 × 2.20 × 1.65
4.5×2.44 × 1.96 × 1.47
5.0×2.20 × 1.76 × 1.32
5.5×2.00 × 1.60 × 1.20
6.0×1.83 × 1.47 × 1.10
6.5×1.69 × 1.35 × 1.02
7.0×1.57 × 1.26 × 0.94
7.5×1.47 × 1.17 × 0.88

Drawings

Dimensions and System Components

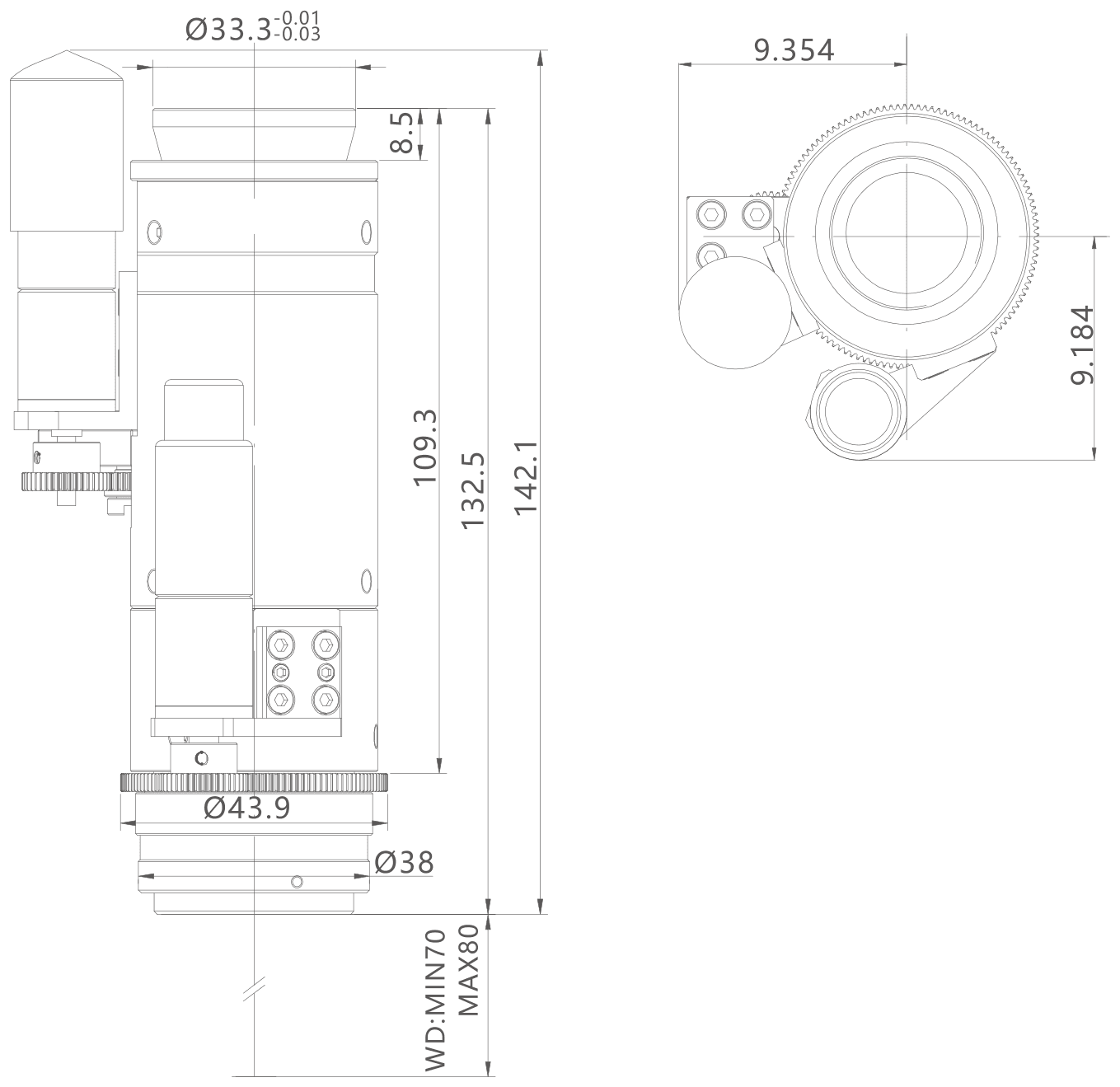

PMS-Z125M-CH12M dimension drawing
PMS-Z125M-CH12M dimension drawing (mm).
12.5X zoom lens system diagram
System diagram: TV adapter tubes, lens attachments, APO objectives with their coupler, LED illumination and the motorized controller box for each version.
Field of view of the 12.5X zoom lens with lens attachments and adapter tubes
Field of view and magnification with 0.25× to 2.0× lens attachments and 0.5×, 1.0× and 2.0× adapter tubes, for 2/3", 1/2" and 1/3" cameras. Values in brackets are theoretical; the image corners are dark there.

Datasheet

Full specification sheet for the PMS-Z125M-CH12M.
