Precisometer
12.5X linear zoom lens · Motorized, linear guide

PMS-L125

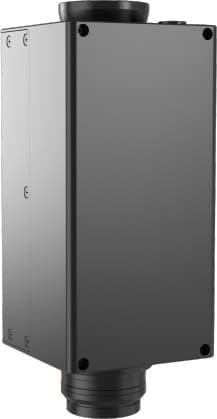

12.5X Linear Zoom Lens

12.5:1 motorized zoom lens on a linear guide: 0.58× to 7.5× optical magnification at a 77.4 ± 2 mm working distance, for sensors up to 2/3 inch. C-mount.

Premium zoom optics, without the premium price.

Already have a quote for a zoom lens? Send it to us.

Will it suit your camera? Check it in the zoom lens selector.

0.58× – 7.5×

Optical magnification

12.5:1

Zoom ratio

77.4 ± 2 mm

Working distance

2/3 inch

Max. sensor size

PMS-L125 12.5X Linear Zoom Lens

Overview

About the PMS-L125

Motorized zoom lenses with a built-in double guide rail: the linear guide motion system has high precision, high efficiency and a low friction coefficient, which improves the optical performance, accuracy, stability and service life of the lens. 0.58× to 7.5× (12.5:1) for sensors up to 2/3 inch.

Features

  • Zoom ratio up to 12.5×
  • High contrast: a core-adjustment method removes the effect of optical element centering errors on image contrast
  • Fast and accurate zooming

Applications

  • Biology
  • Electronics
  • Semiconductor
  • Machine vision
  • Other high-precision industries

Technical Specifications

PMS-L125 Specifications

General

Optical magnification0.58× – 7.5×
Zoom ratio12.5:1
Working distance77.4 ± 2 mm
Max. sensor size2/3 inch
MountC-mount
ZoomMotorized, linear guide
Operating environment−10 °C to +50 °C, 30 to 80 % RH, non-condensing

Optical performance

MagnificationDepth of field (mm)N.A.F-numberResolution (µm)TV distortion
0.58×2.750.02512.5130.050%
0.6×2.670.02512.5130.050%
1.0×0.950.04311.857.80.002%
1.5×0.430.06311.955.30.010%
2.0×0.270.07413.654.530.020%
2.5×0.20.08215.34.090.003%
3.0×0.150.0916.53.730.020%
3.5×0.120.09718.43.460.020%
4.0×0.10.119.93.360.018%
4.5×0.0810.1120.43.050.020%
5.0×0.0730.1122.453.050.010%
5.5×0.0660.1122.73.050.010%
6.0×0.0610.1126.83.050.001%
6.5×0.0560.1129.43.050.010%
7.0×0.0520.1131.73.050.005%
7.5×0.050.1133.93.050.005%

Field of view (mm), diagonal × horizontal × vertical

Magnification2/3" sensor
0.58×18.97 × 15.17 × 11.38
0.6×18.33 × 14.67 × 11.00
1.0×11.00 × 8.80 × 6.60
1.5×7.33 × 5.87 × 4.40
2.0×5.50 × 4.40 × 3.30
2.5×4.40 × 3.52 × 2.64
3.0×3.67 × 2.93 × 2.20
3.5×3.14 × 2.51 × 1.89
4.0×2.75 × 2.20 × 1.65
4.5×2.44 × 1.96 × 1.47
5.0×2.20 × 1.76 × 1.32
5.5×2.00 × 1.60 × 1.20
6.0×1.83 × 1.47 × 1.10
6.5×1.69 × 1.35 × 1.02
7.0×1.57 × 1.26 × 0.94
7.5×1.47 × 1.17 × 0.88

Drawings

Dimensions and System Components

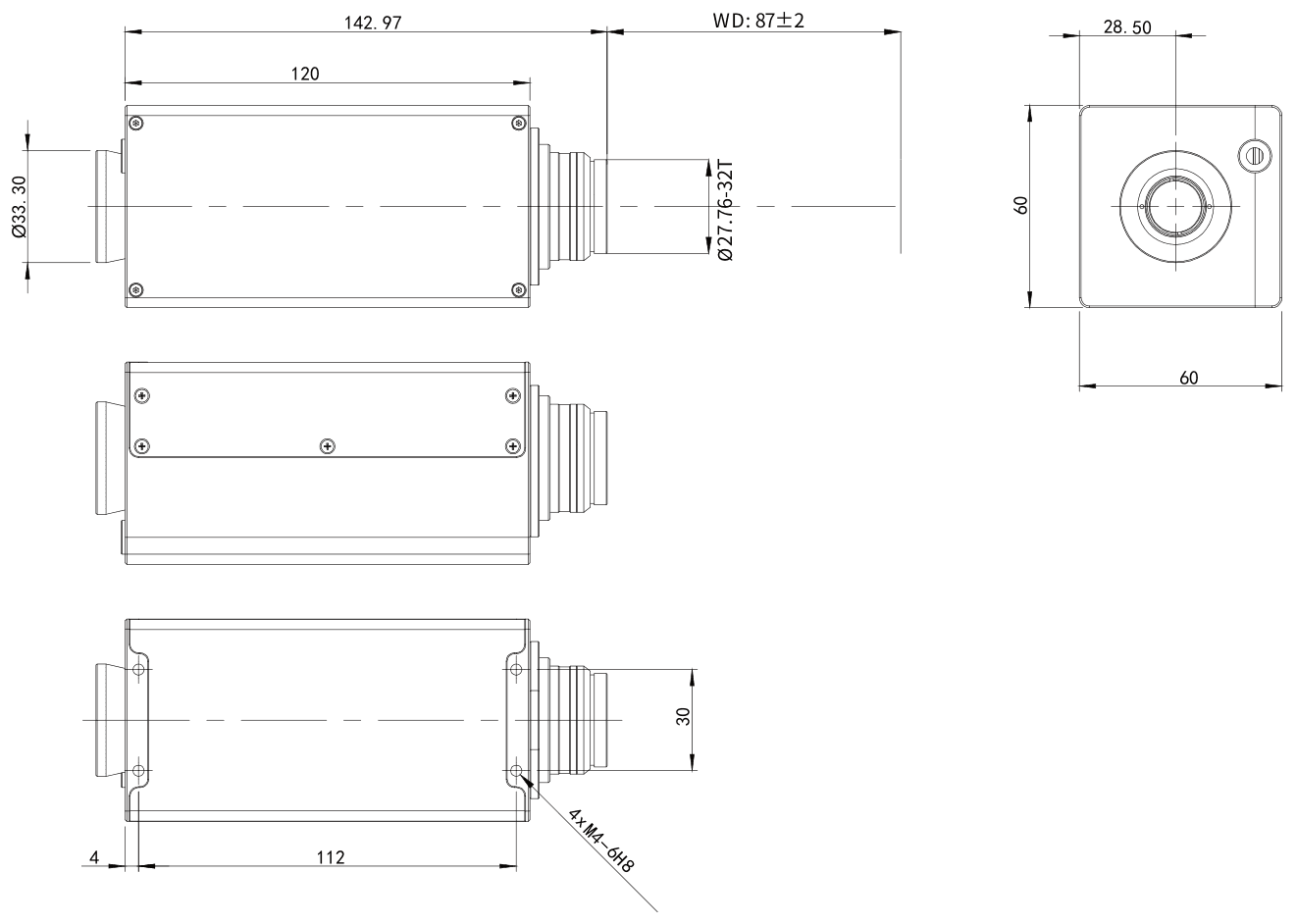

PMS-L125 dimension drawing
PMS-L125 dimension drawing (mm).

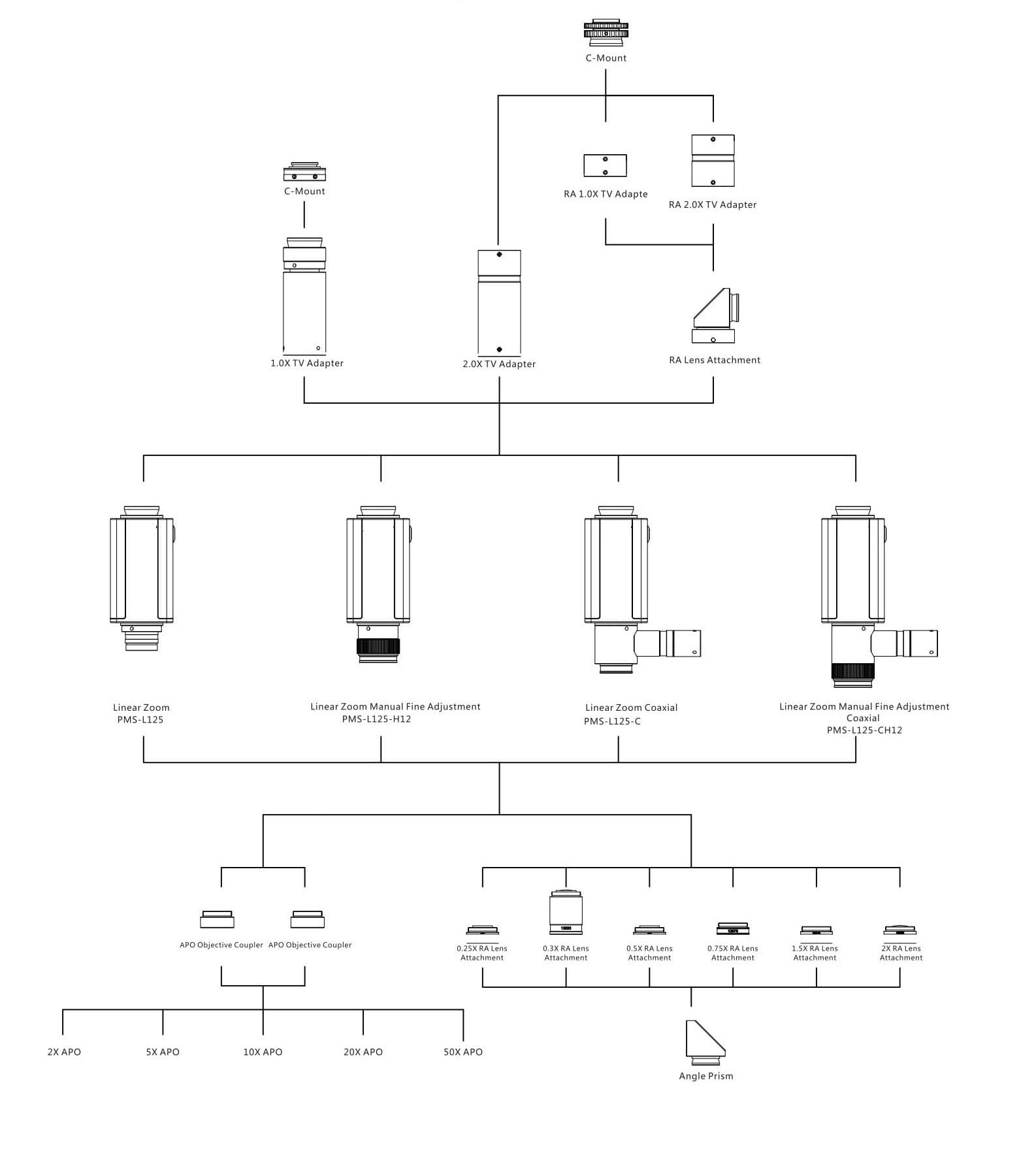

12.5X linear zoom lens system diagram
System diagram: TV adapters, right-angle adapters, APO objectives with their couplers, and lens attachments.

Datasheet

Full specification sheet for the PMS-L125.

PMS-L125 datasheet (PDF)

Same series

Other 12.5X linear zoom lenses

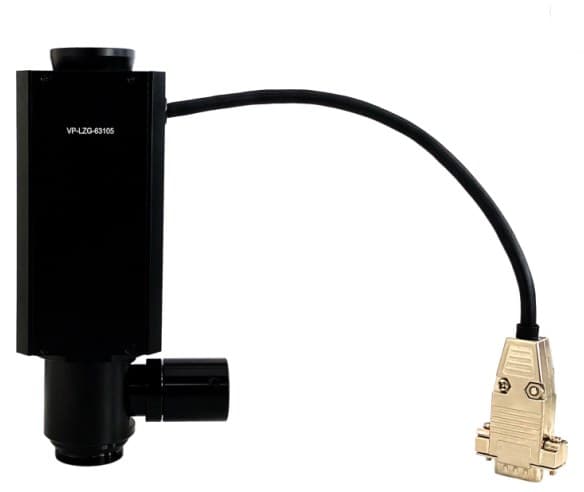

12.5X Linear Zoom Lens with Coaxial Illumination

PMS-L125-C

12.5X Linear Zoom Lens with Coaxial Illumination

View PMS-L125-C

All 12.5X Linear Zoom Lenses comparedAll zoom lenses

Configure the PMS-L125 for your camera

Tell us your camera, field of view and working distance, and we will put together the lens, adapter tubes, attachments and illumination with a quotation.
