Color · Autofocus camera
XFCAMTOP4K8MPC_MINI
- Sensor
- Sony IMX678(C) 1/1.8" (7.68×4.32 mm)
- Interface
- HDMI1.4 USB2.0 WiFi
- Resolution
- 8MP (3840×2160) 2.0 µm × 2.0 µm
- Frame Rate
- HDMI: 30 fps @ 4K USB: 30 fps @ 4K WiFi: 30 fps @ 4K
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX678(C) 1/1.8" (7.68×4.32 mm) |
|---|---|
| Max Resolution | 8MP (3840×2160) 2.0 µm × 2.0 µm |
| Resolution | 8MP (3840×2160) 2.0 µm × 2.0 µm |
Performance
| Frame Rate | HDMI: 30 fps @ 4K USB: 30 fps @ 4K WiFi: 30 fps @ 4K |
|---|
Interface & Connectivity
| Output Frame Rate | HDMI: 30 fps @ 4K USB: 30 fps @ 4K WiFi: 30 fps @ 4K |
|---|---|
| Output Interface | HDMI1.4 USB2.0 WiFi |
| Interface | HDMI1.4 USB2.0 WiFi |
Other Published Specifications
| Model | XFCAMTOP4K8MPC_MINI |
|---|---|
| Autofocus Accuracy | 0.01 mm |
| Storage Format | Image: JPEG, TIFF Video: MP4 container with H.264 encoding |
| Key Features | 4K Starvis2 |
Technical Files & Images

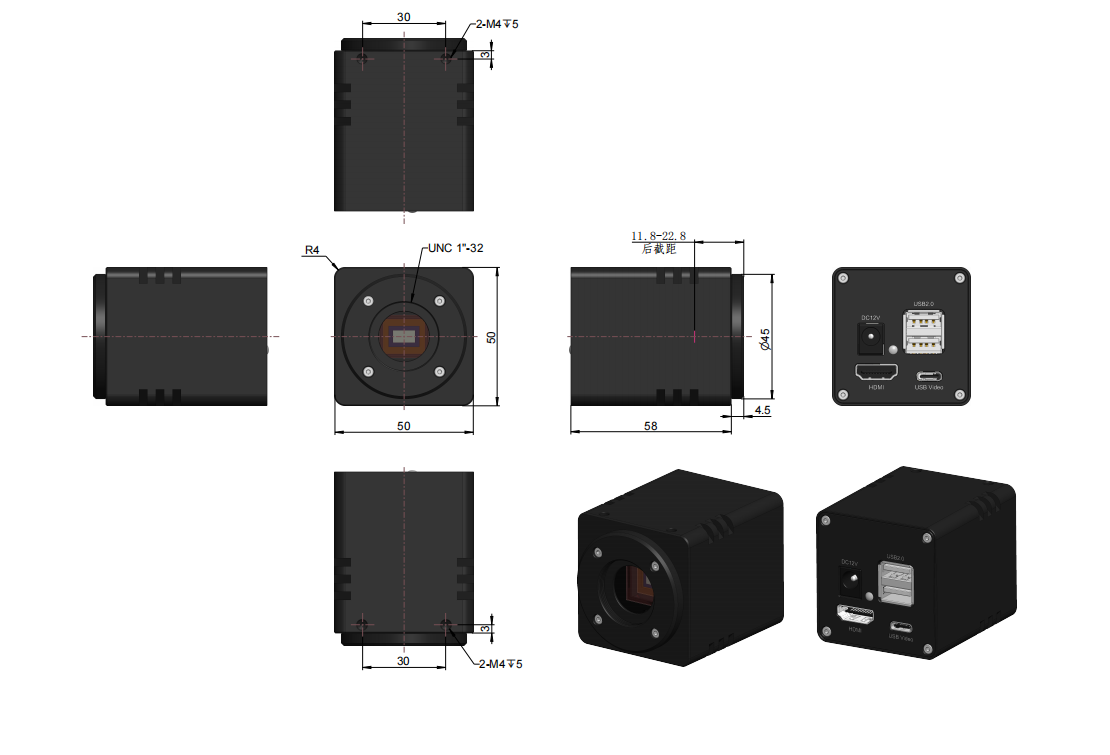

Technical images (2)
Related Products
| Selection parameter | XFCAMTOP4K8MPC_MINI (current) | AIOCAM4K8MPASame IMX678 sensor | AIOCAMTOP4K8MPCSame IMX678 sensor | AIOCAMW8MPASame IMX678 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX678(C) 1/1.8" (7.68×4.32 mm) | Sony IMX678(C) 1/1.8" (7.68×4.32 mm) | Sony IMX678(C) 1/1.8" (7.68×4.32 mm) | Sony IMX678(C) 1/1.8" (7.68×4.32 mm) |
| Image type | Color | Color | Color | Color |
| Resolution | 8MP (3840×2160) 2.0 µm × 2.0 µm | 8MP | 8MP (3840×2160) | 8MP (3840×2160) |
| Frame / line rate | HDMI: 30 fps @ 4K USB: 30 fps @ 4K WiFi: 30 fps @ 4K | 60 fps @ 3840×2160 | HDMI: 30 fps @ 3840×2160; USB2.0: 30 fps @ 3840×2160; Wi-Fi: 30 fps @ 3840×2160 | 45 fps @ 3840×2160; 60 fps @ 1920×1080 |
| Interface | HDMI1.4 USB2.0 WiFi | HDMI USB3 Wi-Fi | HDMI1.4 USB2.0 Wi-Fi | HDMI2.0 USB3.2 NETWORK Wi-Fi6 |
