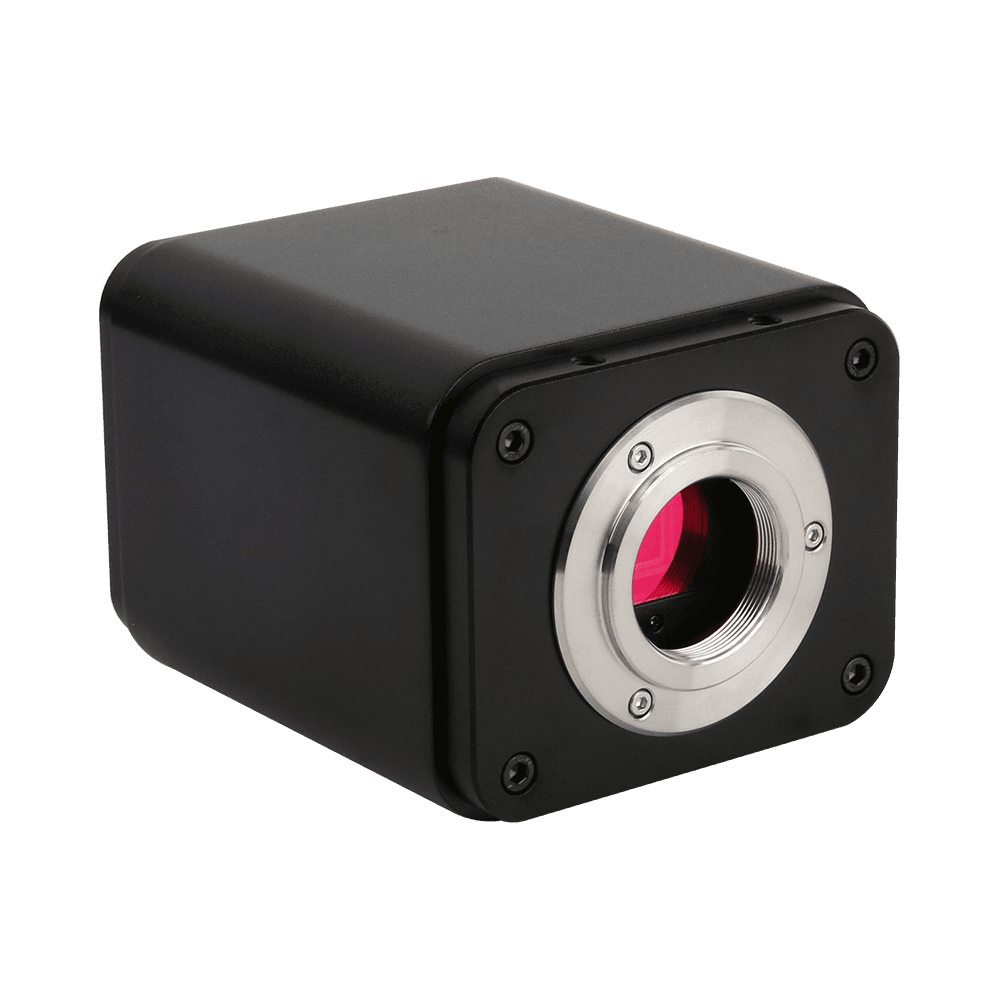

HDMI/USB3/LAN/Wi-Fi Multi-Output CMOS Camera
X8CAM4K22MPA provides Sony Starvis imaging, HDMI 4K, USB3.0, Gigabit Ethernet, XCamView control and local storage.
Application context
X8CAM4K22MPA: The Sony IMX571 (C) sensor, 22 MP (6240 × 3512) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 15 Hz @ 6240×3512, 30 Hz @ 3840×2160, 60 Hz @ 1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
X8CAM4K22MPA: The Sony IMX571 (C) sensor, 22 MP (6240 × 3512) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 15 Hz @ 6240×3512, 30 Hz @ 3840×2160, 60 Hz @ 1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
20 specification rows
The X8CAM4K22MPA is an intelligent imaging camera in the X8CAM4K series, built around a Sony IMX571 (C) sensor, 22 MP (6240 × 3512) resolution, 3.76 µm × 3.76 µm pixels, frame rates up to 15 Hz @ 6240×3512, 30 Hz @ 3840×2160, 60 Hz @ 1920×1080, a HDMI2.0, USB3.0, LAN, Wi-Fi interface. It suits hdmi/usb3/lan/wi-fi multi-output cmos camera where reliable imaging performance and interface compatibility matter.
| Product Model | X8CAM4K22MPA |
|---|---|
| Product Series | HDMI/USB3/LAN/Wi-Fi Multi-Output CMOS Camera |
| Sensor Model | Sony IMX571 (C) |
|---|---|
| Sensor Size | 1.7" (23.46 × 13.21 mm) |
| Diagonal | 26.9 mm (calculated) |
| Pixel Size | 3.76 µm × 3.76 µm |
| Resolution | 22 MP (6240 × 3512) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Frame Rate | 15 Hz @ 6240×3512, 30 Hz @ 3840×2160, 60 Hz @ 1920×1080 |
|---|---|
| Output Interfaces | HDMI2.0, USB3.0, LAN, Wi-Fi |
| Lens Mount | M42 |
| Storage Support | SD Card, USB Flash Drive |
| Software Support | XCamView, ToupView, ToupLite |
| Power Supply | DC 12 V / 1 A |
|---|---|
| Dimensions | 130 × 120 × 60 mm |
| Weight | ≈1.0 kg |
| Operating Temperature | 10 °C ~ +50 °C |
|---|
| OS Support | Windows, macOS, Linux |
|---|---|
| Certification | CE, FCC, RoHS |
System integration
Use these checks to connect X8CAM4K22MPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: M42. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX571 (C) · Resolution: 22 MP (6240 × 3512). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 15 Hz @ 6240×3512, 30 Hz @ 3840×2160, 60 Hz @ 1920×1080 · Interface: HDMI2.0, USB3.0, LAN, Wi-Fi. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare X8CAM4K22MPA with the closest available models in the X8CAM4K family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | X8CAM4K22MPA (current) | X8CAM4K16MPA | X8CAM4K8MPA |
|---|---|---|---|
| Sensor | Sony IMX571 (C) | Sony IMX383 (C) | Sony IMX334 (C) |
| Resolution | 22 MP (6240 × 3512) | 16 MP (5440 × 3060) | 8 MP (3840 × 2160) |
| Sensor size | 1.7" (23.46 × 13.21 mm) | 1/1.1" (13.06 × 7.34 mm) | 1/1.8" (7.68 × 4.32 mm) |
| Pixel size / frame rate | 3.76 µm × 3.76 µm | 2.4 µm × 2.4 µm | 2.0 µm × 2.0 µm |
The IMX571 appears in 16 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the X8CAM4K22MPA with other X8CAM4K models and intelligent imaging cameras in the range.
