Scientific Camera

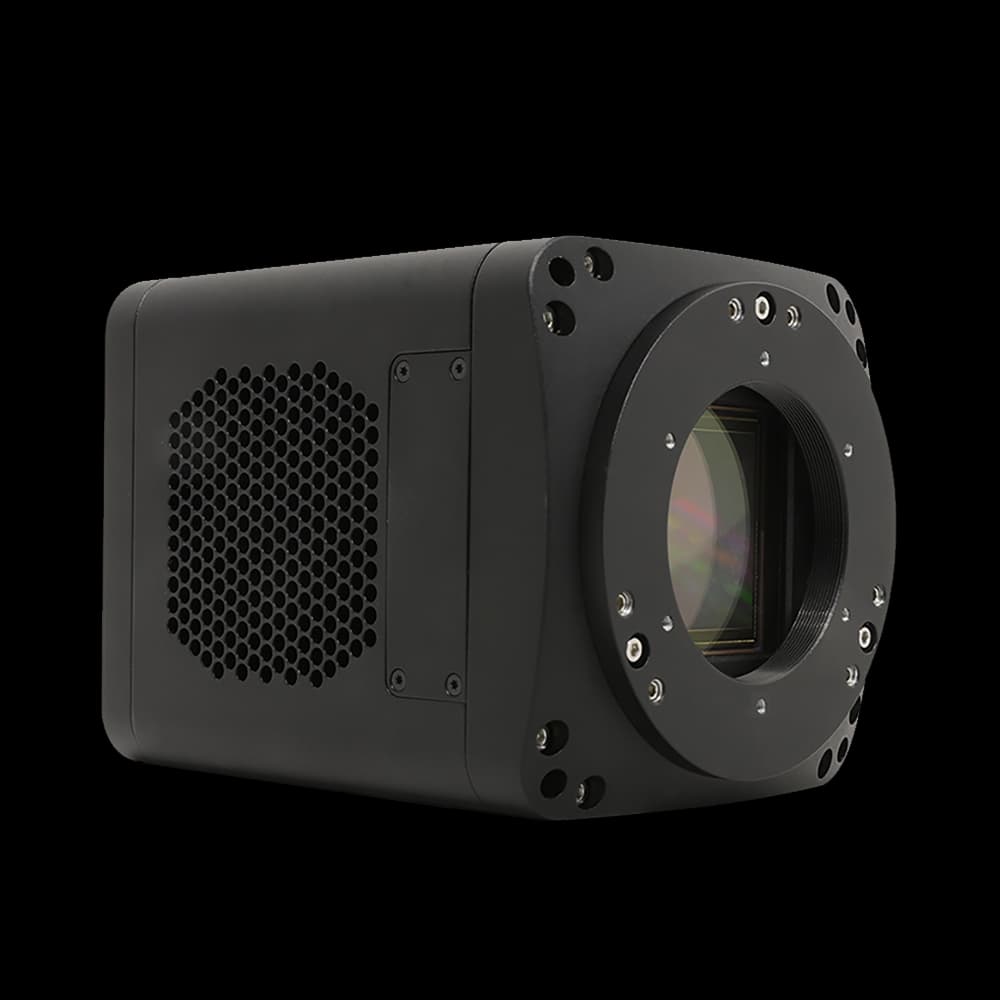

SS21MMA-U3-CXP
SS21MMA-U3-CXP Scientific Camera with GSPRINT4521-AVM (sCMOS) sensor, 21.0 MP (5120×4096) for professional imaging.
- Sensor
- GSPRINT4521-AVM (sCMOS)
- Resolution
- 21.0 MP (5120×4096)
- Pixel Size
- 4.5 µm × 4.5 µm
- Frame Rate
- Available on request
- Interface
- USB3.0/CXP
Specifications
SS21MMA-U3-CXP
24 specification rows
Specifications
| Model | SS21MMA-U3-CXP |
|---|---|
| Sensor | GSPRINT4521-AVM (sCMOS) |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 21.0 MP (5120×4096) |
| Sensor Size | 23.04 mm × 18.432 mm |
| Sensor Diagonal | 1.8" (29.51 mm) |
| Pixel Size | 4.5 µm × 4.5 µm |
Performance Parameters
| Frame Rate | Available on request |
|---|---|
| Bit Depth | 8/10/12-bit |
| Dynamic Range | Available on request |
| Sensitivity | Available on request |
Interface Parameters
| GPIO | 1× opto-isolated input, 1× opto-isolated output, 2× non-isolated I/O ports |
|---|---|
| Lens Mount | Available on request |
| Data Interface | USB3.0/CXP |
| Power Supply | 19 V DC |
Physical Parameters
| Dimensions | Available on request |
|---|---|
| Weight | Available on request |
Environmental Parameters
| Operating Temperature | 30 °C to +60 °C |
|---|---|
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | Available on request |
Other Parameters
| OS Support | Windows/Linux |
|---|---|
| Certification | Available on request |
