Scientific Camera

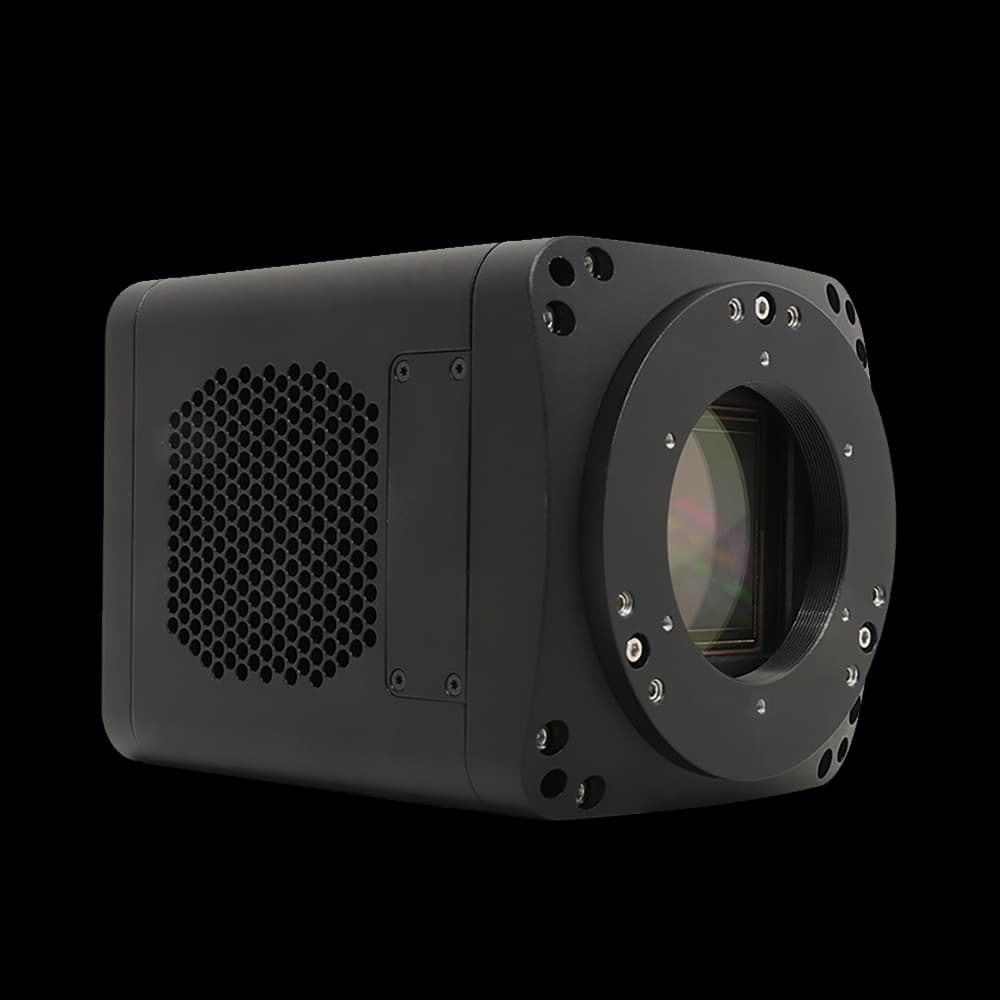

SR557MMA Scientific Camera with VPS2163A (sCMOS) sensor, 557.1 MP (20480×27200) for professional imaging.
Application context
SR557MMA: The VPS2163A (sCMOS) sensor, 557.1 MP (20480×27200) resolution, and 0.5 µm × 0.5 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 0.17 fps @ 20480×27200 (≈6 s/frame) frame-rate listing also sets the fastest full-frame acquisition regime.
SR557MMA: The VPS2163A (sCMOS) sensor, 557.1 MP (20480×27200) resolution, and 0.5 µm × 0.5 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 0.17 fps @ 20480×27200 (≈6 s/frame) frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
24 specification rows
The SR557MMA is a scientific camera in the SR series, built around a VPS2163A (sCMOS) sensor, 557.1 MP (20480×27200) resolution, 0.5 µm × 0.5 µm pixels, frame rates up to 0.17 fps @ 20480×27200 (≈6 s/frame), a USB 3.0 (5 Gbps) interface. It suits scientific camera where reliable imaging performance and interface compatibility matter.
| Model | SR557MMA |
|---|---|
| Sensor | VPS2163A (sCMOS) |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Resolution | 557.1 MP (20480×27200) |
| Sensor Size | 10.24 mm × 13.6 mm |
| Sensor Diagonal | 1" (17.02 mm) |
| Pixel Size | 0.5 µm × 0.5 µm |
| Frame Rate | 0.17 fps @ 20480×27200 (≈6 s/frame) |
|---|---|
| Bit Depth | 8/10-bit |
| Dynamic Range | Available on request |
| Sensitivity | Available on request |
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× TTL programmable I/O |
|---|---|
| Lens Mount | C (1.1″) / F / M42 (model dependent) |
| Data Interface | USB 3.0 (5 Gbps) |
| Power Supply | 12 V DC |
| Dimensions | Available on request |
|---|---|
| Weight | Available on request |
| Operating Temperature | 0 °C to +40 °C (recommended, adjustable based on thermal design) |
|---|---|
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | Available on request |
| Operating System | Windows/Linux |
|---|---|
| Certification | Available on request |
System integration
Use these checks to connect SR557MMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C (1.1″) / F / M42 (model dependent). Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: VPS2163A (sCMOS) · Resolution: 557.1 MP (20480×27200). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 0.17 fps @ 20480×27200 (≈6 s/frame) · Interface: USB 3.0 (5 Gbps). Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1× optically isolated input, 1× optically isolated output, 2× TTL programmable I/O. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
