Scientific Camera

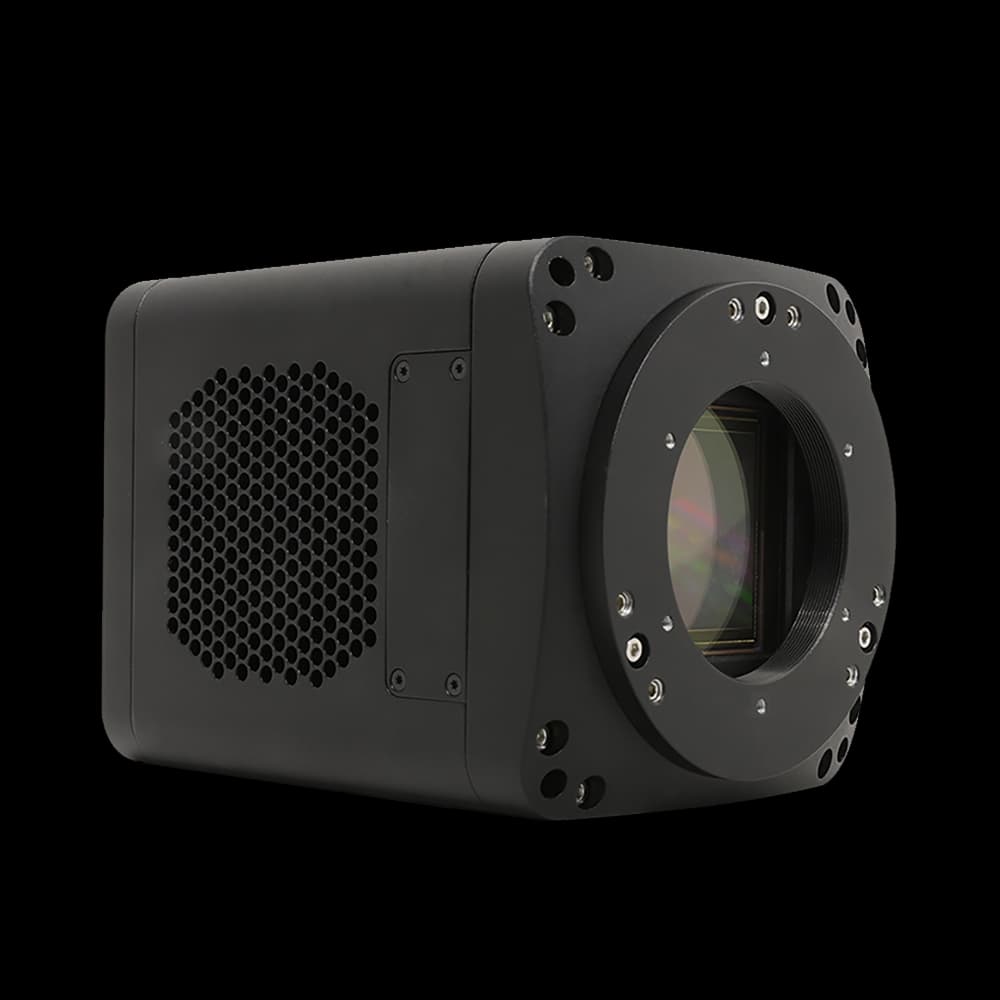

sMAX04BM sMAX scientific sCMOS camera offers GSENSE imaging, deep cooling, anti-fog design, USB3 or Camera Link output and SDK support.
Application context
sMAX04BM: The GSENSE2020BSI (sCMOS) sensor, 4.2 MP (2048×2048) resolution, and 6.5 µm × 6.5 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 72.5 fps @ 2048×2048; 72.5 fps @ 1024×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
sMAX04BM: The GSENSE2020BSI (sCMOS) sensor, 4.2 MP (2048×2048) resolution, and 6.5 µm × 6.5 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 72.5 fps @ 2048×2048; 72.5 fps @ 1024×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
25 specification rows
The sMAX04BM is a scientific camera in the sMAX series, built around a GSENSE2020BSI (sCMOS) sensor, 4.2 MP (2048×2048) resolution, 6.5 µm × 6.5 µm pixels, frame rates up to 72.5 fps @ 2048×2048; 72.5 fps @ 1024×1024, a USB 3.0 interface. It suits scientific camera where reliable imaging performance and interface compatibility matter.

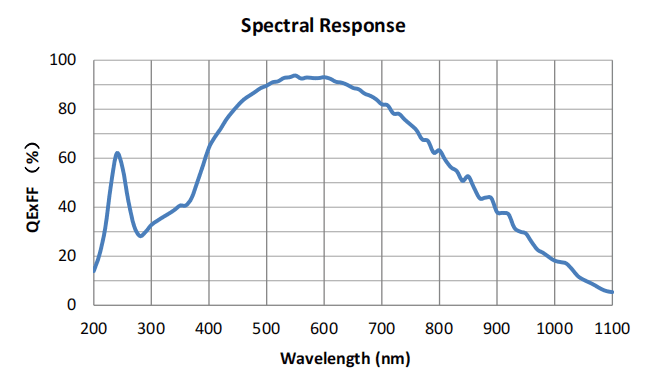

| Model | sMAX04BM |
|---|---|
| Sensor | GSENSE2020BSI (sCMOS) |
| Shutter Type | Rolling shutter / global reset |
| Color Type | Monochrome |
| Resolution | 4.2 MP (2048×2048) |
| Sensor Size | 13.31 mm × 13.31 mm |
| Sensor Diagonal | 4/3" (18.82 mm) |
| Pixel Size | 6.5 µm × 6.5 µm |
| Frame Rate | 72.5 fps @ 2048×2048; 72.5 fps @ 1024×1024 |
|---|---|
| Exposure Time | 12 µs ~ 1 h |
| Bit Depth | 8-bit / 11-bit / 12-bit / 16-bit |
| Dynamic Range | 61.38 dB (11-bit); 59.73 dB (HCG, 12-bit) / 67.17 dB (LCG, 12-bit); HDR 91.83 dB (11HL) / 86.02 dB (12HL) |
| Sensitivity | 1.1×10⁸ e⁻/((W/m²)·s) @ 550 nm |
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O ports |
|---|---|
| Lens Mount | C-mount |
| Data Interface | USB 3.0 |
| Power Supply | 12 V DC |

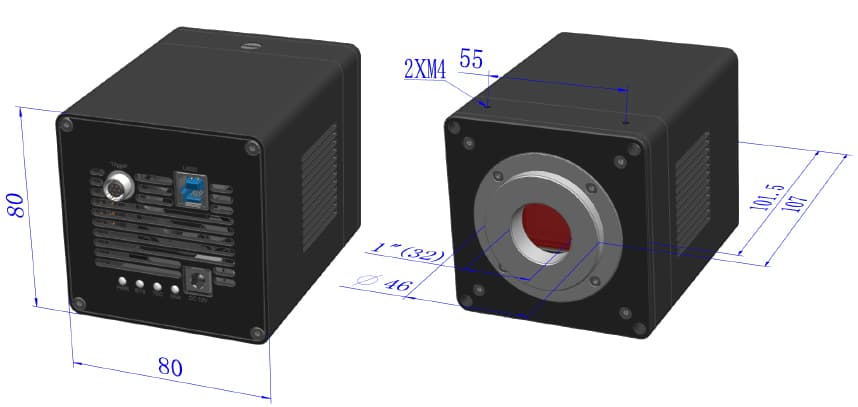

| Dimensions | 80 mm × 80 mm × 101.5 mm |
|---|---|
| Weight | 860 g |
| Operating Temperature | 30 °C to +60 °C |
|---|---|
| Operating Humidity | 20%–80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | 20%–95% (non-condensing) |
| Operating System | Windows/Linux |
|---|---|
| Certification | Available on request |
System integration
Use these checks to connect sMAX04BM to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: GSENSE2020BSI (sCMOS) · Resolution: 4.2 MP (2048×2048). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 72.5 fps @ 2048×2048; 72.5 fps @ 1024×1024 · Interface: USB 3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 61.38 dB (11-bit); 59.73 dB (HCG, 12-bit) / 67.17 dB (LCG, 12-bit); HDR 91.83 dB (11HL) / 86.02 dB (12HL). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare sMAX04BM with the closest available models in the sMAX family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | sMAX04BM (current) | sMAX04BM-CL100 | sMAX04BM-U100 |
|---|---|---|---|
| Sensor | GSENSE2020BSI (sCMOS) | GSENSE2020BSI (sCMOS) | GSENSE2020BSI (sCMOS) |
| Resolution | 4.2 MP (2048×2048) | 4.2 MP (2048×2048) | 4.2 MP (2048×2048) |
| Sensor size | 13.31 mm × 13.31 mm | 13.31 mm × 13.31 mm | 13.31 mm × 13.31 mm |
| Pixel size / frame rate | 6.5 µm × 6.5 µm | 6.5 µm × 6.5 µm | 6.5 µm × 6.5 µm |
The GSENSE2020BSI appears in 10 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
