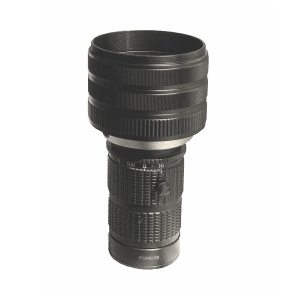

PMS-LLB025-8040M — 80 mm line-scan lens · 0.25× reference magnification
PMS-LLB025-8040M 80 mm line-scan lens · 0.25× reference magnification in the 8K line-scan lenses range. Focal length 80 mm; iris range 4.0~16.
- Focal Length
- 80 mm
- Iris Range
- 4.0~16
- Image Circle
- φ64 mm
- Lens Mount
- M72/F
Complete specifications
| Image Circle | φ64 mm |
|---|---|
| Compatible Camera Pixel Size | 5µm/7µm |
| Iris Range | 4.0~16 |
| Focal Length | 80 mm |
| Distortion | <0.02% |
| Relative Illumination | 80% |
| Lens Mount | M72/F |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Line-scan Class | 8K |
| Parameter | 0.2× | 0.25× | 0.35× |
|---|---|---|---|
| Working Distance (mm) | 470 | 385 | 295 |
| Conjugate Distance (mm) | 614 | 533 | 451 |

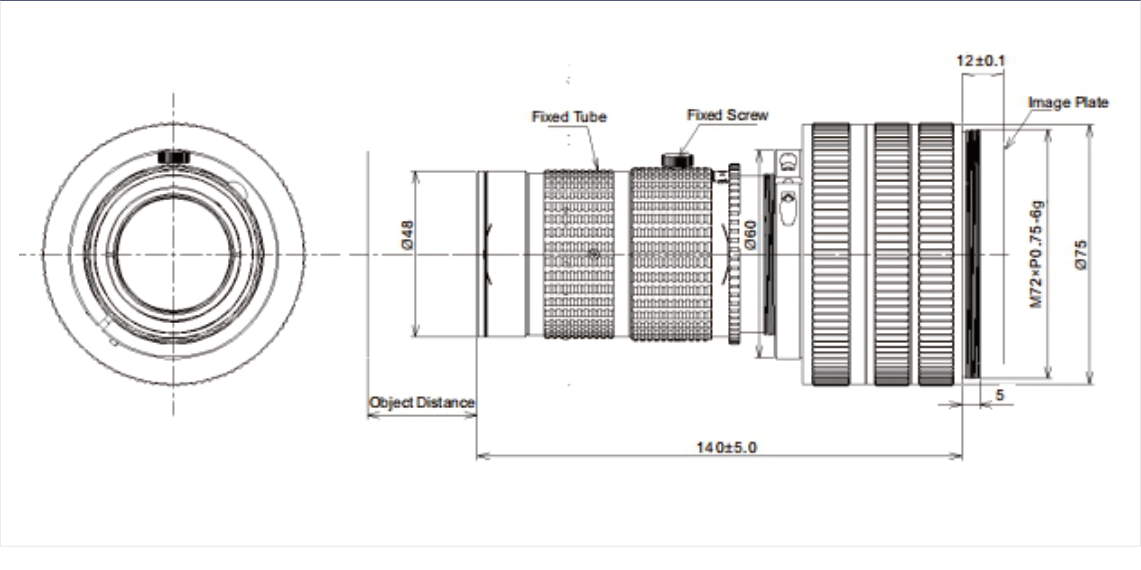

Technical drawings
