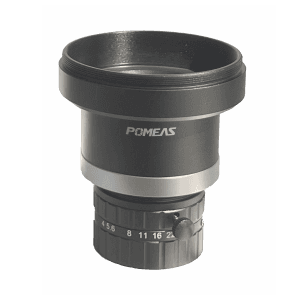

PMS-LLB01-6040M — 60 mm line-scan lens · 0.1× reference magnification
PMS-LLB01-6040M 60 mm line-scan lens · 0.1× reference magnification in the 8K line-scan lenses range. Focal length 60 mm; iris range 4.0~22.
- Focal Length
- 60 mm
- Iris Range
- 4.0~22
- Image Circle
- φ64 mm
- Lens Mount
- M42/M58/M72/F
Complete specifications
| Image Circle | φ64 mm |
|---|---|
| Compatible Camera Pixel Size | 7µm |
| Iris Range | 4.0~22 |
| Focal Length | 60 mm |
| Distortion | <0.05% |
| Relative Illumination | 60% |
| Lens Mount | M42/M58/M72/F |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Line-scan Class | 8K |
| Parameter | 0.03× | 0.1× | 0.18× |
|---|---|---|---|
| Working Distance (mm) | 2050 | 635 | 370 |
| Conjugate Distance (mm) | 2182 | 723 | 462 |

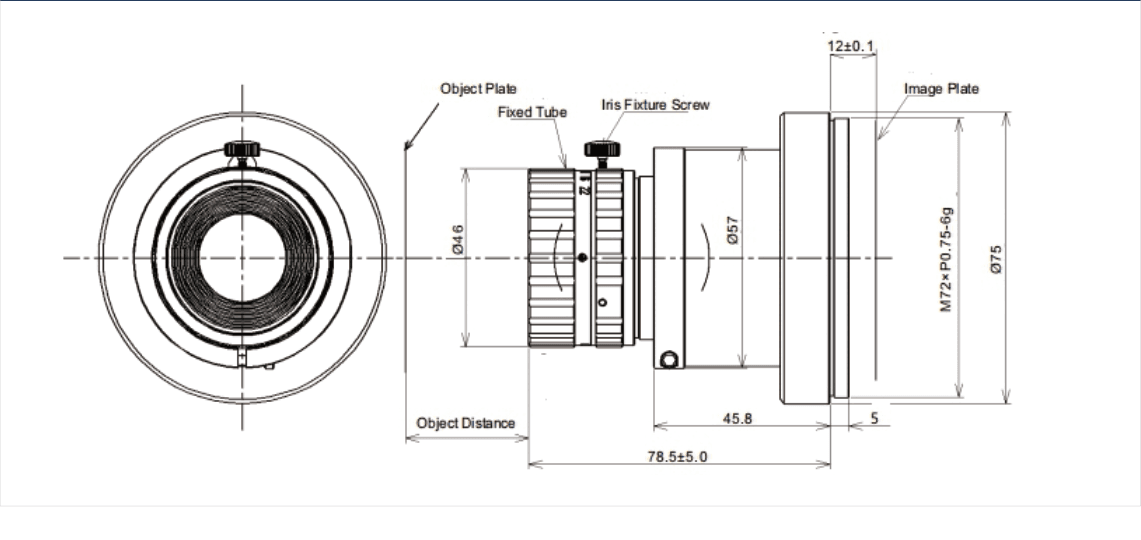

Technical drawings
