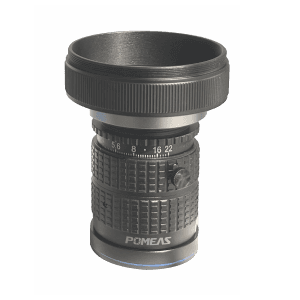

PMS-LLB005-5040M — 50 mm line-scan lens · 0.05× reference magnification
PMS-LLB005-5040M 50 mm line-scan lens · 0.05× reference magnification in the 8K line-scan lenses range. Focal length 50 mm; iris range 4.0~22.
- Focal Length
- 50 mm
- Iris Range
- 4.0~22
- Image Circle
- φ62 mm
- Lens Mount
- M42/M58/M72/F
Complete specifications
| Unit | mm |
|---|---|
| Image Circle | φ62 mm |
| Compatible Camera Pixel Size | 5µm/7µm |
| Iris Range | 4.0~22 |
| Focal Length | 50 mm |
| Distortion | <0.05% |
| Relative Illumination | 60% |
| Lens Mount | M42/M58/M72/F |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Line-scan Class | 8K |
| Parameter | 0.025× | 0.05× | 0.07× |
|---|---|---|---|
| Working Distance (mm) | 2000 | 1025 | 735 |
| Conjugate Distance (mm) | 2102 | 1133 | 839.2 |

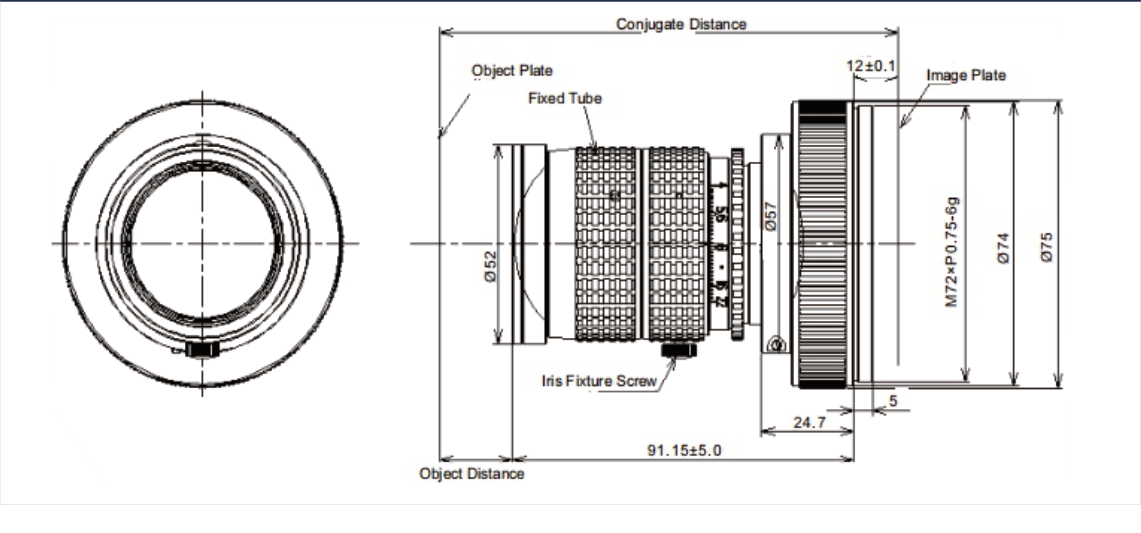

Technical drawings
