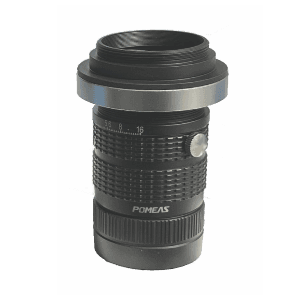

PMS-LLA015-2540M — 25 mm line-scan lens · 0.15× reference magnification
PMS-LLA015-2540M 25 mm line-scan lens · 0.15× reference magnification in the 4K line-scan lenses range. Focal length 25 mm; iris range 4.0~16.
- Focal Length
- 25 mm
- Iris Range
- 4.0~16
- Image Circle
- φ32 mm
- Lens Mount
- M42/M72/F
Complete specifications
| Image Circle | φ32 mm |
|---|---|
| Compatible Camera Pixel Size | 7µm |
| Iris Range | 4.0~16 |
| Focal Length | 25 mm |
| Distortion | <0.15% |
| Relative Illumination | 65% |
| Lens Mount | M42/M72/F |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Line-scan Class | 4K |
| Parameter | 0.125× | 0.15× | 0.175× |
|---|---|---|---|
| Working Distance (mm) | 187 | 158 | 130 |
| Conjugate Distance (mm) | 279.2 | 246 | 223.3 |

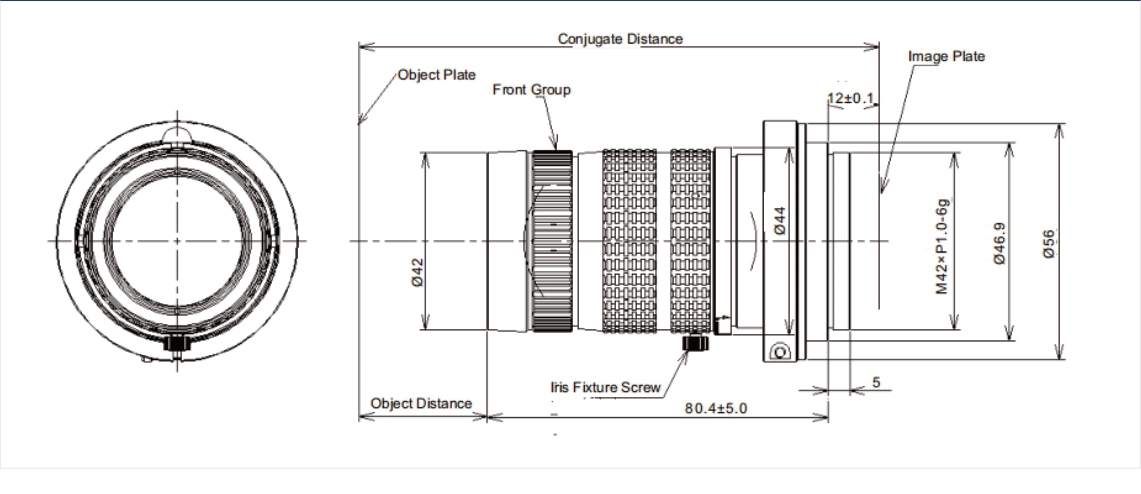

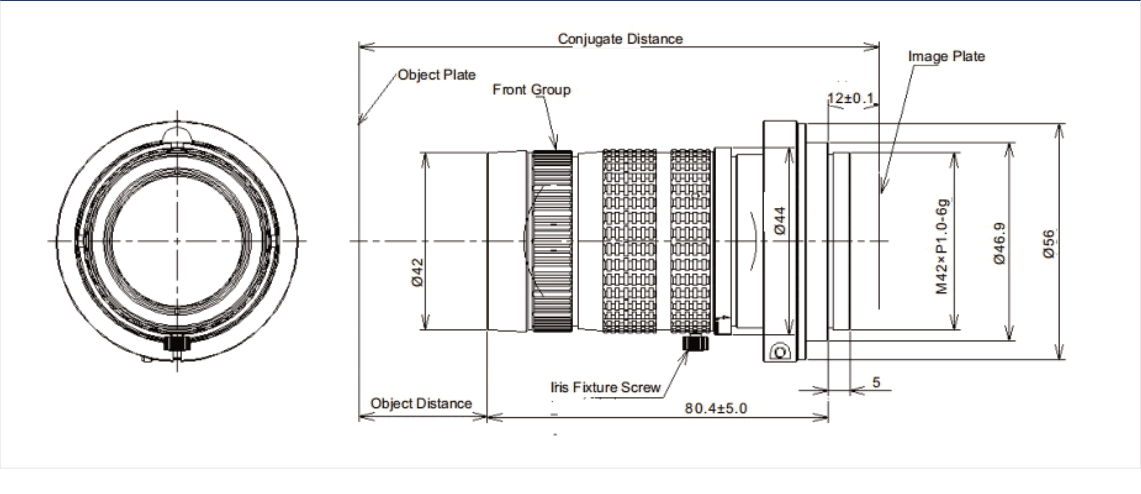

Technical drawings
