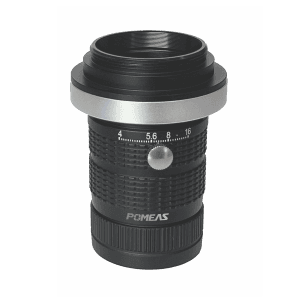

PMS-LLA003-2540M — 25 mm line-scan lens · 0.03× reference magnification
PMS-LLA003-2540M 25 mm line-scan lens · 0.03× reference magnification in the 4K line-scan lenses range. Focal length 25 mm; iris range 4.0~16.
- Focal Length
- 25 mm
- Iris Range
- 4.0~16
- Image Circle
- φ32 mm
- Lens Mount
- M42/M72
Complete specifications
| Image Circle | φ32 mm |
|---|---|
| Compatible Camera Pixel Size | 7µm |
| Iris Range | 4.0~16 |
| Focal Length | 25 mm |
| Distortion | <0.1% |
| Relative Illumination | 65% |
| Lens Mount | M42/M72 |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Line-scan Class | 4K |
| Parameter | 0.015× | 0.03× | 0.05× |
|---|---|---|---|
| Working Distance (mm) | 1740 | 870 | 520 |
| Conjugate Distance (mm) | 1826.4 | 952 | 607.3 |

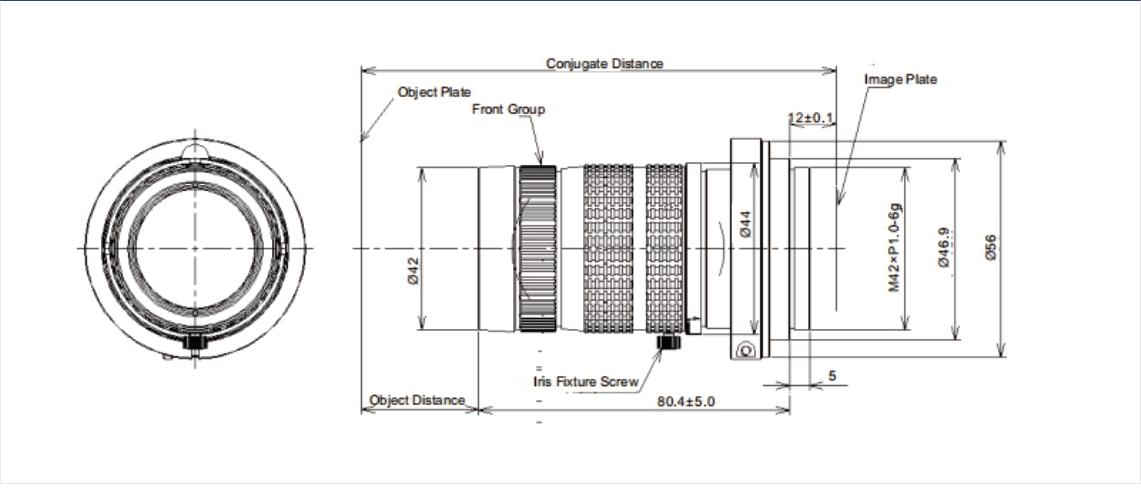

Technical drawings
