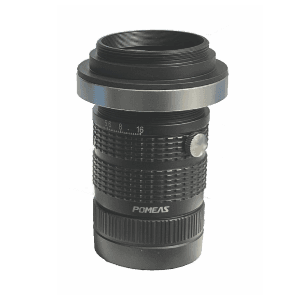

PMS-LLA01-3528M — 35 mm line-scan lens · 0.1× reference magnification
PMS-LLA01-3528M 35 mm line-scan lens · 0.1× reference magnification in the 4K line-scan lenses range. Focal length 35 mm; iris range 2.8~16.
- Focal Length
- 35 mm
- Iris Range
- 2.8~16
- Image Circle
- φ32 mm
- Lens Mount
- M42/M72/F
Complete specifications
| Image Circle | φ32 mm |
|---|---|
| Compatible Camera Pixel Size | 7µm |
| Iris Range | 2.8~16 |
| Focal Length | 35 mm |
| Distortion | <0.1% |
| Relative Illumination | 65% |
| Lens Mount | M42/M72/F |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Line-scan Class | 4K |
| Parameter | 0.05× | 0.1× | 0.15× |
|---|---|---|---|
| Working Distance (mm) | 700 | 350 | 240 |
| Conjugate Distance (mm) | 769 | 421 | 312 |

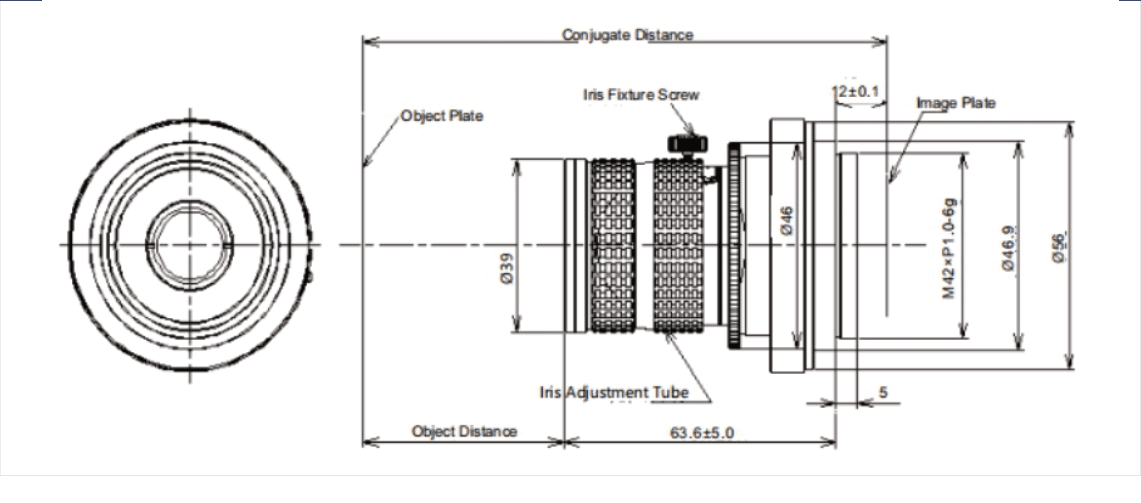

Technical drawings
