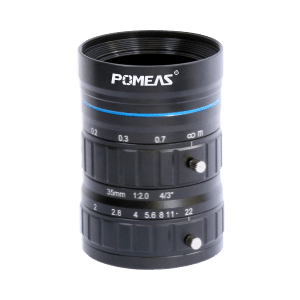

PMS-35XC12M — 35.0 mm FA lens
PMS-35XC12M 35.0 mm fa lens in the 12 MP · 4/3-inch FA lenses range. Focal length 35.0mm; iris range F2.0- F22. Focus range 0.2m-∞.
- Focal Length
- 35.0mm
- Iris Range
- F2.0- F22
- Sensor Format
- 4/3"
- Image Circle
- φ23mm
- Lens Mount
- C-mount
- Focus Range
- 0.2m-∞
Complete specifications
| Sensor Format | 4/3" |
|---|---|
| Sensor Dimensions | 17.6mm×13.2mm |
| Image Circle | φ23mm |
| Focal Length | 35.0mm |
| Iris Range | F2.0- F22 |
| Focus Range | 0.2m-∞ |
| Distortion | -0.52%@y = 11.5mm |
| Back Focal Length | 18mm |
| Lens Mount | C-mount |
| Filter Thread | M46.0×P0.75mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 4/3" | 29.7°×22.5° |
| Field of View (D×H×V) — 1" | 20.8°×15.8° |
| Field of View (D×H×V) — 2/3" | 14.4°×10.8° |
| Resolution Rating | 12 MP |

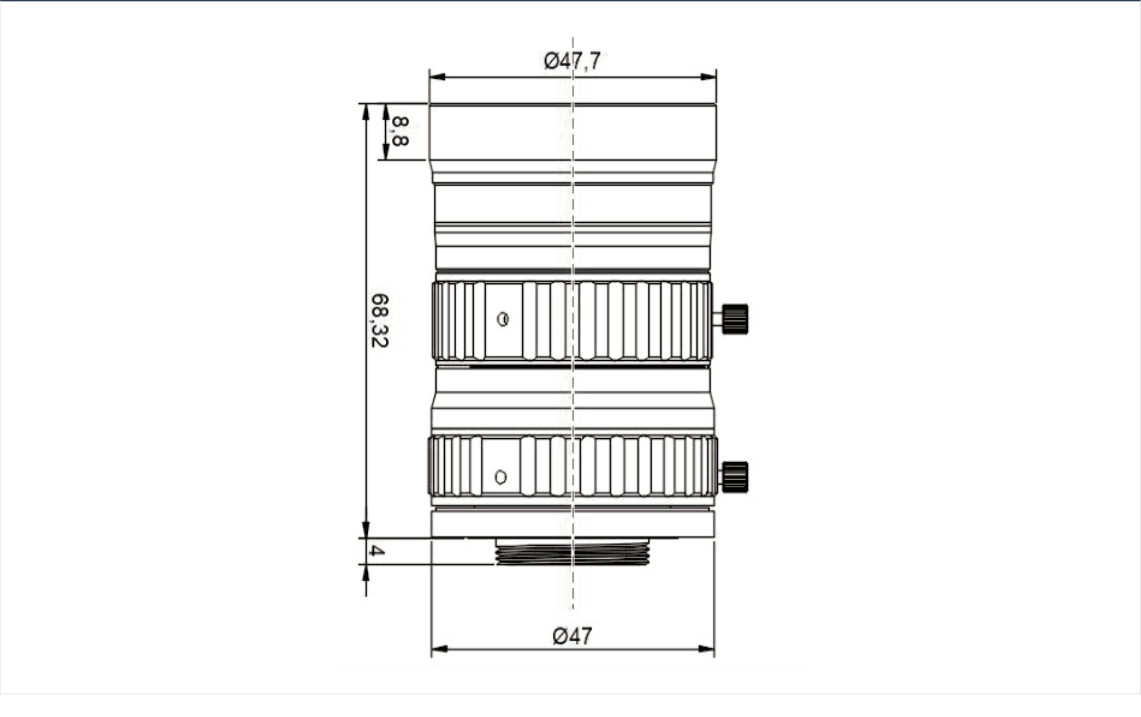

Technical drawings
