PMS-12XC12M — 12.0 mm FA lens
PMS-12XC12M 12.0 mm fa lens in the 12 MP · 4/3-inch FA lenses range. Focal length 12.0mm; iris range F2.0- F22. Focus range 0.15m-∞.
- Focal Length
- 12.0mm
- Iris Range
- F2.0- F22
- Sensor Format
- 4/3" (φ23mm)
- Lens Mount
- C-mount
- Focus Range
- 0.15m-∞
Complete specifications
| Sensor Format | 4/3" (φ23mm) |
|---|---|
| Focal Length | 12.0mm |
| Iris Range | F2.0- F22 |
| Focus Range | 0.15m-∞ |
| Lens Mount | C-mount |
| Back Focal Length | 18.8mm |
| Filter Thread | M77.0xP0.75mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 4/3" | 89.1°×75.6°×61.2° |
| Field of View (D×H×V) — 1" | 69.0° × 57.36° × 44.3° |
| Field of View (D×H×V) — 1/2" | 37.4° × 30.2° × 22.7° |
| Object Size (D×H×V) — 4/3" | 319.4 × 262.7 × 204.4mm |
| Object Size (D×H×V) — 1" | 235.5 × 189.9 × 143.2mm |
| Object Size (D×H×V) — 1/2" | 119.8 × 95.9 × 72.0mm |
| Resolution Rating | 12 MP |

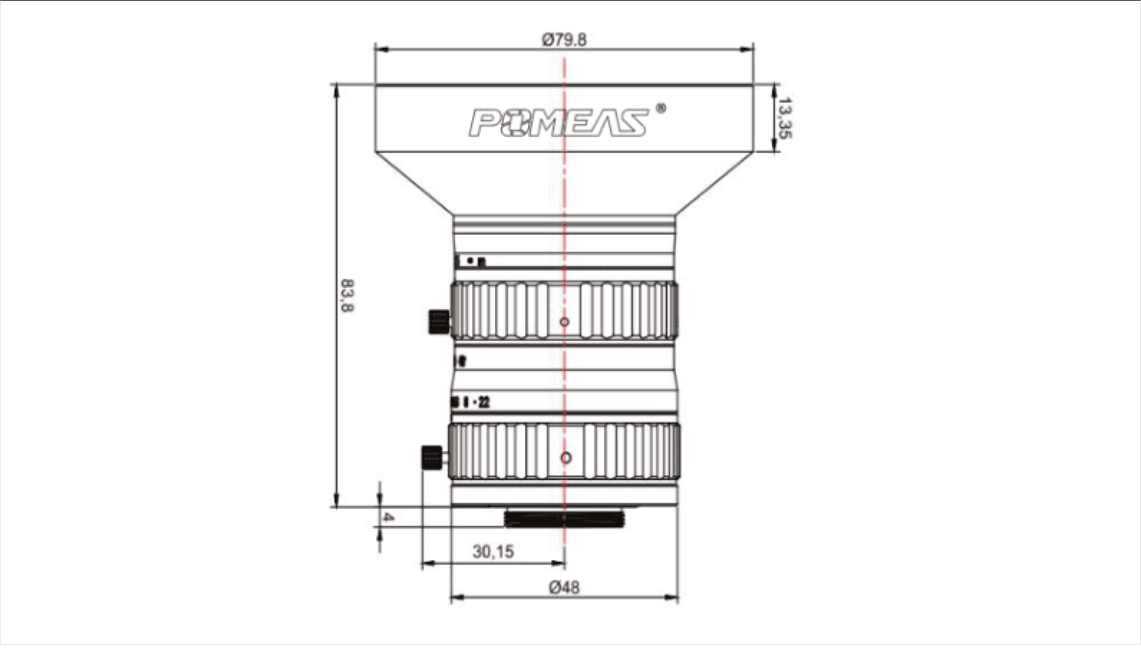

Technical drawings
