Camera finder

Build a camera shortlist

Showing cameras built around IMX993. Refine the shortlist with your application requirements.

646

Camera models

Cooled

216

Global shutter

Matched

Results

7 cameras matched

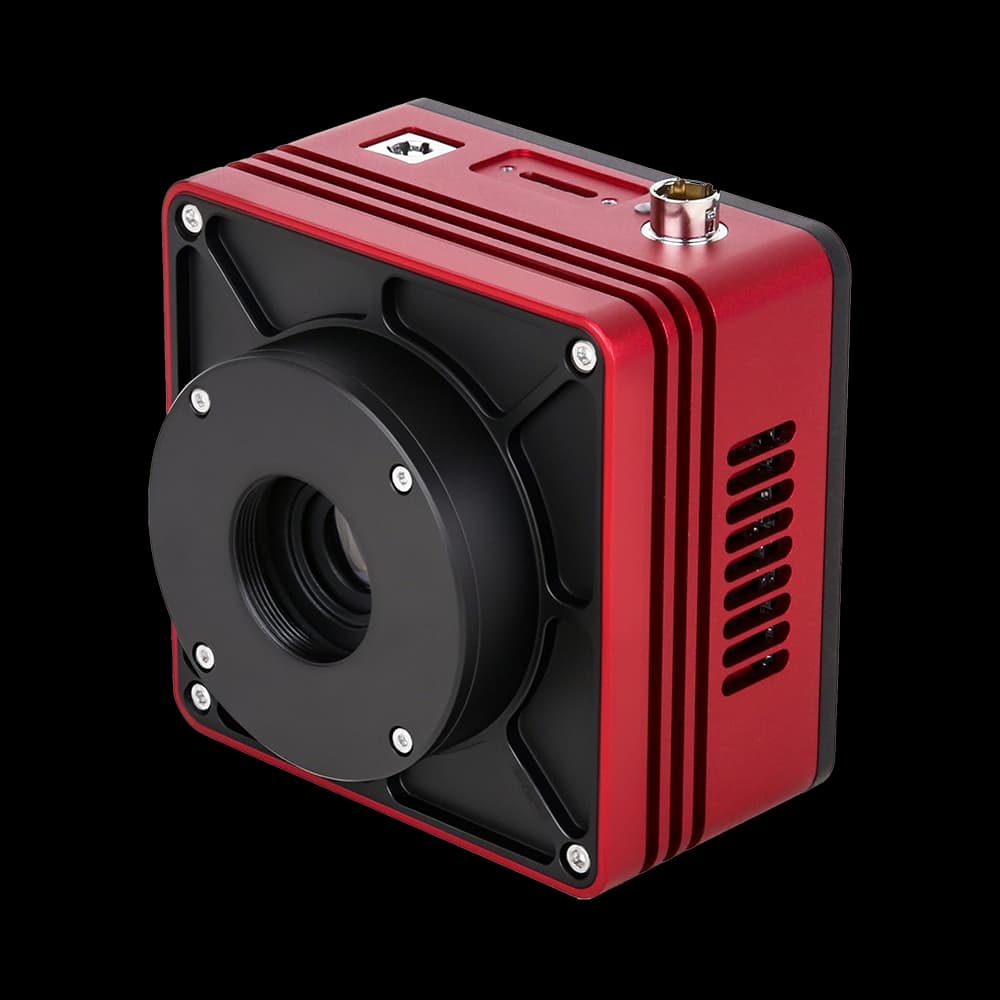

SWIR CameraGlobal shutterMatch 1

Sony-993

Sensor: Sony IMX993-AABA-C (InGaAs)
Resolution: 3.0 MP (2048×1536)
Pixel size: 3.45 µm × 3.45 µm
Frame rate: 8 Bit: 93 fps @ 2048×1536, 176 fps @ 1024×768; 12 Bit: 57 fps @ 2048×1536, 176 fps @ 1024×768
Mount: C-mount
Interface: USB3
Sensor size: 7.07 mm × 5.3 mm
Band: 400–1700 nm
Shutter: Global

SWIR CameraGlobal shutterMatch 1

Sony-993

Sensor: Sony IMX993-AABA-C (InGaAs)
Resolution: 3.0 MP (2048×1536)
Pixel size: 3.45 µm × 3.45 µm
Frame rate: 8 Bit: 220 fps @ 2048×1536, 415 fps @ 1024×768; 10 Bit: 200 fps @ 2048×1536, 380 fps @ 1024×768; 12 Bit: 118 fps @ 2048×1536, 220 fps @ 1024×768
Mount: C-mount
Interface: 10GigE
Sensor size: 7.07 mm × 5.3 mm
Band: 400–1700 nm
Shutter: Global

SWIR CameraGlobal shutterMatch 1

Sony-993

Sensor: Sony IMX993-AABA-C (InGaAs)
Resolution: 3.0 MP (2048×1536)
Pixel size: 3.45 µm × 3.45 µm
Frame rate: 10 Bit: 124 fps @ 2048×1536, 176 fps @ 1024×768; 12 Bit: 100 fps @ 2048×1536, 176 fps @ 1024×768
Mount: C-mount
Interface: CameraLink
Sensor size: 7.07 mm × 5.3 mm
Band: 400–1700 nm
Shutter: Global

SWIR CameraGlobal shutterMatch 1

Sony-993

Sensor: Sony IMX993-AABA-C (InGaAs)
Resolution: 3.0 MP (2048×1536)
Pixel size: 3.45 µm × 3.45 µm
Frame rate: 8 Bit: 173 fps @ 2048×1536, 328 fps @ 1024×768; 10 Bit: 158 fps @ 2048×1536, 300 fps @ 1024×768; 12 Bit: 93 fps @ 2048×1536, 176 fps @ 1024×768
Mount: C-mount
Interface: CoaXPress 2.0 (CXP-10 x 1)
Sensor size: 7.07 mm × 5.3 mm
Band: 400–1700 nm
Shutter: Global

SWIR CameraGlobal shutterMatch 1

Sony-993

Sensor: Sony IMX993-AABJ-C (InGaAs)
Resolution: 3.0 MP (2048×1536)
Pixel size: 3.45 µm × 3.45 µm
Frame rate: 8 Bit: 93 fps @ 2048×1536, 176 fps @ 1024×768; 12 Bit: 57 fps @ 2048×1536, 176 fps @ 1024×768
Mount: C-mount
Interface: USB3
Sensor size: 7.07 mm × 5.3 mm
Band: 400–1700 nm
Shutter: Global

SWIR CameraGlobal shutterMatch 1

Sony-993

Sensor: Sony IMX993-AABJ-C (InGaAs)
Resolution: 3.0 MP (2048×1536)
Pixel size: 3.45 µm × 3.45 µm
Frame rate: 8 Bit: 37 fps @ 2048×1536, 148 fps @ 1024×768; 12 Bit: 18.5 fps @ 2048×1536, 74 fps @ 1024×768
Mount: C-mount
Interface: GigE
Sensor size: 7.07 mm × 5.30 mm
Band: 400–1700 nm
Shutter: Global

SWIR CameraGlobal shutterMatch 1

Sony-993

Sensor: Sony IMX993-AABJ-C (InGaAs)
Resolution: 3.0 MP (2048×1536)
Pixel size: 3.45 µm × 3.45 µm
Frame rate: 8 Bit: 93 fps @ 2048×1536, 176 fps @ 1024×768; 12 Bit: 57 fps @ 2048×1536, 176 fps @ 1024×768
Mount: C-mount
Interface: USB3
Sensor size: 7.07 mm × 5.3 mm
Band: 400–1700 nm
Shutter: Global
