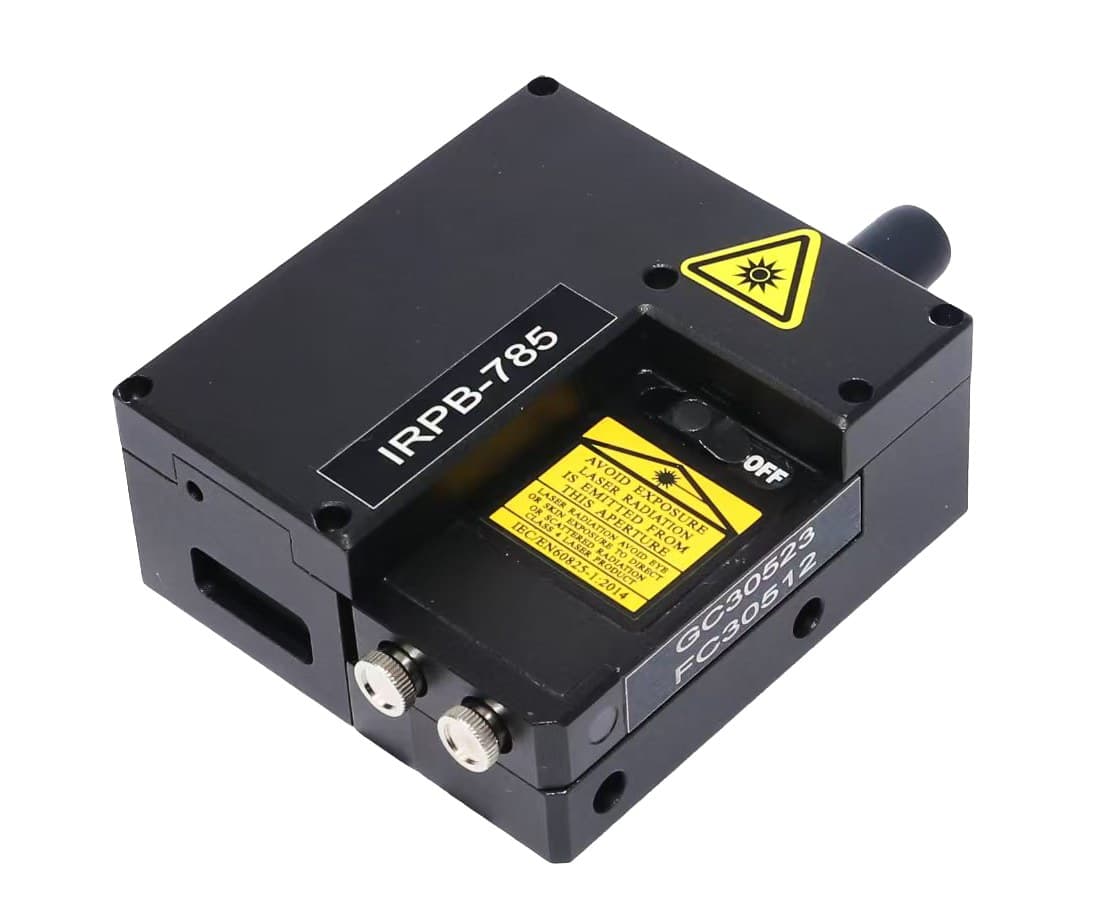

IRPB Imaging Raman Probe with Built-In Camera
A standard Raman probe combined with an imaging path and a USB colour camera, so the laser spot is seen on the sample while it is positioned. 532 nm or 785 nm excitation, 150–4500 cm⁻¹, a 2 × 1.5 mm field of view at 1280 × 1024 pixels.
532 / 785 nm
Excitation
2 × 1.5 mm
Camera field of view
1280 × 1024
Camera resolution
< 0.8 kg
Weight
Features
- Live view of the laser excitation spot for positioning the sample
- USB camera connects directly to the acquisition computer
- Fully solidified optical design for high repeatability
- Compact light path, small size and simple operation
- Works with fibre-coupled lasers and fibre spectrometers
- Custom development available
Applications
- Positioned Raman measurement of small samples
- Laboratory measurement
- Industrial field testing
Technical Specifications
Imaging Raman probe Specifications
Raman optics
| Excitation wavelength | 532 nm or 785 nm |
|---|---|
| Raman shift | 150–4500 cm⁻¹ |
| Working distance | 7.5 mm |
| Fibre | Two single fibres: 100 µm for excitation, 200 µm standard fibre for collection; NA 0.22; metal sheath; 1 m long |
| Coupling | SMA905 connectors |
Camera
| Sensor | 1/2.7-inch CMOS, 10-bit colour depth (true colour) |
|---|---|
| Resolution | Up to 1280 × 1024 pixels |
| Frame rate | 208.5 fps |
| Interface | USB |
| Field of view | 2 mm × 1.5 mm |
Mechanical

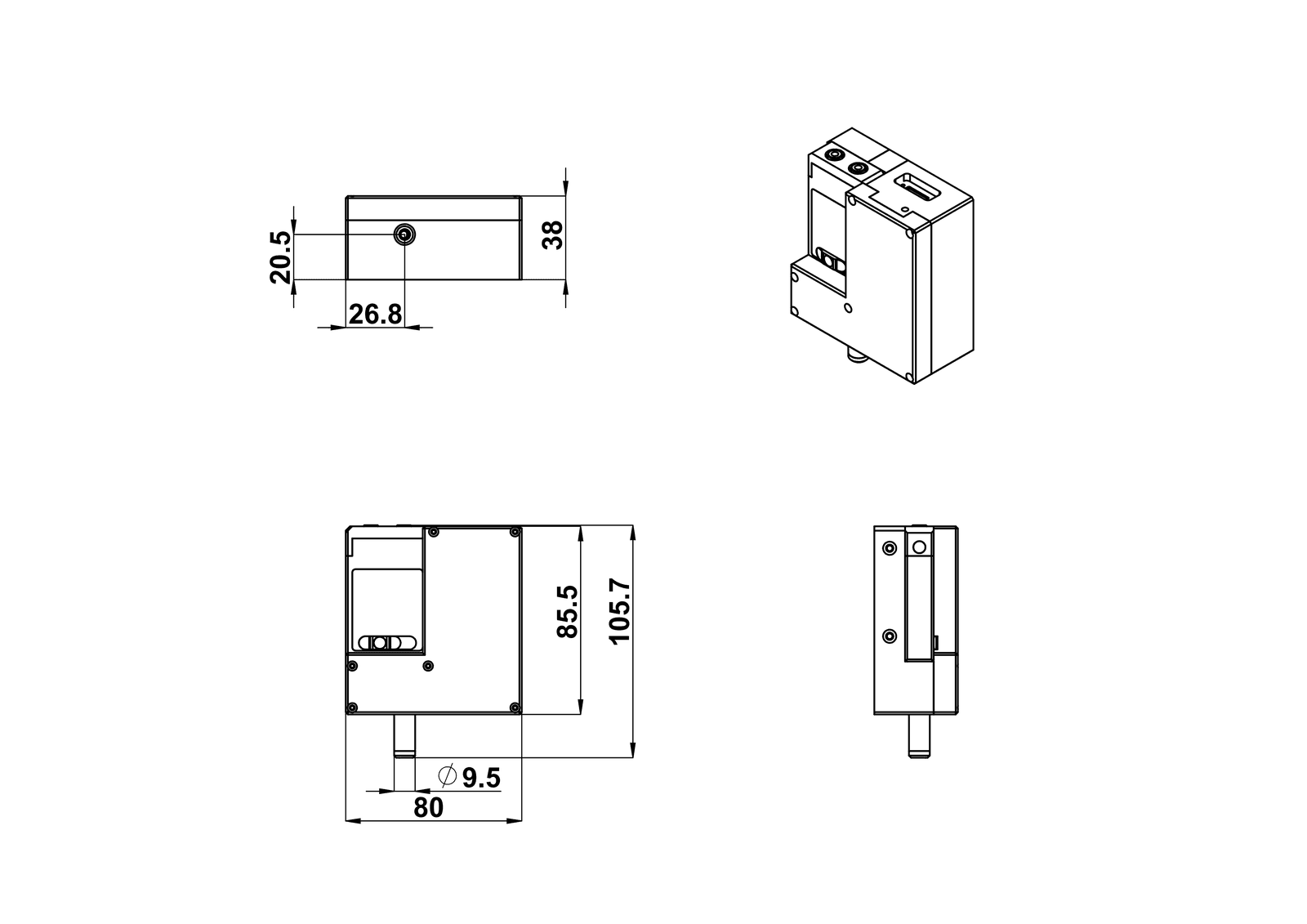

| Dimensions | 85.5 × 80 × 38 mm body; 105.7 mm long including the 20 mm probe tip |
|---|---|
| Weight | < 0.8 kg |
| Material | Blackened 2A12 aluminium body; stainless-steel probe tip |
| Operating temperature | 0–40 °C |
We confirm the excitation wavelength, body style and connectors, and match the probe to your laser and spectrometer, before quotation.
