FPB fluorescence probes
FPB Series Fibre-Coupled Fluorescence Probes, 405–980 nm
The same solidified probe bodies as the Raman range, with the filter set chosen for fluorescence: the laser line is blocked and the emission band passed to the spectrometer. Nine excitation wavelengths from 405 to 980 nm, the last two covering up-conversion emission from rare-earth phosphors.
9
Excitation wavelengths
405–980 nm
Excitation range
7.5 mm
Focal length
3
Body styles
Features
- Fully solidified optical design for high repeatability of the fluorescence measurement
- Compact light path and small housing; simple operation
- Standard, side-connector (-S) and compact fibre-detachable (-M) bodies
- 808 nm and 980 nm versions pass visible up-conversion emission
- Custom wavelengths and configurations on request
Applications
- Fluorescence spectroscopy with a laser and fibre spectrometer
- Photoluminescence of phosphors and rare-earth materials
- Laboratory measurement and industrial inspection
Available Models
Ordering Options
xxx is the excitation wavelength in nm from the table below.
FPB-xxx
Standard body, 111 × 38 × 14.75 mm, SMA905 connectors
FPB-xxx-S
Side-connector body, 111 × 48 × 14.75 mm, SMA905 or FC connectors
FPB-xxx-M
Compact fibre-detachable body, 61.5 × 38 × 14.75 mm, SMA905 connectors
Collected spectrum range by excitation wavelength
| Excitation | Spectrum range |
|---|---|

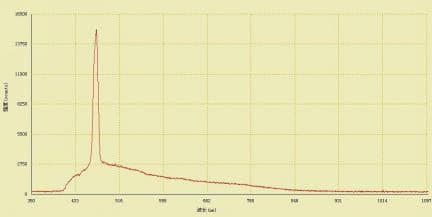

| 405 nm | 415–960 nm |
| 450 nm | 460–1000 nm |
| 473 nm | 483–910 nm |
| 488 nm | 500–900 nm |

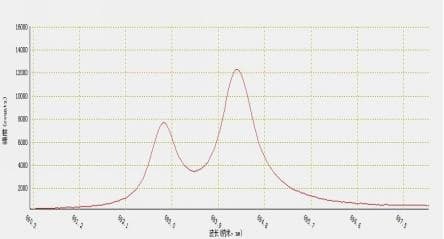

| 532 nm | 544–700 nm |
| 633 nm | 641–848 nm |
| 785 nm | 810–1100 nm |

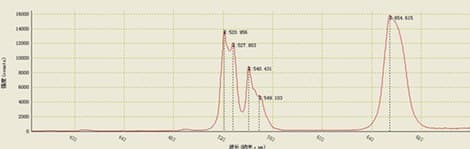

| 808 nm | 365–720 nm (up-conversion) |

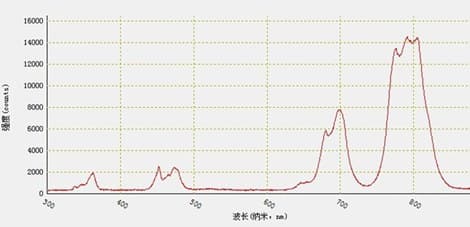

| 980 nm | 400–850 nm (up-conversion) |
Technical Specifications
FPB fluorescence probes Specifications
Optics and fibre
| Focal length | 7.5 mm |
|---|---|
| Fibre | Two single fibres: 100 µm for excitation, 200 µm standard fibre for collection; NA 0.22; metal sheath; 1 m long |
| Coupling | SMA905 connectors (standard and -M); SMA905 or FC (-S) |
Mechanical
| Standard body | 111 × 38 × 14.75 mm; probe tip 38 mm |
|---|---|
| -S body | 111 × 48 × 14.75 mm; probe tip 38 mm |
| -M body | 61.5 × 38 × 14.75 mm; probe tip 38 mm |
| Material | Blackened 2A12 aluminium body; stainless-steel probe tip |
| Operating temperature | 0–40 °C |
We confirm the excitation wavelength, body style and connectors, and match the probe to your laser and spectrometer, before quotation.
Figures
Drawings, Photos and Measured Data
