T-RamanSys desktop Raman
T-RamanSys Desktop Raman Spectrometer System, 405 / 532 / 785 / 830 nm

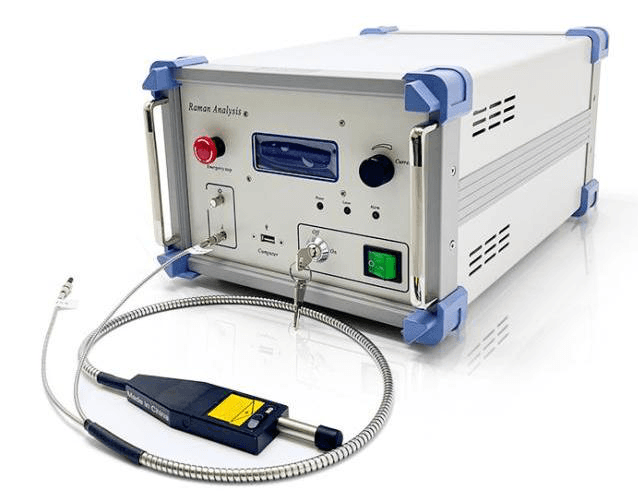

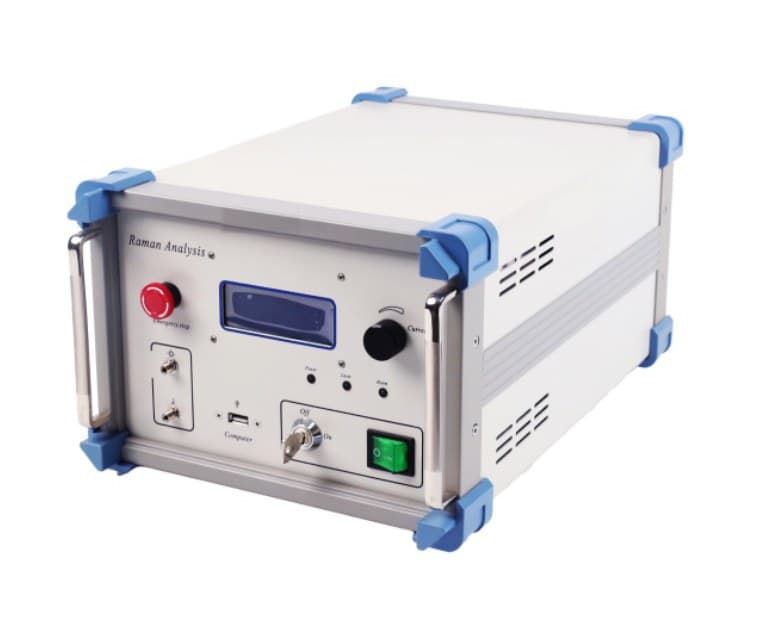

A benchtop Raman spectrometer in one 420 × 272 × 160 mm enclosure: a frequency-stabilised fibre-coupled laser, a Sunshine TG-Raman fibre spectrometer and the Raman Analysis software with library matching, with an RPB Raman probe connected externally. Four excitation lines — 405, 532, 785 and 830 nm — each with its own spectrometer range and resolution.
405–830 nm
Four excitation lines
< 5 cm⁻¹
Resolution at 785 nm
1000:1
Spectrometer S/N
420 × 272 × 160 mm
Enclosure
Features
- Adjustable, wavelength-stable 405 / 532 / 785 / 830 nm excitation laser built in
- External Raman probe connection: solids, liquids and powders without sample preparation
- Simple, fast measurement; Raman Analysis 2.0 software with library matching, search and a self-built library

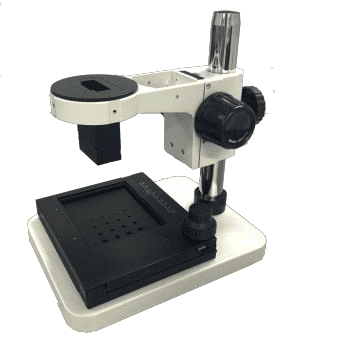

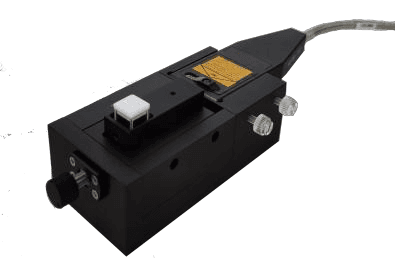

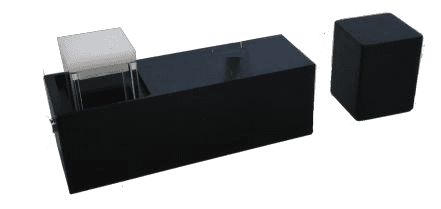

- Flexible, stable sampling with the probe holder, sample cell and adjustable sample cell
- External power supply (charging) with a vehicle-mounted charger
- Dustproof, waterproof, anti-vibration and anti-glare for use in the field
- Wavelength range and resolution customised to the application
Applications
- Raman spectral analysis
- Chemical and biological research
- Environmental sciences

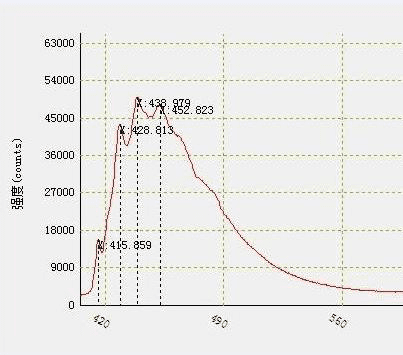

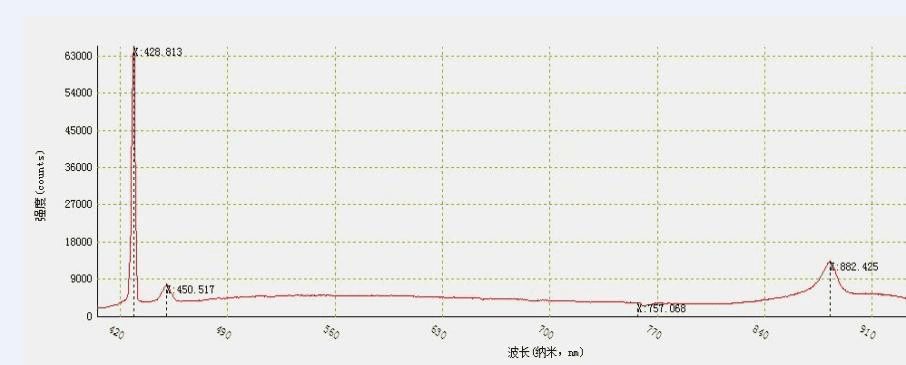

- Diamond and jewellery identification
- Food safety testing
- Forensic identification

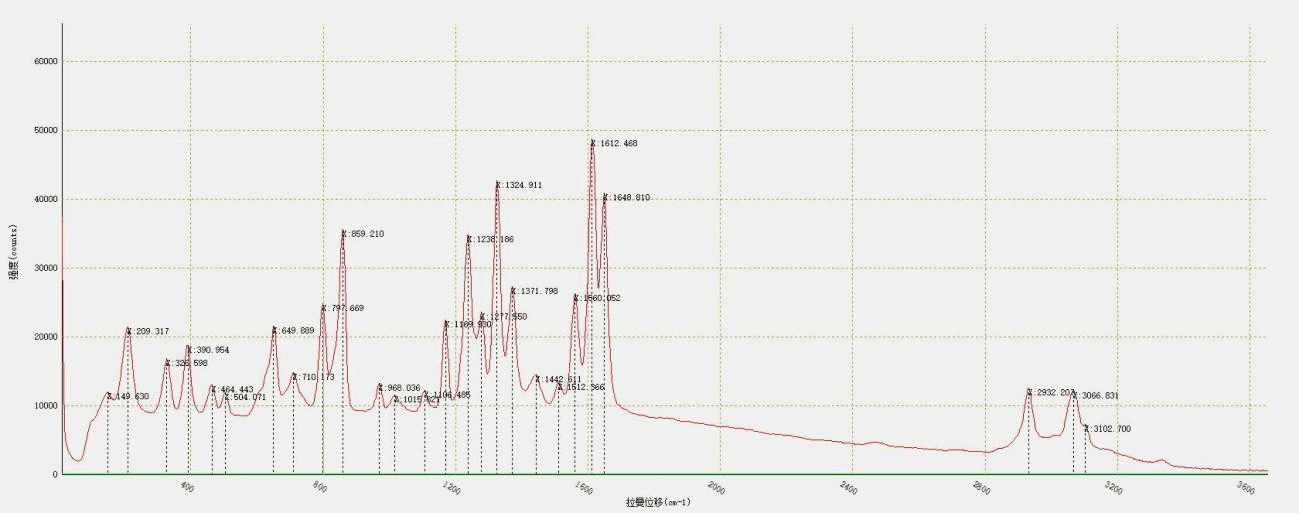

- Pharmaceutical and medical diagnosis
- Geological exploration
- Hazard detection
Available Models
Ordering Options
Each system is built around one excitation line: RPB probe, fibre-coupled laser, Sunshine TG-Raman spectrometer, PC data-processing unit and operator interface.
T-RamanSys-405
405 nm · 300–4700 cm⁻¹ · < 12 cm⁻¹

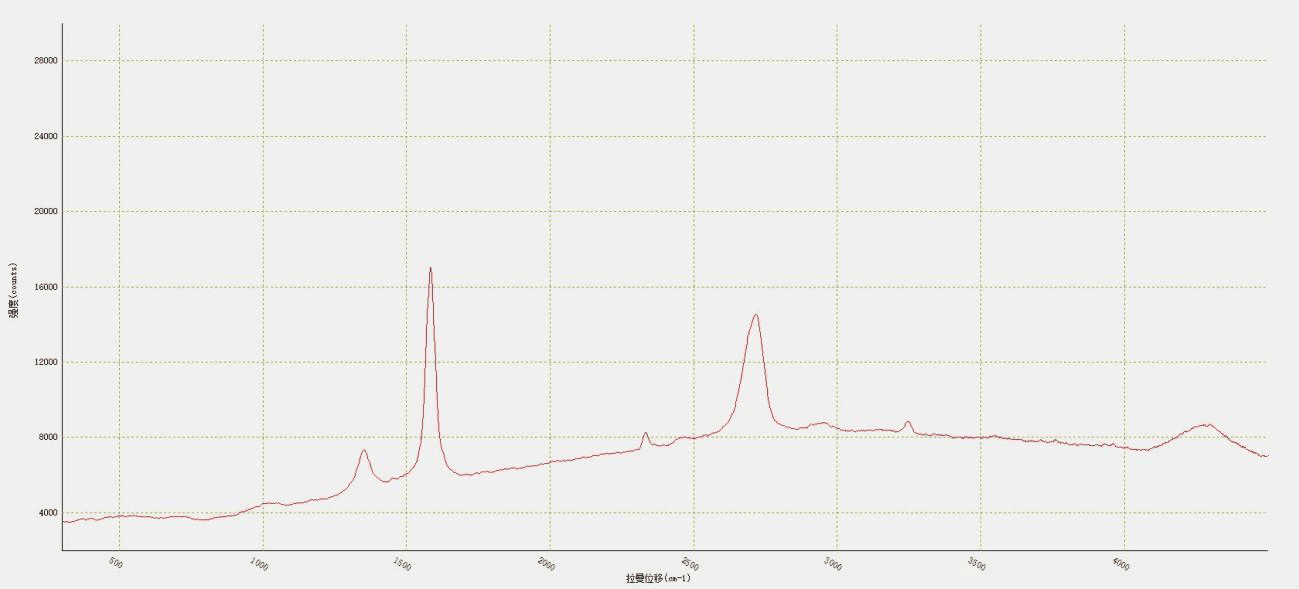

T-RamanSys-532
532 nm · 200–4500 cm⁻¹ · < 12 cm⁻¹
T-RamanSys-785
785 nm · 175–4000 cm⁻¹ · < 5 cm⁻¹
T-RamanSys-830
830 nm · 300–2048 cm⁻¹ · < 7 cm⁻¹
Excitation laser by model
Power stability options apply to every model; amplitude noise is not specified for the 405 nm laser.
| Parameter | T-RamanSys-405 | T-RamanSys-532 | T-RamanSys-785 | T-RamanSys-830 |
|---|---|---|---|---|
| Wavelength | 405 ± 0.5 nm | 532 ± 0.5 nm | 785 ± 0.3 nm | 830 ± 5 nm |
| Mode | Single | Single | Single | Multi |
| Spectral linewidth | 1.8 cm⁻¹ | 3.5 or 0.1 cm⁻¹ | < 3.2 cm⁻¹ | < 28 cm⁻¹ |
| Output power | 1–500 mW | 1–1000 mW | 1–500 mW | 1–900 mW |
| Power stability (pk-pk, 4 h) | < 1 %, < 3 % or < 5 % | < 1 %, < 3 % or < 5 % | < 1 %, < 3 % or < 5 % | < 1 %, < 3 % or < 5 % |
| Amplitude noise (rms) | — | < 0.5 % | < 0.5 % or < 1 % | < 1 % |
| Fibre | 100 µm, 0.22 NA | 100 µm, 0.22 NA | 100 µm, 0.22 NA | 100 µm, 0.22 NA |
| Warm-up time | < 5 min | < 10 min | < 5 min | < 5 min |
| Operating temperature | 10–35 °C | 15–35 °C | 10–40 °C | 10–35 °C |
Spectrometer by model
| Parameter | T-RamanSys-405 | T-RamanSys-532 | T-RamanSys-785 | T-RamanSys-830 |
|---|---|---|---|---|
| Wavelength range | 405–500 nm | 532–700 nm | 785–1100 nm | 830–1000 nm |
| Raman shift range | 300–4700 cm⁻¹ | 200–4500 cm⁻¹ | 175–4000 cm⁻¹ | 300–2048 cm⁻¹ |
| Optical resolution | 8–12 cm⁻¹ | 8–12 cm⁻¹ | 5–8 cm⁻¹ | 5–7 cm⁻¹ |
Technical Specifications
T-RamanSys desktop Raman Specifications

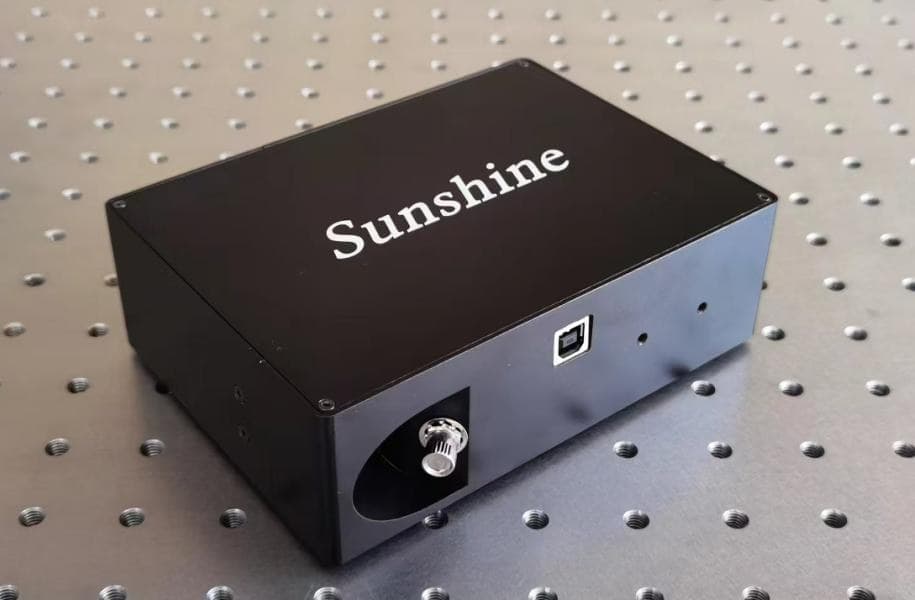

Spectrometer (all models)
| Detector | 2048 pixels, 14 µm × 14 µm (Sunshine TG-Raman) |
|---|---|
| Signal-to-noise ratio | 1000:1 |
| Integration time | 17 ms – 10 s |
| Inputs / outputs | 5 input and 5 output ports; one 12-bit analog input and one 12-bit analog output |
| Data transfer | Full scan into memory every 4 ms over USB 2.0 (every 18 ms over USB 1.1) |
| Connector | 30-pin connector |
| Spectrometer module | 149 × 109 × 50 mm, 1000 g; 450 mA at 5 V DC |
Laser (all models)
| Operating mode | CW |
|---|---|
| Expected lifetime | 10 000 hours |
| Warranty | 1 year |
System
| Composition | RPB Raman probe, fibre-coupled laser, Sunshine TG-Raman fibre spectrometer, PC data-processing unit, operator interface |
|---|---|
| Software | Spectral Analysis / Raman Analysis 2.0 with library matching and search |
| Operating system | Windows XP / 7, 32- or 64-bit |
| Enclosure | 420 × 272 × 160 mm |
| Power | External supply (charging); vehicle-mounted charger |
| Environment | Dustproof, waterproof, anti-vibration, anti-glare |
We confirm the excitation line, probe, sample accessories and software package before quotation.
