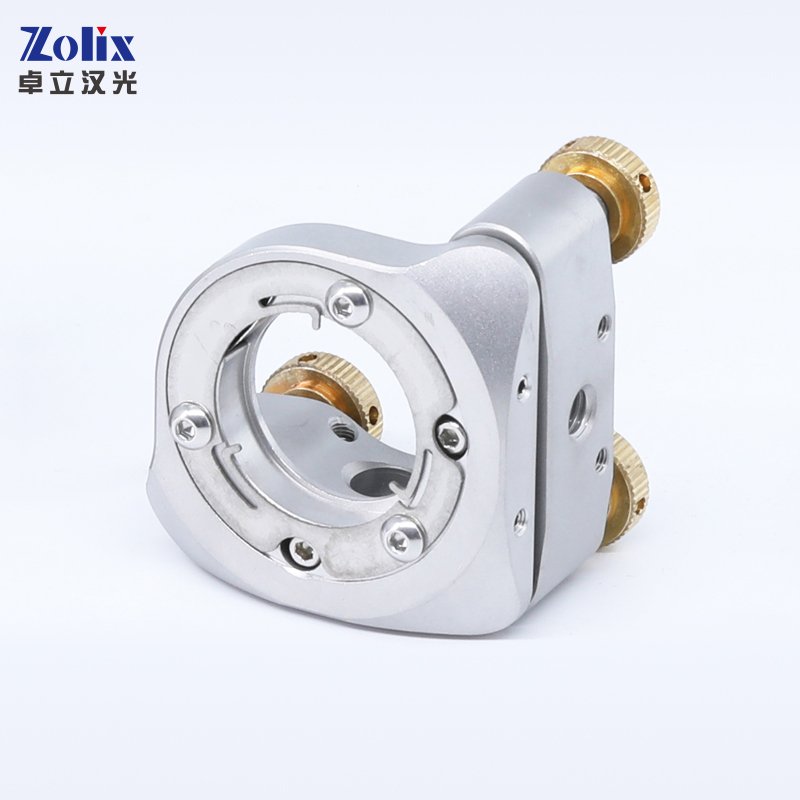

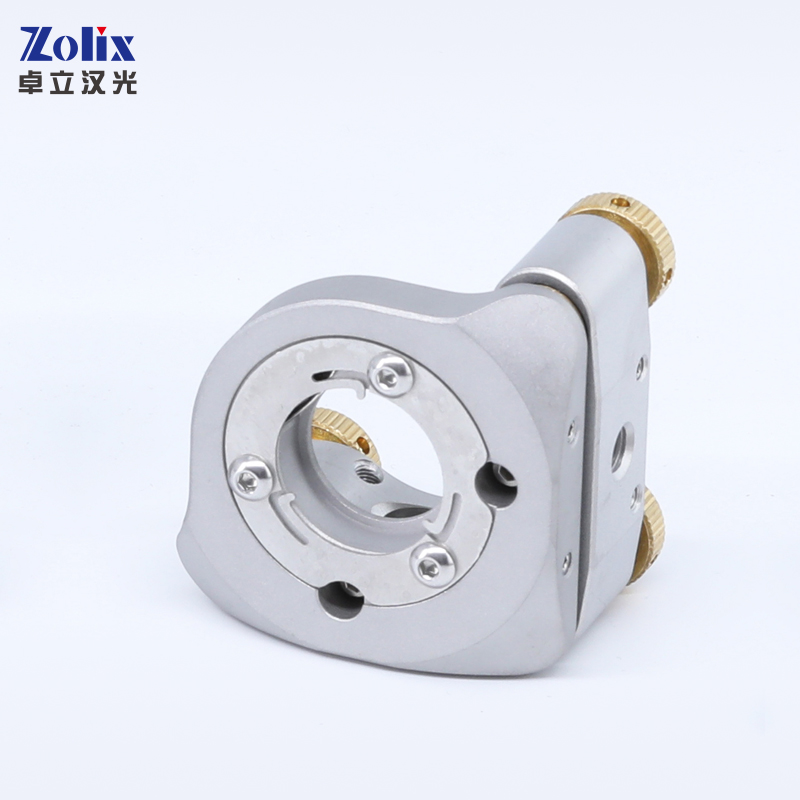

Kinematic Mirror Mount · SUS series Stainless Steel Kinematic Mirror Mount
SUS25.4

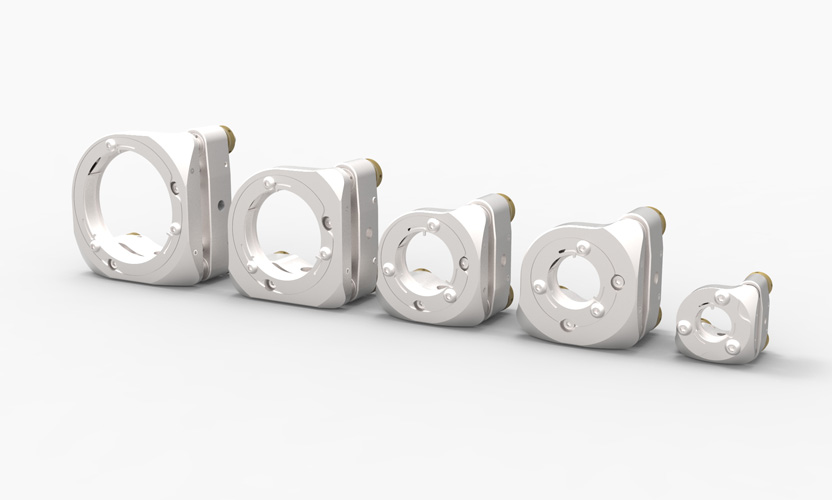

SUS series Stainless Steel Kinematic Mirror Mount
High-Quality Materials: Adopting SUS304 stainless steel effectively reduces the thermal expansion coefficient and internal stress; High stability: Adopting a superior line-line-line structure to replace the traditional point-line-surface structure, this mount
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Optic Size (mm) | φ25/ φ25.4 |
|---|---|
| Optics Thickness (mm) | 3~6 |
| Adjustment Angle Range (°) | ±3 |
| Front Plate Translation (mm) | MAX6 |
| Clear Aperture (mm) | φ24 |
| Optic Center Height (mm) | 25 |
| Resolution: angular adjustment per revolution(°） | ≈0.33 |
| Main Body Material and Treatment | Stainless steel with sandblasting passivation |
| Thickness of The Fixed Plate(mm) | 16 |
| Number of Pulling Spring | 4 |
| Locking Mechanics | Yes, dual locking mechanisms M6, φ8 counter bore |
| Mounting Hole | M6,φ8 sink hole |
| Net Weight(g) | 230 |
Model selection
Why specify SUS25.4?
SUS25.4 is the φ25/ φ25.4 configuration in the SUS series Stainless Steel Kinematic Mirror Mount. The clear aperture is φ24. The optical-axis height is 25 mm. The listed body or optic thickness is 3~6 mm.
Applications
Beam steering
Two-axis angular adjustment for directing a beam between components on the table.
Cavity and interferometer alignment
Hold pointing where a few microradians of drift is visible directly in the measurement.
Repeatable optic exchange
Kinematic seating returns an optic to the same orientation after it has been removed.
