NFP-5561L

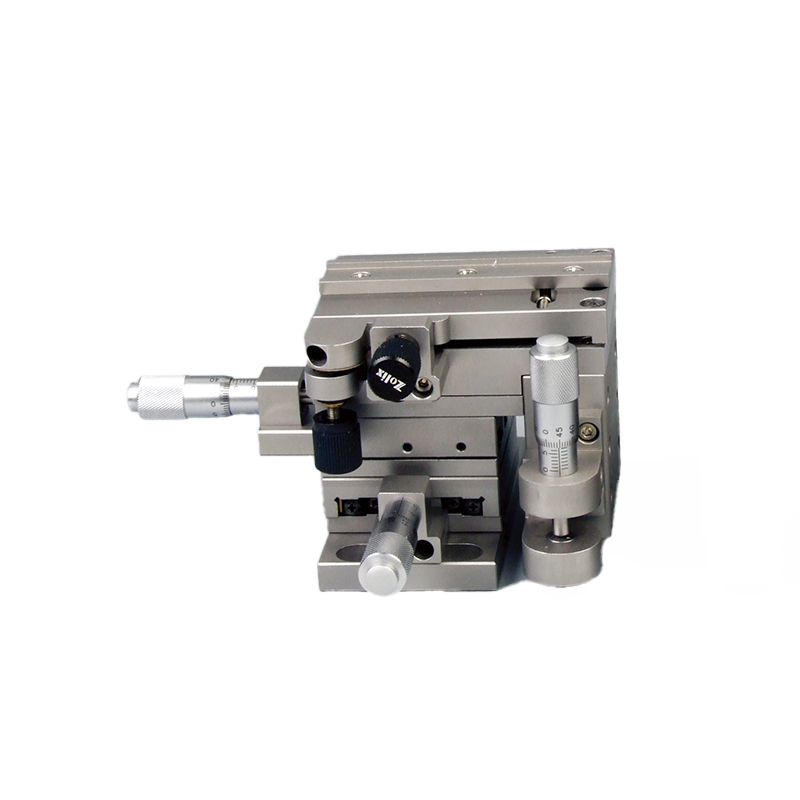

NFP-5561L 5-axis high-precision fiber alignment stage
5-axis SUS304 fiber-alignment assembly with crossed-roller linear guidance and dovetail-compatible angular modules. Intended for stable, sub-micrometre alignment of fibers and photonic devices.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range X(mm) | 13 |
|---|---|
| Travel range Y(mm) | 13 |
| Travel range Z(mm) | 6 |
| Travel range θy(°) | -2~4 |
| Travel range θz(°) | -4~4 |
| Guide mechanism | Crossed-roller guide+rotation structure |
| Drive type | Micrometer+screw |
| Main body material and | Stainless steel, sandblasting |
| Sensitivity | ≤1µm |
| Linearity Deviation(um) | ≤3 |
| Weight(Kg) | 2.2 |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
