NFP-GON10

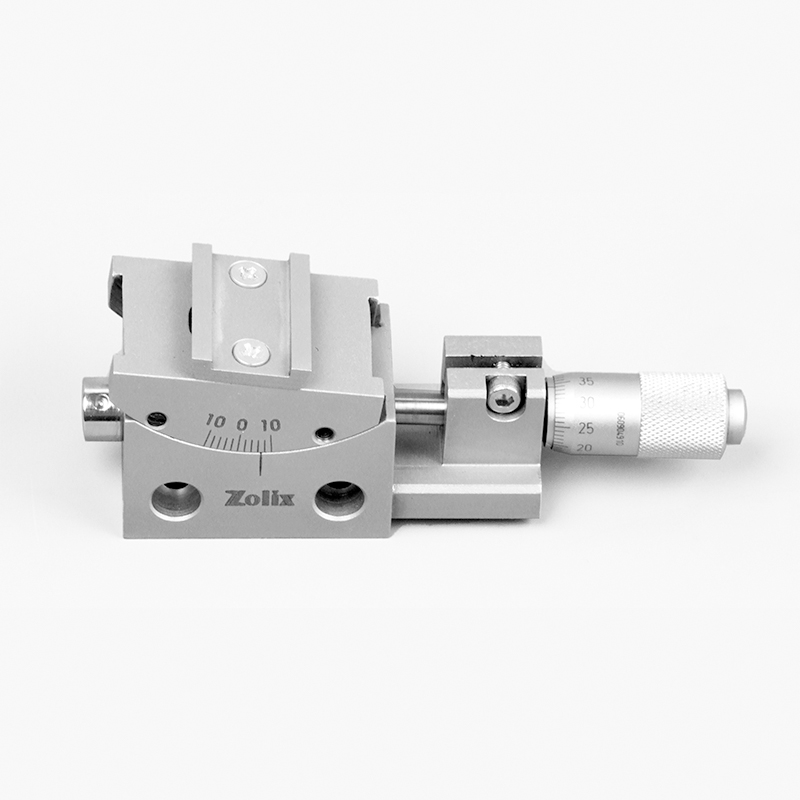

NFP-GON10 high-precision fiber goniometer
Stainless-steel goniometer module that adds θx rotation to NFP fiber-alignment assemblies and accepts dovetail-mounted APFP accessories.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range θy(°) | -2~4 |
|---|---|
| Travel range θz(°) | -4~4 |
| Guide mechanism | rotational structure |
| Drive type | Screw |
| Main body material and | Stainless steel, sandblasting |
| Weight(Kg) | 1.2 |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
