Zolix integrated optoelectronic test system
RTS2-Omni-Imager
A Raman–hyperspectral combined microscopic spectroscopy system uniting dark-field scattering, steady-state and transient fluorescence, and Raman spectroscopy on one open, modular platform.
400–1000 nm
Spectral range
2.8 nm
Resolution
9 s
Per data cube
01 · Overview
One platform, four measurement modes

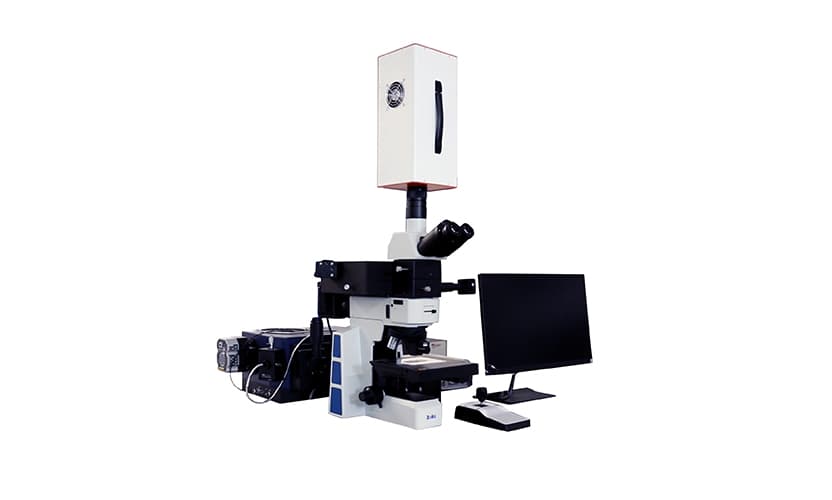

The modular RTS2-Omni-Imager moves beyond single-technique spectrometers. It records image and spectral information together for fast, in-situ, correlative analysis of physical, chemical, and biological processes at the nanoscale.
Push-broom hyperspectral imaging

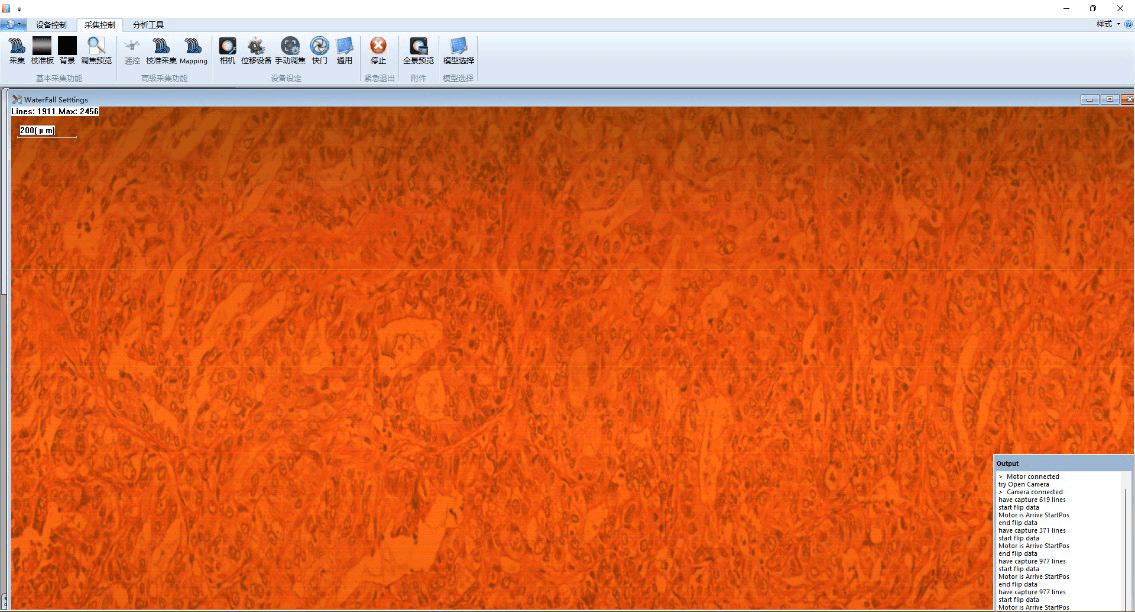

Capture a complete data cube in roughly 10 seconds to one minute, depending on camera settings, without point-by-point scanning.
Patented focal-plane scanning
An internal precision motorized stage handles acquisition, focus, and depth-of-field adjustment through Zolix focal-plane scanning technology.
Large-area automated mapping
An optional motorized XY stage maps large samples and automatically stitches and corrects each swath into a seamless image.
Depth-resolved imaging
Motorized autofocus supports in-situ imaging across sample layers for large-area, multi-dimensional, and tomographic measurements.
02 · Technology
Dark-field microscopy meets hyperspectral imaging
Dark-field microscopy

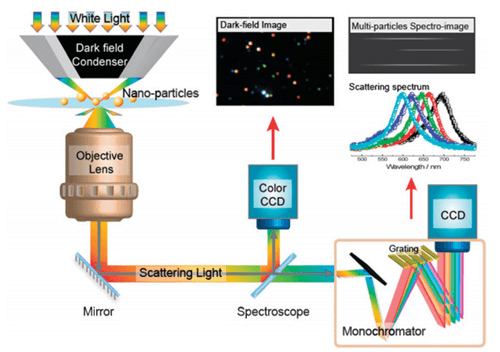

A dedicated illumination and observation geometry directs only sample-scattered light into the objective. Small particles, fibres, and interfaces stand out against a dark background, including structures below the conventional bright-field diffraction contrast limit.
Hyperspectral imaging

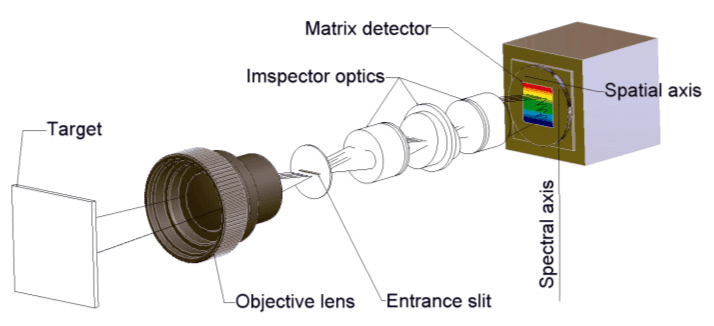

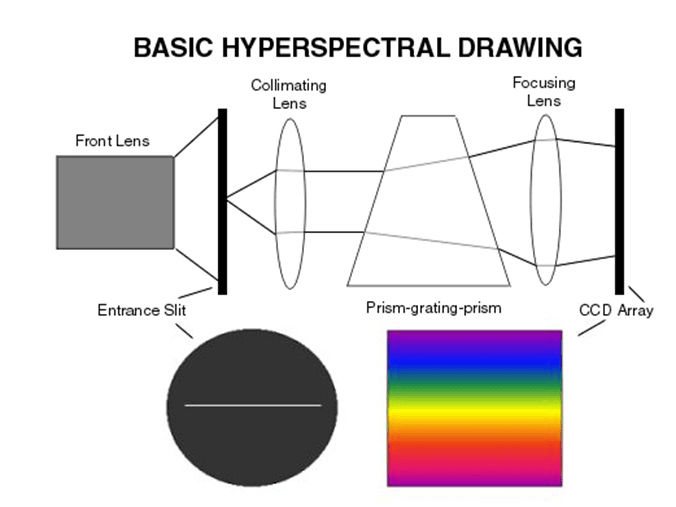

Tens to hundreds of continuous narrow spectral bands create a complete spectrum for every image point. A push-broom imaging spectrometer records one spatial line at a time, combining spatial and spectral axes into a calibrated three-dimensional data cube.
03 · System configuration
A modular optical architecture

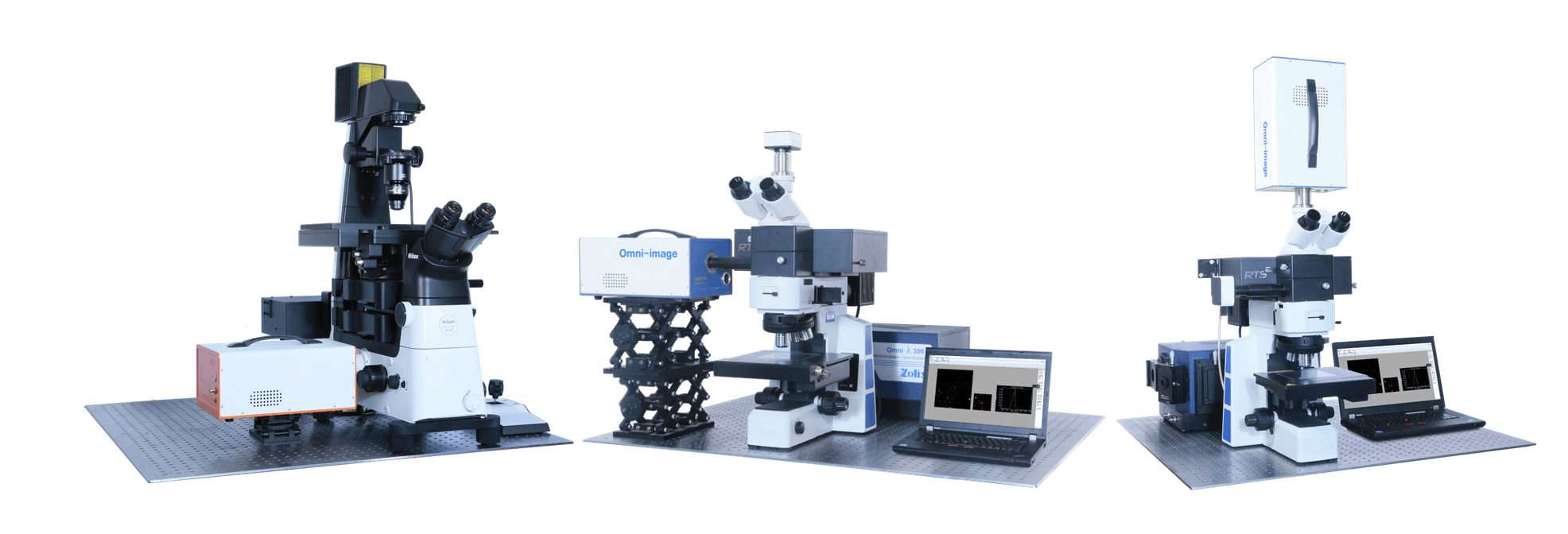

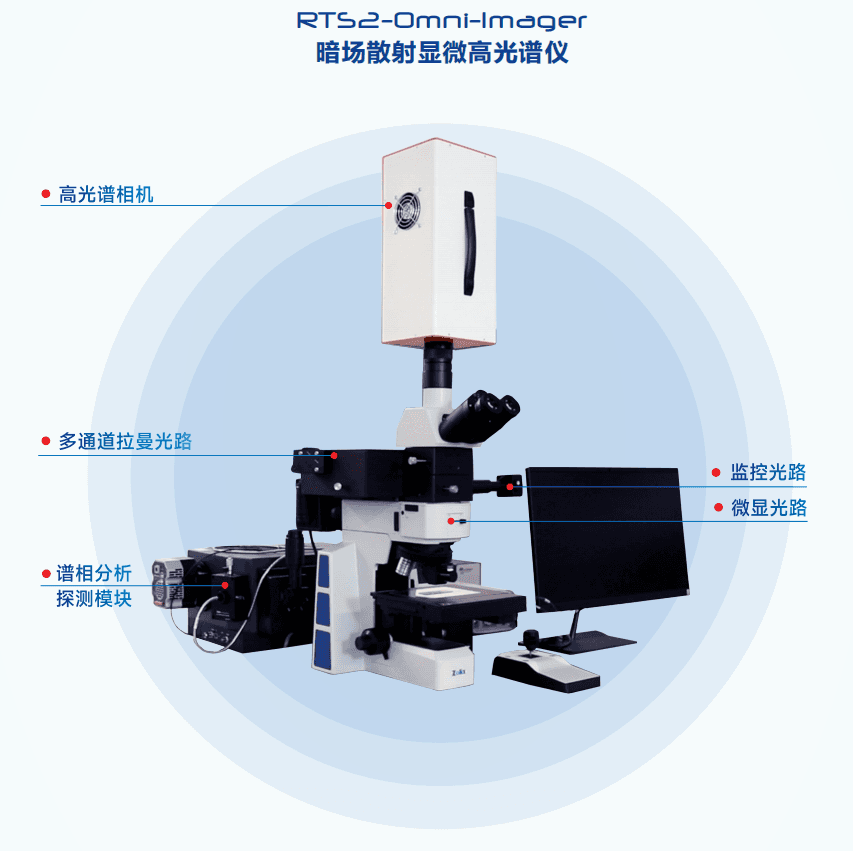

A dark-field microscope, imaging spectrograph, hyperspectral camera, and high-sensitivity detector form the core. Optional laser and confocal paths add fluorescence and Raman excitation while keeping conventional spectrograph access available.
04 · Software & database

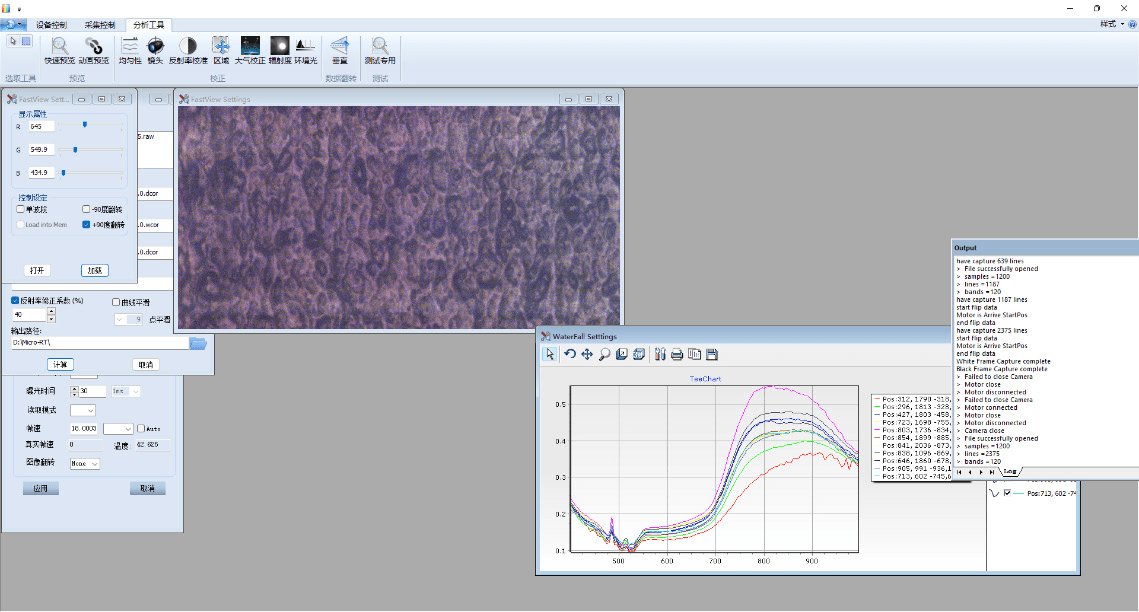

Modular spectral-image processing

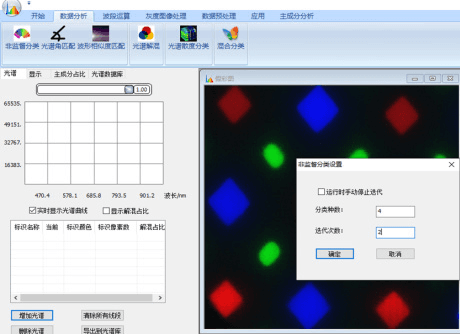

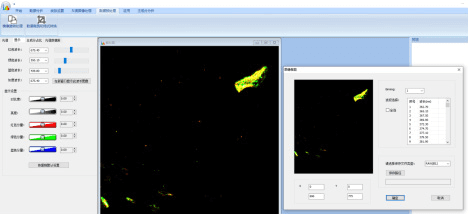

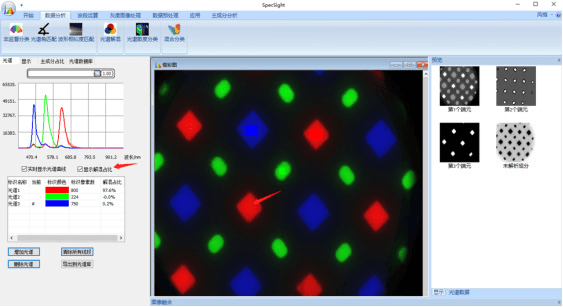

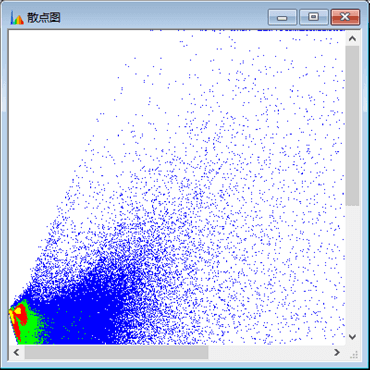

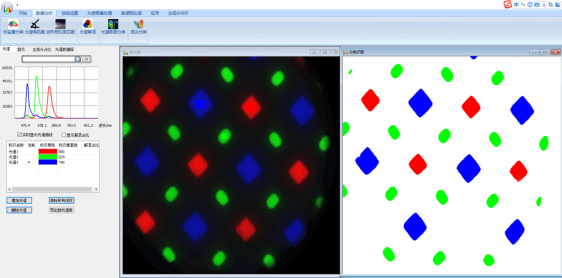

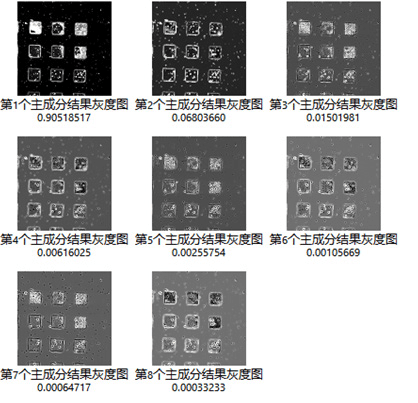

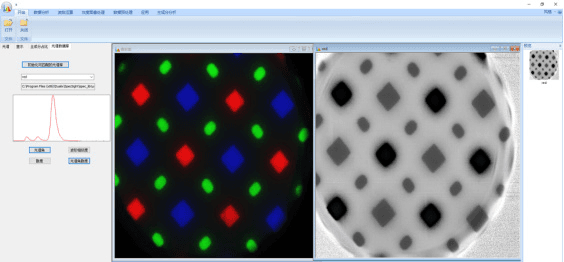

Image-processing and spectral-identification modules cover classification, spectral-angle matching, linear unmixing, divergence analysis, band math, PCA, calibration, retrieval, and spectral-database management.
Band extraction and frame selection
Select the wavelength range and channel count of interest, increasing acquisition speed when fewer bands are required.
Calibration and retrieval

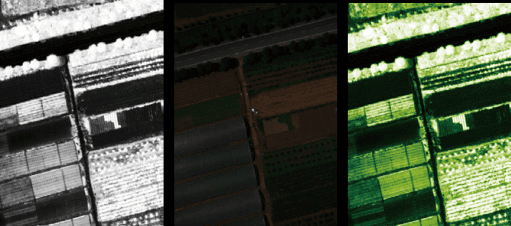

One-click reflectance calibration, batch processing, binning, cropping, format conversion, and model-based real-time retrieval.
05 · Applications & measured data
From single nanoparticles to perovskite films
Correlative image and spectrum acquisition supports dark-field scattering, nanomaterials research, life sciences, camouflage detection, and pharmaceutical or medical analysis.

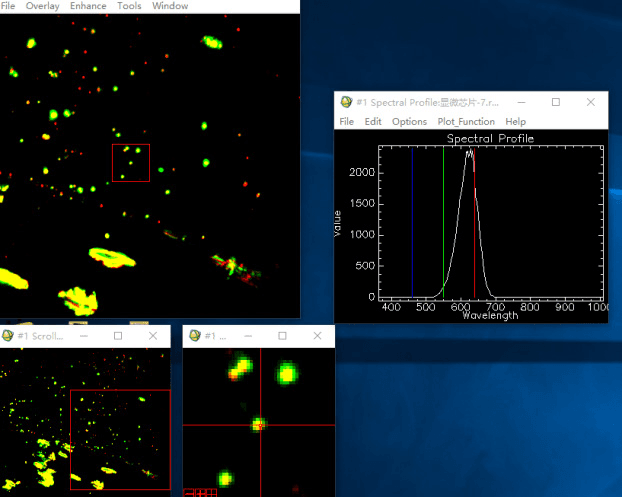

Nanoparticles in one field of view

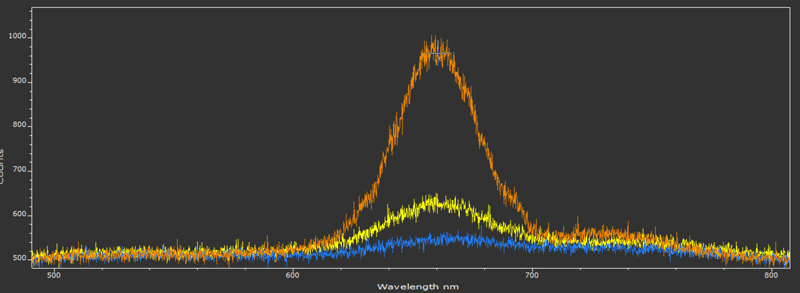

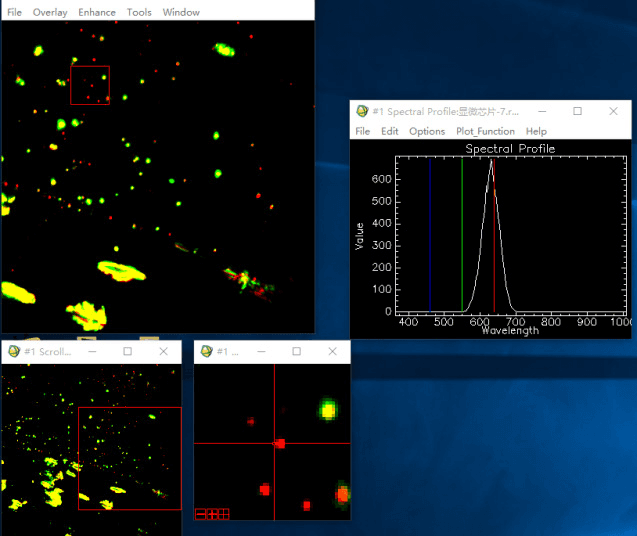

Polarization-resolved single gold nanorod

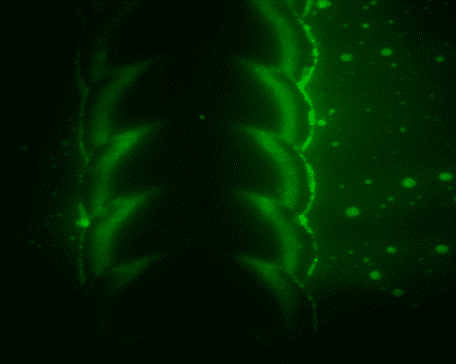

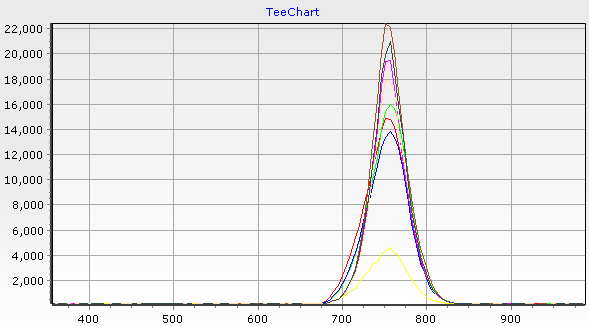

Perovskite fluorescence mapping

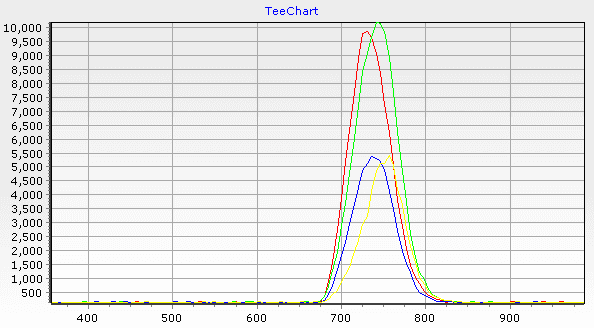

Excitation at 532 nm with detection around the 750 nm fluorescence peak.
06 · Technical specifications
Performance and configuration
Hyperspectral imaging
| Scanning method | Internal push-broom scanning |
|---|---|
| Focusing | Motorized, electronically controlled |
| Spectral range | 400–1000 nm |
| Spectral resolution | 2.8 nm |
| Spectral sampling | 0.6 nm |
| Detector | 2048 × 2048 cooled sCMOS; air- or water-cooled |
| Dynamic range | 16 bit |
| Image spatial resolution | 2048 × 1024 |
| Effective spectral channels | User-definable |
| Scan speed | 9 seconds per data cube |
Dark-field scattering & fluorescence
| Spectral range | 400–1000 nm |
|---|---|
| Spectral resolution | < 3 nm |
| Imaging speed | < 1 minute at 640 × 512 |
| Spatial resolution | < 2 µm |
Optional Raman module
| Raman spectral range | 90–5000 cm⁻¹ |
|---|---|
| Spectral resolution | ≤ 2.0 cm⁻¹ at 1800 g/mm |
| Silicon third-order peak SNR | > 30:1 |
Hardware configuration
| Microscope | Upright microscope with 100×, 50×, and 10× dark-field objectives; inverted microscope optional |
|---|---|
| Hyperspectral camera | Omni-Imager, F/2.4, 400–1000 nm |
| Control computer | All-in-one PC |
| Optional spectrograph | 320 mm or 500 mm focal length, three gratings, motorized shutter, and deep-cooled back-illuminated detector |
| Optional excitation | Raman lasers plus CW or pulsed fluorescence sources, including picosecond, femtosecond, and supercontinuum sources |
| Power supply | 220 V |
| Operating environment | 20 ± 5 °C; ≤ 85% RH; isolated from high-power electrical equipment and vibration sources |
