Polarization & Phase Control

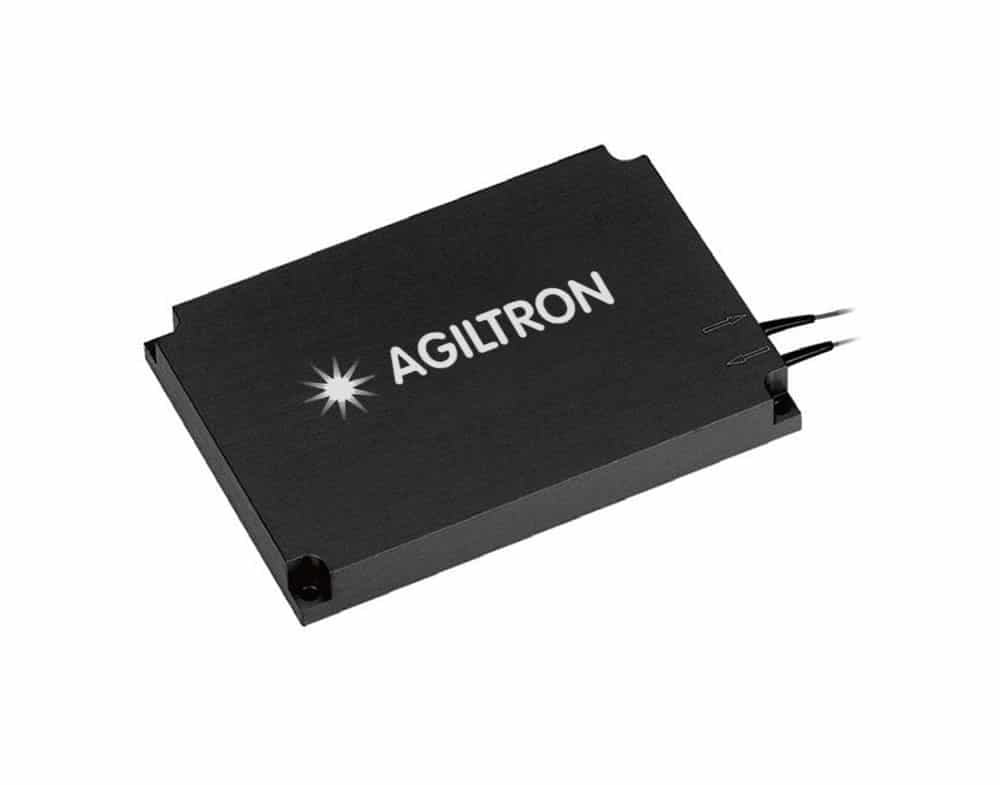

The PFDP Passive Optical Fiber Depolarizer is an all-fiber device that converts polarized input into random polarization output, featuring ultra-fast response, low cost, high power handling, and no electrical power requirements. It employs multiple fiber couplers arranged in series to achieve polarization scrambling, where each coupler introduces changes in polarization due to slight birefringence variations and random phase shifts. The cumulative effect results in complex, non-deterministic polarization changes, effectively scrambling the input light.
Configuration options
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
We confirm the exact part number for your configuration on enquiry.
Type: Coupler Based · Input Light: SLED · Wavelength: 1550nm · Package: Box · Input Fiber: PM1550 · Fiber Protection: Bare · Connector: None
Application context
Application guidance is tied to the configured wavelength, fiber interface and optical-budget fields for this family.
Passive Optical Fiber Depolarizer: >1nm Linewidth: Laboratory optical integration depends on preserving the optical budget through the complete path. The 1550nm, 1310nm, 1060nm, 980nm, 850nm, 780nm wavelength specification sets source and detector compatibility. The fiber/interface entry (PM1550, PM1310, PM1060, PM980, PM780, SM28, Hi1060, Hi980, 780HP) must match the connected components.
Passive Optical Fiber Depolarizer: >1nm Linewidth: Fiber-optic instrumentation depends on preserving the optical budget through the complete path. The 1550nm, 1310nm, 1060nm, 980nm, 850nm, 780nm wavelength specification sets source and detector compatibility. The fiber/interface entry (PM1550, PM1310, PM1060, PM980, PM780, SM28, Hi1060, Hi980, 780HP) must match the connected components.
System integration
Use these checks to connect Passive Optical Fiber Depolarizer: >1nm Linewidth to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Input Fiber: PM1550, PM1310, PM1060, PM980, PM780, SM28, Hi1060, Hi980, 780HP · Fiber Protection: Bare, 0.9mm Tube. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
Wavelength: 1550nm, 1310nm, 1060nm, 980nm, 850nm, 780nm. Check the Polarization & Phase Control passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Compare Passive Optical Fiber Depolarizer: >1nm Linewidth with the closest available models in the Polarization & Phase Control family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | Passive Optical Fiber Depolarizer: >1nm Linewidth (current) | High Speed Fiber Polarization Controller, 10ns | Piezoelectric Fiber Scrambler/De-Speckler – 150kHz |
|---|---|---|---|
| Wavelength range | 1550nm, 1310nm, 1060nm, 980nm, 850nm, 780nm | 1310, 1550, Special | Confirm for this model |
| Optical performance | Confirm for this model | Confirm for this model | Confirm for this model |
| Fiber type | Confirm for this model | Confirm for this model | 1m |
| Connector / control | None, FC/PC, FC/APC, SC/PC, SC/APC, ST/PC, LC/PC, Special | None, FC/PC, FC/APC, SC/PC, SC/APC, ST/PC, LC/PC, LC/UPC, Special | None, FC/PC, FC/APC, Special |
