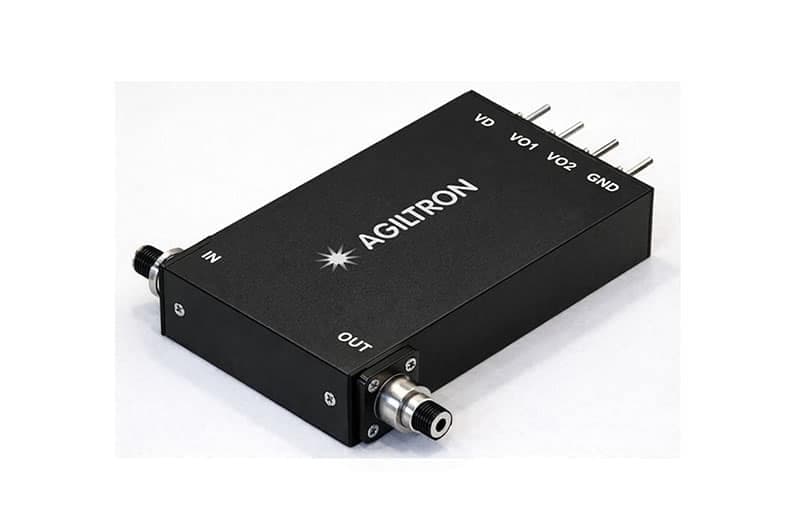

Modulator Drivers is a configurable active optical modulation component in the Optical Modulators family. The final part number should be released only after the optical, mechanical, electrical and environmental fields below are matched to the intended instrument.

Back to Optical Modulators

Engineering reference

Specify Modulator Drivers from the interfaces inward

The source record contains no configuration table or datasheet. The fields below are therefore procurement requirements to confirm, not claimed values for every option.

Configuration fields to confirm

Optical function: Define whether phase, intensity, frequency, deflection or delay is being controlled.
Wavelength and aperture: Specify optical band, beam diameter or fiber mode and polarization.
Dynamic range: State modulation depth, extinction, phase stroke, frequency shift or delay range.
Temporal bandwidth: Provide rise time, modulation frequency and required waveform fidelity.
Electrical drive: Confirm voltage or RF power, impedance, connector, bias point and compatible driver.
Thermal and optical limits: Check optical power, damage threshold, heat sinking and drift at the intended duty cycle.
