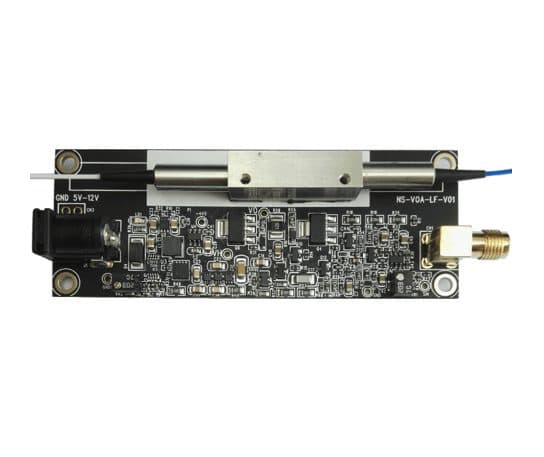

DC-20kHz Driver for NanoSpeed™ Variable Optic Attenuator
The NS VOA Driver provides driving signals for the NS series solid-state VOAs. The push-pull output design ensures fast switching time for both rising and falling edges, and it is especially suitable for driving capacitive VOA loads. The standard driver controls one individual VOA. Drivers that control multiple VOAs are also available, please call Sales at (781) 935-1200 for more information. We make custom electronic circuits for all application scenarios
Specifications
DC-20kHz Driver for NanoSpeed™ Variable Optic Attenuator
| Driver series | NanoSpeed variable optical attenuator (VOA) driver |
| Operating frequency | DC ~ 20 kHz |
| Control input | 0 ~ 5 V analog signal |
| Power supply | 12 V DC |
System integration
Integration and compatibility
Use these checks to connect DC-20kHz Driver for NanoSpeed™ Variable Optic Attenuator to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Control interface
- Driver series: NanoSpeed variable optical attenuator (VOA) driver · Control input: 0 ~ 5 V analog signal
- Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.
Technical FAQ
Integration questions for DC-20kHz Driver for NanoSpeed™ Variable Optic Attenuator
Does the DC-20kHz Driver for NanoSpeed™ Variable Optic Attenuator require a controller?
Driver series: NanoSpeed variable optical attenuator (VOA) driver · Control input: 0 ~ 5 V analog signal. Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
