Lithium Niobate Fiber Optical Modulator Auto-Bias Controller – Ensure Performance

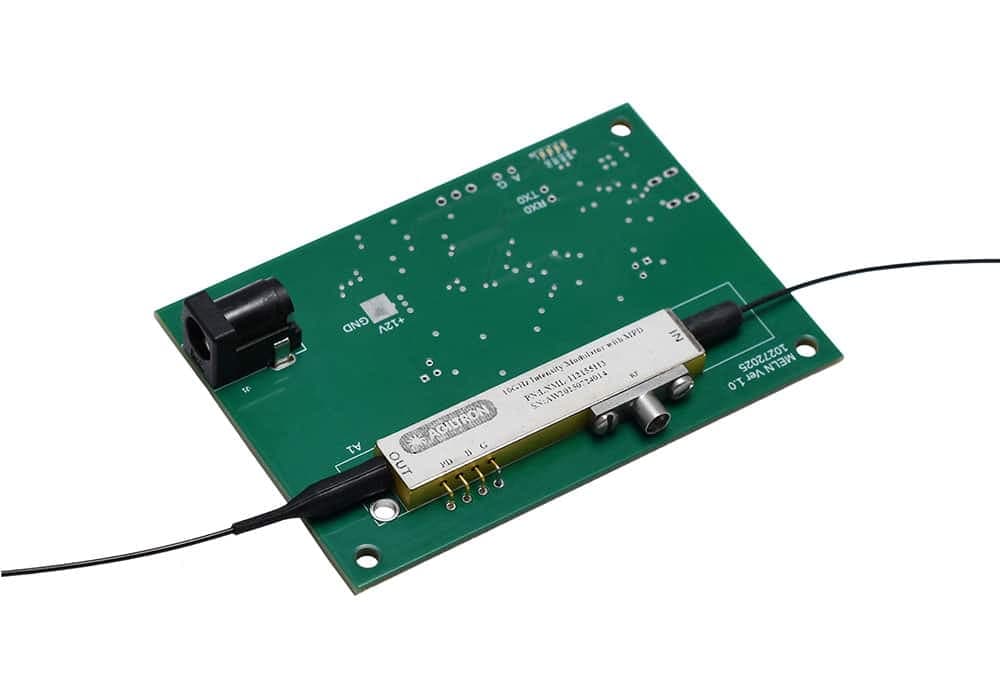

The LNBC series bias controllers enhance the performance of intensity modulators by automatically biasing and stabilizing them at the quadrature point. This is achieved by injecting a low-frequency, low-amplitude dither signal and using built-in photodetectors to form a feedback loop for bias control. This loop helps maintain optimal performance and minimize temperature dependence. The bias is applied via an integrated microheater. The LNBC is designed for use with thin-film lithium niobate modulators that have integrated detectors and microheaters inside the modulator.
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
Part number: LNBC-11Q111111
Configuration: Amplitude · Type: LNML 10G · Function: Quad · RF Amplifier: Non · Power Supply: No
Specifications
Lithium Niobate Fiber Optical Modulator Auto-Bias Controller – Ensure Performance
| Controller type | Lithium niobate (LiNbO3) modulator auto-bias controller (LNBC series) |
| Operation modes | Peak, Null, Quad+, Quad- bias locking |
| Optical output power stability | ±0.05 dB |
| DC bias output voltage | 0 ~ 4.5 V (0.04 V step resolution) |
| Supply voltage | 4.5 ~ 5.5 V DC (5 V typical) |
| Feedback mechanism | Integrated optical tap detector with closed-loop low-frequency pilot tone |
| Maximum modulator optical input | +20 dBm |
| Initialization time | 120 s |
| Host interface | USB / RS-232 / manual interface |
