Mirror Mounts & Optomechanics Configurator
Configure mirror mounts, spatial filters, post holders, adapter sleeves, and base components below. Build your custom configuration to add it to your enquiry list, and we will provide STEP files and technical details.
SUS: SUS304 passivated stainless, ultimate stability (locking adjustable)

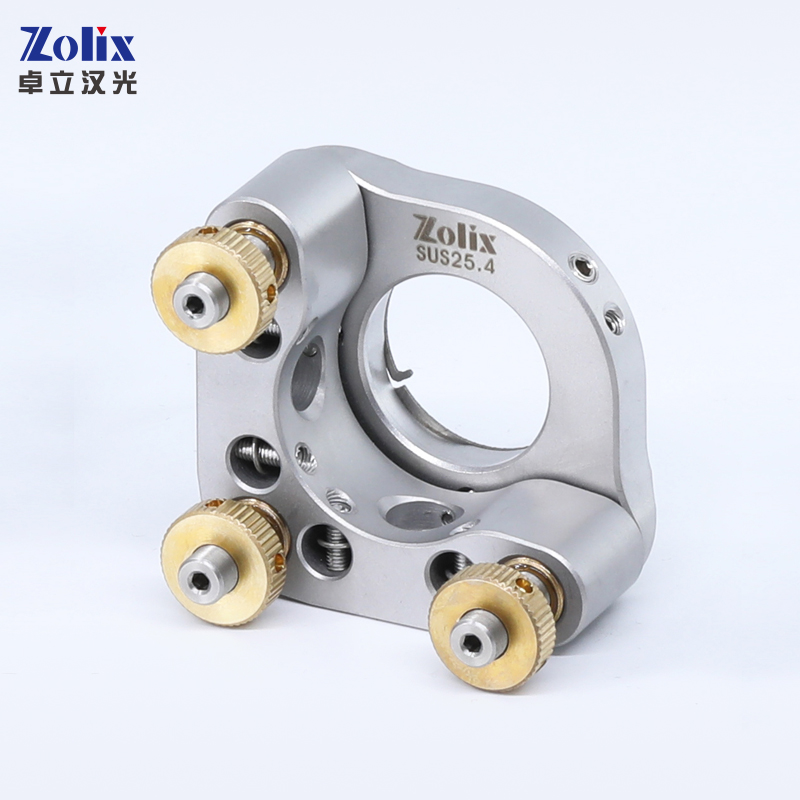

SUS Series Ultra-Stability Stainless Mirror Mount
Identified Model Reference
SUS25.4
Specifications
- Material: Passivated SUS304 Stainless Steel
- Optic Diameter: Ø25.4 mm
- Adjustment range: ±3° pitch/yaw
- High thermal stability for long-term alignment locking
- Compatible with fine adjustment spanners
Why choose this
Ultra-stability stainless body — the choice for maximum thermal and long-term pointing stability in demanding beam paths.
We will match this configuration with Zolix Instruments mirror mounts and provide the relevant STEP files and technical solution.
