PMS-LZME-0510M
Telecentric Macro Zoom Lens, 0.5× to 1.0×
Telecentric macro zoom lens: 0.5× to 1.0× as the working distance changes from 106 to 75 mm, F5 with TV distortion below 0.02 %, for sensors up to 2/3 inch. Adjustable aperture, front filter thread, C-mount.
Premium zoom optics, without the premium price.
Already have a quote for a zoom lens? Send it to us.
Will it suit your camera? Check it in the zoom lens selector.
0.5× – 1.0×
Optical magnification
2:1
Zoom ratio
106 mm (0.5×) to 75 mm (1.0×)
Working distance
2/3 inch
Max. sensor size
Overview
About the PMS-LZME-0510M
A telecentric macro zoom lens for sensors up to 2/3 inch: 0.5× to 1.0× while the working distance changes from 106 to 75 mm, at F5 and with TV distortion below 0.02 %. It combines telecentric, ultra-low-distortion imaging with high resolution, an adjustable working distance and a compact build.
Features
- Ultra-low distortion imaging from a telecentric optical path
- Higher resolution than other zoom lenses at the same magnification
- Adjustable aperture: trade depth of field against resolution as the task requires
- Adjustable working distance, within the field of view the task allows
- Universal filter thread at the front of the lens
- Compact structure that takes little space
Applications
- Semiconductor
- Automation
- Electronic communication
Technical Specifications
PMS-LZME-0510M Specifications
General
| Optical magnification | 0.5× – 1.0× |
|---|---|
| Zoom ratio | 2:1 |
| Working distance | 106 mm (0.5×) to 75 mm (1.0×) |
| Max. sensor size | 2/3 inch |
| Mount | C-mount |
| Zoom | Manual |
| F-number | 5 (adjustable aperture) |
| TV distortion | < 0.02 % |
| Operating environment | −10 °C to +50 °C, 30 to 80 % RH, non-condensing |
Optical performance
The working distance changes with the magnification.
| Magnification | Working distance (mm) | Depth of field (mm) | N.A. | F-number | Resolution (µm) | TV distortion |
|---|---|---|---|---|---|---|
| 0.5× | 106 | 1.6 | 0.05 | 5 | 6.71 | < 0.02% |
| 0.6× | 96 | 1.11 | 0.06 | 5 | 5.59 | < 0.02% |
| 0.7× | 88 | 0.82 | 0.07 | 5 | 4.79 | < 0.02% |
| 0.8× | 83 | 0.63 | 0.08 | 5 | 4.19 | < 0.02% |
| 0.9× | 78 | 0.49 | 0.09 | 5 | 3.73 | < 0.02% |
| 1.0× | 75 | 0.40 | 0.10 | 5 | 3.36 | < 0.02% |
Field of view (mm), diagonal × horizontal × vertical
| Magnification | 2/3" sensor | 1/2" sensor | 1/3" sensor |
|---|---|---|---|
| 0.5× | 22.0 × 17.6 × 13.2 | 16.0 × 12.8 × 9.6 | 12.0 × 9.6 × 7.2 |
| 0.6× | 18.33 × 14.67 × 11.0 | 13.33 × 10.67 × 8.0 | 10.0 × 8.0 × 6.0 |
| 0.7× | 15.71 × 12.57 × 9.43 | 11.43 × 9.14 × 6.86 | 8.57 × 6.86 × 5.14 |
| 0.8× | 13.75 × 11.0 × 8.25 | 10.0 × 8.0 × 6.0 | 7.5 × 6.0 × 4.5 |
| 0.9× | 12.22 × 9.78 × 7.33 | 8.89 × 7.11 × 5.33 | 6.67 × 5.33 × 4.0 |
| 1.0× | 11.0 × 8.8 × 6.6 | 8.0 × 6.4 × 4.8 | 6.0 × 4.8 × 3.6 |

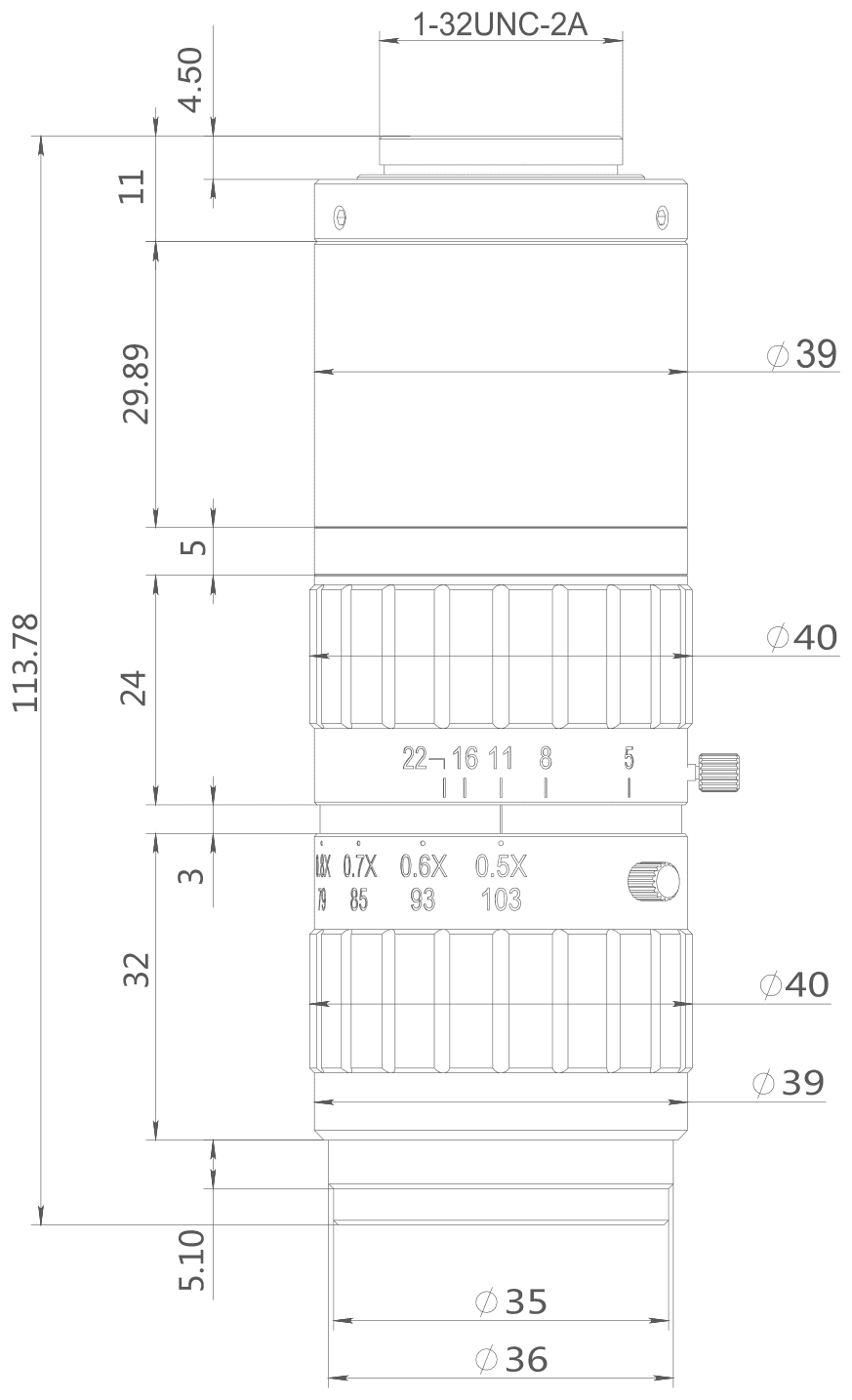

Drawings
Dimensions and System Components
Datasheet
Full specification sheet for the PMS-LZME-0510M.
