Download brochureNexAtom / Custom input/output timing board
16-in / 8-out Time Tagger Board
Bring acquisition and synchronized outputs together.
A custom board for experiments and embedded instruments requiring multiple timing inputs alongside synchronized outputs.
Precisometer · Exclusive European distributor

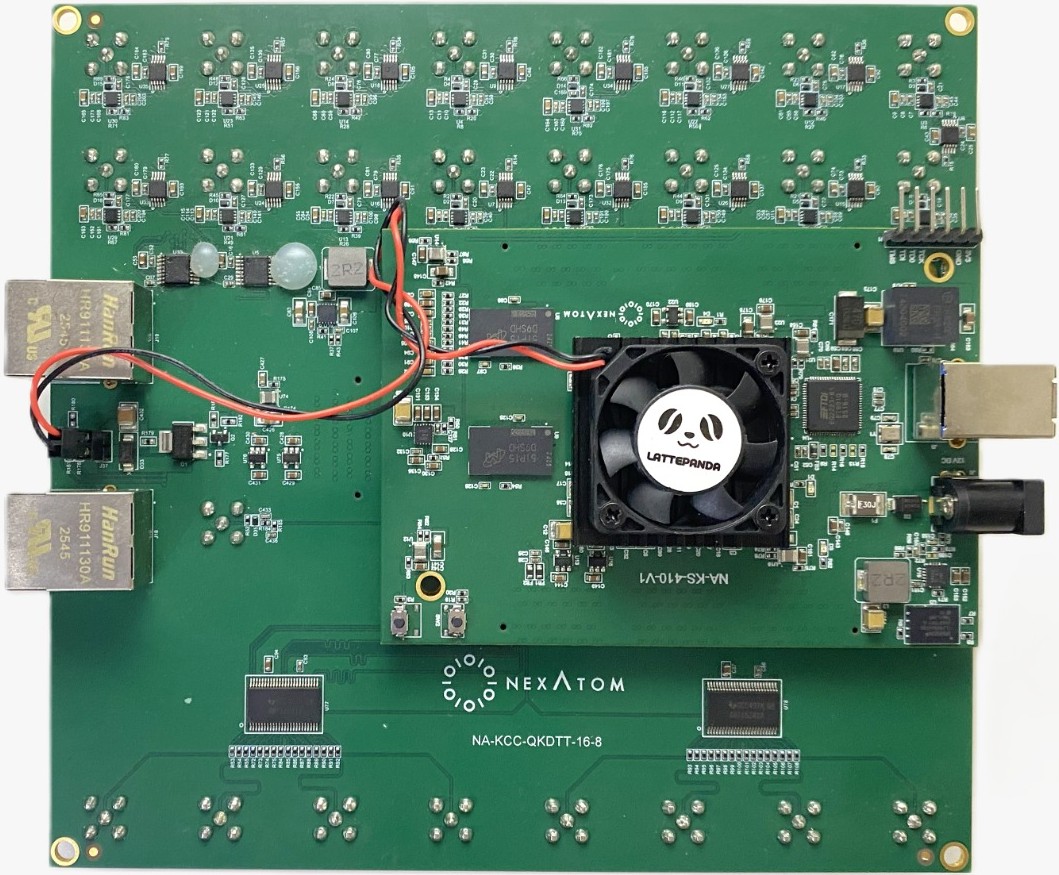

NEXATOM / ORIGINAL PRODUCT IMAGE16Input channels
8Output channels
Board-levelIntegration format
CustomConfiguration on request
Built around your measurement
Bring inputs and outputs into your timing system.
Start with a board architecture that brings sixteen timing inputs and eight outputs into one custom platform. It is an option for experiments and embedded instrumentation that need acquisition alongside synchronized outputs. Precisometer works with NexAtom to clarify the interface and timing behaviour your setup requires.
Synchronized input/outputCustom timing systemsInstrument integration
Published specifications
Manufacturer source Know what you’re specifying.
Board specification
- Input channels
- 16
- Output channels
- 8
- Format
- Custom board
- Timing & interface
- Configuration on requestThe public product page does not publish bin width, jitter, dead time or output timing specifications.
Source information reviewed 24 October 2026. Performance, compatibility, delivery and the supplied configuration are confirmed with your quotation.
Keep the details to hand
Resources for your next step.
Time-tagging application note
Signal compatibility, timing budgets and coincidence workflows. Uses UTT810 as the worked instrument; custom-board specifications are separate. PDF · 3 pages.
Download application noteBoard documentation & software
Confirm documentation, host interfaces and software for this board configuration with Precisometer.
Manufacturer product informationYour European point of contactLet’s configure
Let’s configure
your timing board.
Precisometer is NexAtom’s exclusive European distributor. Tell us about your application, integration needs and budget for a price-competitive quotation.
Timing specifications, output behaviour and software integration are confirmed for your configuration. Customization is discussed with NexAtom for your project.
