SLE-VI multi-channel light engine
SLE-VI combines 6 optical channels with LED peaks at 365 nm/440 nm/470 nm/555 nm/630 nm/730 nm. Compare channel powers, control, optical delivery and cooling as one illumination system.
Compare the details
Technical specifications
Compare the listed configurations and match the specifications to your setup.
Jump to a specification table (2)
22 specification rows.
Model specifications
16 entries| Parameter | Specification |
|---|---|
| Model | SLE-VI |
| Channel count | 6 |
| Published spectral range | 360-750 nm |
| LED peak wavelengths | 365 nm/440 nm/470 nm/555 nm/630 nm/730 nm |
| Output power | 800 mW@365 nm; 700 mW@440 nm; 700 mW@470 nm; 700 mW@555 nm; 500 mW@630 nm; 500 mW@730 nm; (Output power per source channel is dependent on filter bandpass and light guide diameter) |
| Intensity control | Four independent controls, 0-100% dimming, accuracy of 1% |
| Rise / fall time (10-90%) | Rising/ Descending Edge (10%-90%) <50 microseconds |
| Operating Mode | Continuous Output, Default TTL Modulation (Analog Modulation Optional) |
| Computer control | Support RS232 host computer control |
| Control Options | SMA - External trigger TTL signal (external trigger analog modulation optional); Serial Interface (RS232) - Light Output ON/OFF and brightness adjusting; Manual control box (optional) - Light Output ON/OFF and brightness adjusting |
| Optical delivery | 3 mm diameter liquid optical waveguide (LLG) |
| Operating Temperature | 10-35°C |
| Power input | 100-240VAC; 50/60HZ |
| Cooling | Air Cooled |
| Housing dimensions (reference) | 264 mm×129 mm×199 mm (Reference) |
| Source warranty term | 2 Years |
Scroll within the table to view every row.
Customized channel choices
6 entriesScroll horizontally to compare all columns
| Channel | Selectable wavelength | Minimum power in wavelength order |
|---|---|---|
| 1 / UV | 365 / 385 / 405 nm | >=700 / >=700 / >=700 mW |
| 2 / Blue 1 | 440 nm | >=700 mW |
| 3 / Blue 2 | 470 nm | >=700 mW |
| 4 / Green | 525 / 555 / 579 nm | >=600 / >=600 / >=400 mW |
| 5 / Red | 630 / 650 nm | >=500 / >=500 mW |
| 6 / Infrared | 730 nm | >=300 mW |
Choose one of the listed wavelengths for each channel. These are alternative custom configurations, not additional simultaneous channels in the standard product.
Spectrum & mechanical references

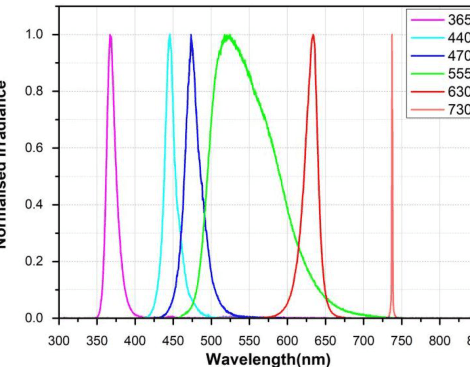

Relative emission spectrum

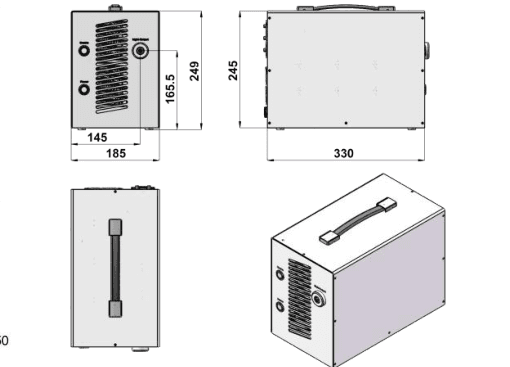

Mechanical drawing
