SLE-I 579 nm / 1000 mW single-channel light engine
A single-channel LED light engine configured for 579 nm at 1000 mW. The assembly integrates intensity control, electronics and air cooling; match the published optical delivery and electrical interfaces to your instrument.
Compare the details
Technical specifications
Compare the listed configurations and match the specifications to your setup.
15 specification rows.
Model specifications
15 entries| Parameter | Specification |
|---|---|
| Model | SLE-I |
| Channel count | 1 |
| Wavelength | 579 nm |
| Output power | 1000 mW |
| Intensity control | 0-100% dimming, accuracy of 1% |
| Rise / fall time (10-90%) | Rising/ Descending Edge (10%-90%) <50 microseconds |
| Operating Mode | Continuous Output, Default TTL Modulation (Analog Modulation Optional) |
| Computer control | Support RS232 host computer control |
| Control Options | SMA - External trigger TTL signal (external trigger analog modulation optional); Serial Interface (RS232) - Light Output ON/OFF and brightness adjusting; Manual control box (optional) - Light Output ON/OFF and brightness adjusting |
| Optical delivery | 3 mm diameter liquid optical waveguide (LLG) |
| Operating Temperature | 10-35°C |
| Power input | DC12 V |
| Cooling | Air Cooled |
| Housing dimensions (reference) | 171mmx114mmx100 mm (Reference) |
| Source warranty term | 2 Years |
Scroll within the table to view every row.
Spectrum & mechanical references

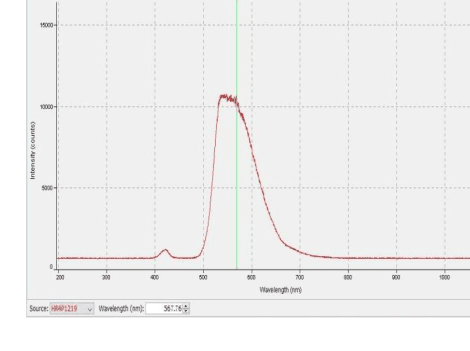

Relative emission spectrum

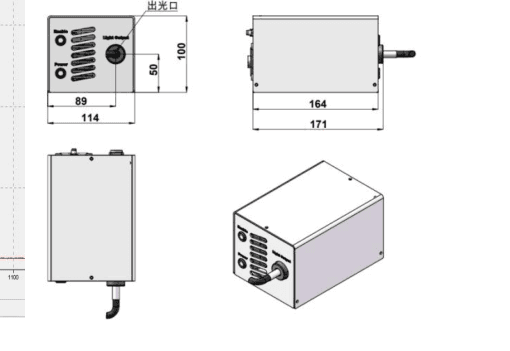

Mechanical drawing
