SLE-I
SLE-I 525 nm / 1100 mW single-channel light engine
A single-channel LED light engine configured for 525 nm at 1100 mW. The assembly integrates intensity control, electronics and air cooling; match the published optical delivery and electrical interfaces to your instrument.
Compare the details
Technical specifications
Compare the listed configurations and match the specifications to your setup.
15 specification rows.
Model specifications
15 entries| Parameter | Specification |
|---|---|
| Model | SLE-I |
| Channel count | 1 |
| Wavelength | 525 nm |
| Output power | 1100 mW |
| Intensity control | 0-100% dimming, accuracy of 1% |
| Rise / fall time (10-90%) | Rising/ Descending Edge (10%-90%) <50 microseconds |
| Operating Mode | Continuous Output, Default TTL Modulation (Analog Modulation Optional) |
| Computer control | Support RS232 host computer control |
| Control Options | SMA - External trigger TTL signal (external trigger analog modulation optional); Serial Interface (RS232) - Light Output ON/OFF and brightness adjusting; Manual control box (optional) - Light Output ON/OFF and brightness adjusting |
| Optical delivery | 3 mm diameter liquid optical waveguide (LLG) |
| Operating Temperature | 10-35°C |
| Power input | DC12 V |
| Cooling | Air Cooled |
| Housing dimensions (reference) | 171mmx114mmx100 mm (Reference) |
| Source warranty term | 2 Years |
Scroll within the table to view every row.
Spectrum & mechanical references

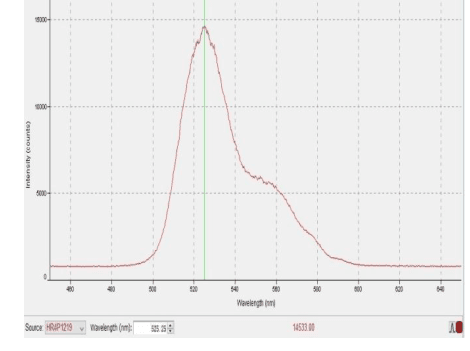

Relative emission spectrum

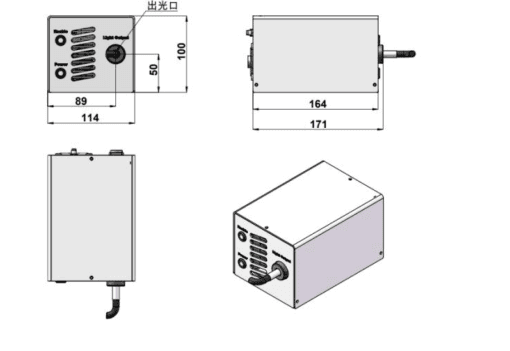

Mechanical drawing
Complete the illumination path
01
Define the spectrum
Start with the absorption, excitation or inspection band. Use the model’s wavelength bin or LED peaks and its FWHM; a family range describes separate configurations.
02
Choose the optical path
Use a fiber-coupled module for remote delivery, a light engine for a controlled source assembly, or a PCB emitter when your instrument provides the driver, optics and cooling.
03
Match power to the interface
For fiber output, choose core diameter and numerical aperture before reading the power column. For engines, check the lightguide or bundle and filter conditions. PCB emitter power is not a fiber-delivered rating.
04
Specify control and cooling
Match current, voltage compliance and heat removal to the exact device. Select TTL, analog or RS232 only where specified. Include mounting, connector and synchronization requirements in your enquiry.
