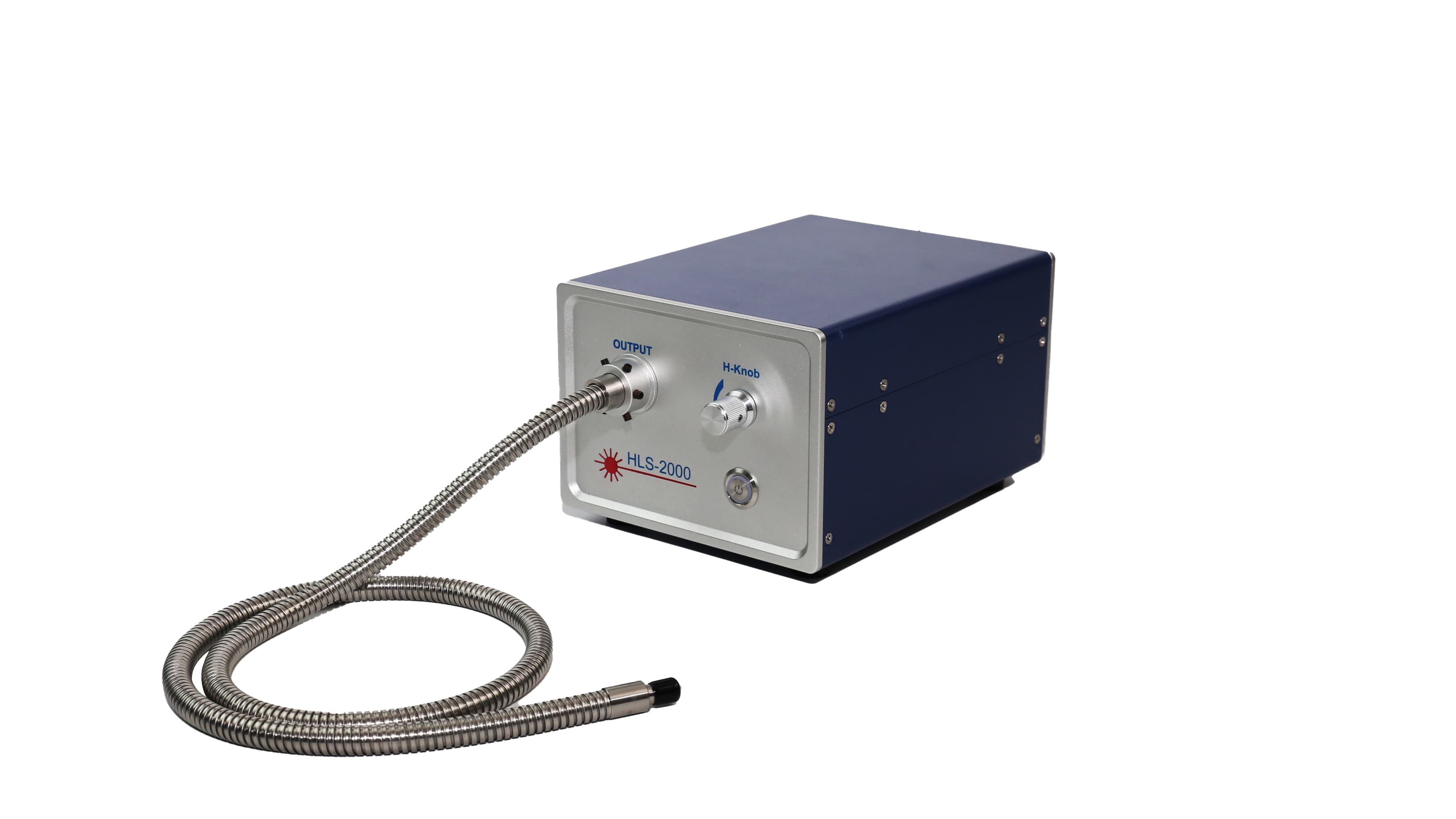

HLS-2000 Halogen Tungsten Light Source
Wide range of continuous spectrum (400-1600nm), can be used for brightfield microscopy, laboratory and illumination.
Product Specifications
HLS-2000 Halogen Tungsten Light Source
7 specification rows
Specifications
| Parameter | Value |
|---|---|
| HLS-2000 halogen tungsten light source is a high-intensity fiber-coupled light source, suitable for VIS-NIR (400 -1600 nm), can be used for brightfield microscopy, laboratory and illumination applications. The adjustable knob of the instrument allows the output light intensity to be changed from 0-100%, the power supply provides a stable voltage and current to the bulb while maximizing the life of the bulb. | - |
| - | Features: The light source is continuously output from 400nm-1600nm. High power output of tungsten halogen lamp, output intensity can be adjusted from 0-100%. The light source is the output power of the fiber bundle. The light source has the characteristics of stable output. |
Specifications
| Parameter | Value |
|---|---|
| Model | HLS-2000 |
| Spectrum Range | 400 nm - 1600 nm |
| Color Temperature | 32 00K |
| Lifetime of Bulb | ~1000 hour |
| Rated Power of Bulb | 150 W |
