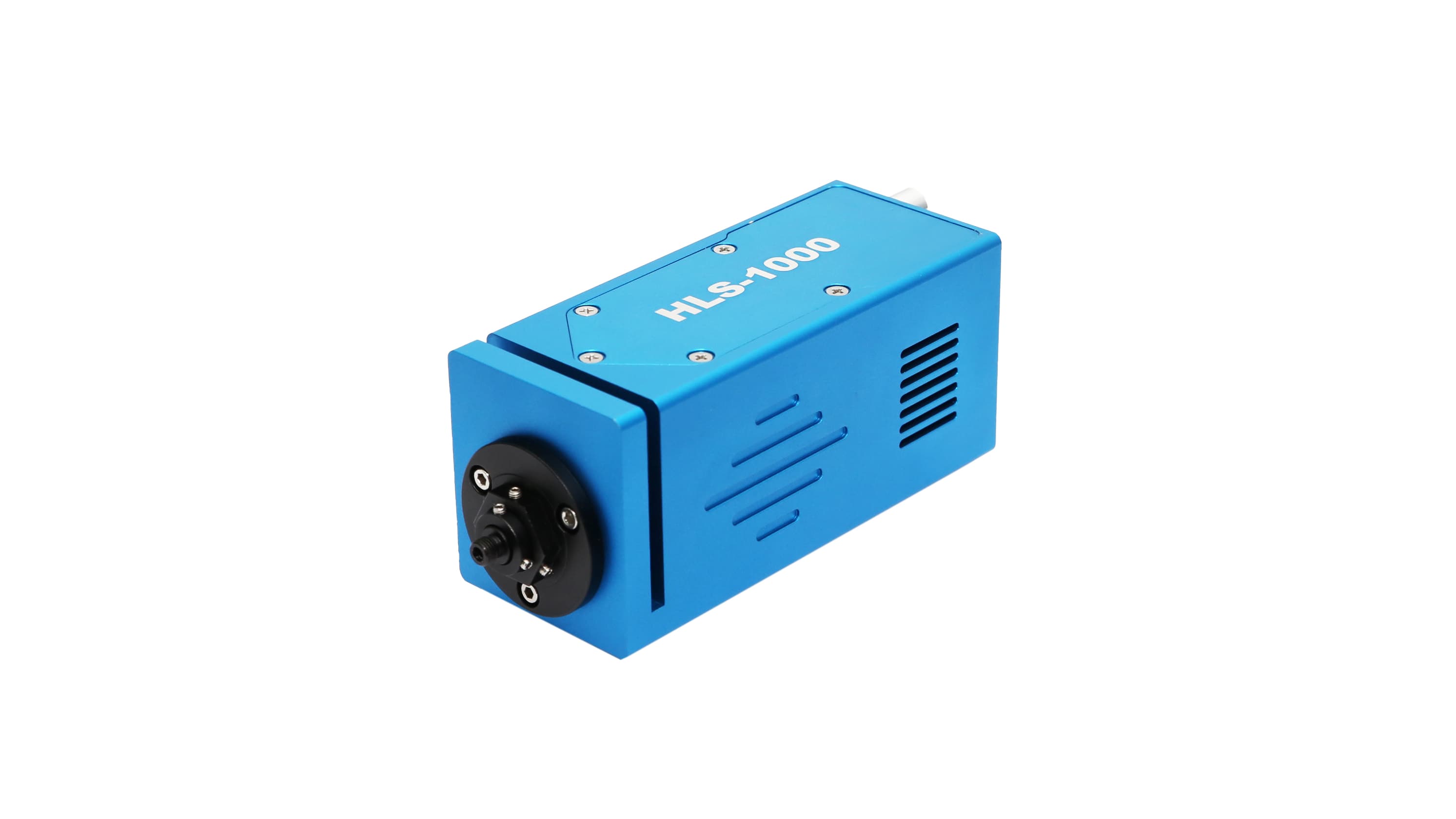

HLS-1000 Halogen Tungsten Light Source
Wide range of continuous spectrum (340-2000nm), can be used for sample detection of absorbance and transmittance.
Product Specifications
HLS-1000 Halogen Tungsten Light Source
17 specification rows
Specifications
| Parameter | Value |
|---|---|
| Model | HLS-1000 |
| Spectrum Range | 340 nm - 2000 nm |
| Dimensions (mm) | 153.70×63.5×55 |
| Weight | 0.63 kg |
| Energy Consumption | ~8 W |
| Power Supply Requirements | 12 V DC 4A stabilized voltage supply |
| Color Temperature | 2800K |
| Lifetime of Bulb | ~2, 000 hour |
| Rated Power of Bulb | 5 W |
| Connector | SMA 905 |
| Output Power | 6.0 mW |
| Warm up Time | 10 minutes |
| Working Temperature | 5-35°C |
Product variants
| Parameter | Value |
|---|---|
| - | HLS-1000 halogen tungsten light source is a versatile light source, suitable for VIS-NIR (340 nm-2000 nm), can be used for sample detection in absorbance transmittance. The light source can adjust SMA905 connector. The cooling fan cools and stabilizes the light source. Filter can be embedded in groove at light exit port. |
| Dimensions of light source | Installation hole map at the bottom of the light source |
| In this experiment, the HLS-1000 halogen-tungsten light source is connected to a three-channel sample cell and a cuvette by optical fiber. The light beam passes through the cuvette and another fiber is connected to Aurora 4000 high-resolution spectrometer which is produced by our company. The transmittance of the liquid is obtained by software operation. | - |
| In this experiment, a specially designed Y-type fiber is connected to the HLS-1000 halogen tungsten light source, and the receiver is connected with the Aurora 4000 high-resolution spectrometer which is produced. The probe part of the optical fiber is fixed on the optical fiber support, facing to the test samples. The reflectivity of the object can be obtained by software operation. | - |
