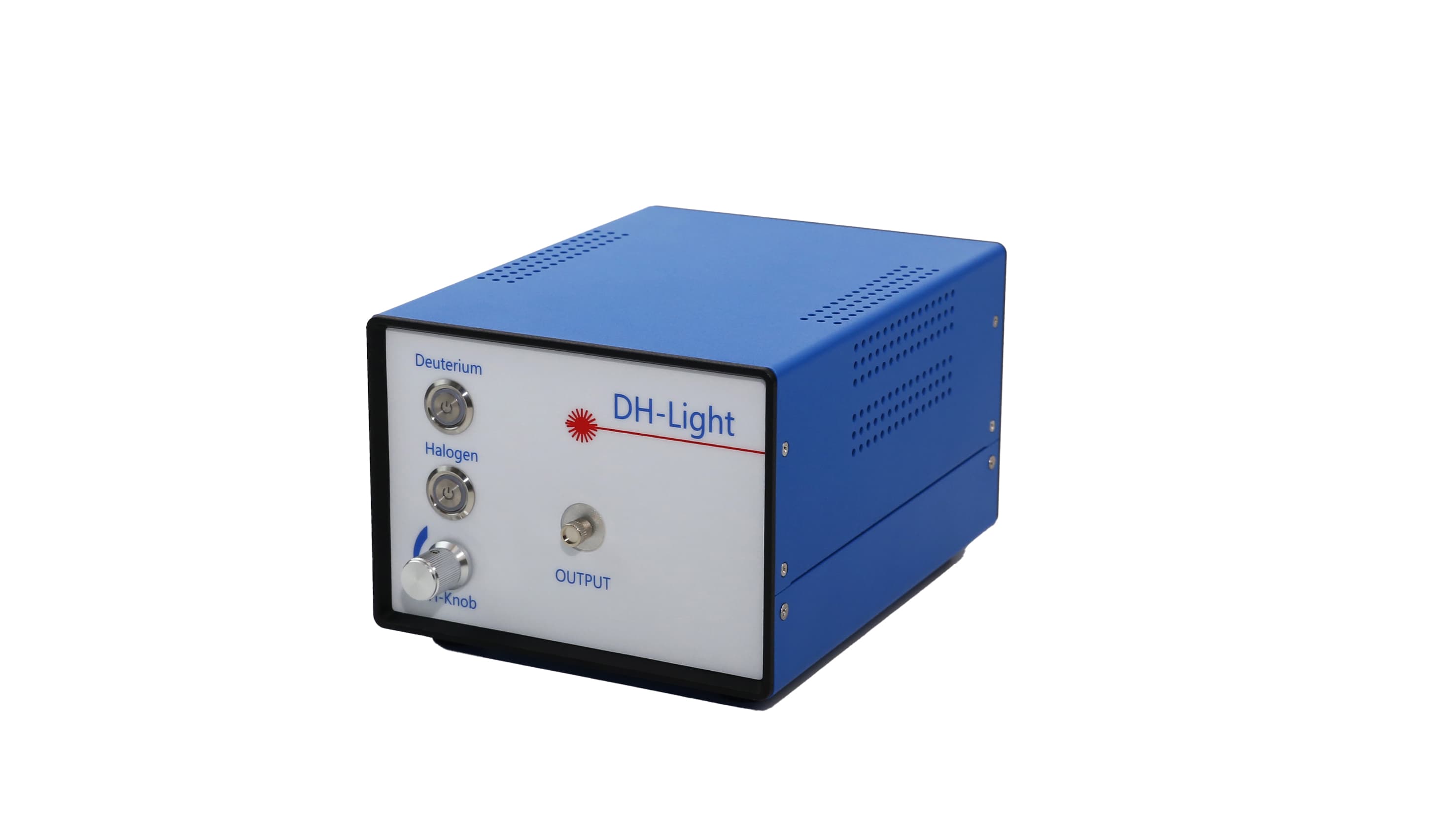

D-Light Deuterium Light Source
The continuous spectral range is continuously output from 185 nm to 700 nm, the D-Light deuterium light source can be used as a reference light source for absorbance, transmittance and reflectance measurements.
Product Specifications
D-Light Deuterium Light Source
16 specification rows
Specifications
| Parameter | Value |
|---|---|
| Model | D-Light |
| Spectrum Range | 185 nm - 700 nm |
| Dimensions (mm) | 201×150×110 |
| Power Supply Requirements | 85-250V AC 50-60Hz |
| Rated Power of Bulb | 25W |
| Lifetime of Bulb | ～1000h |
| Connector | SMA905 / FC |
| Output Power | 0.1mW |
Specifications
- High Resolution Spectrometer Aurora4000
- Resolution is up to 0.1 nm (FWHM) Applications: Laser wavelength analysis; LED sorting; Chemical research, etc.
- Fiber
- Length: 1m, 2m (optional) Connector: SMA905 Core diameter: 200μm, 400μm (optional)
- 4 Way Cuvette Holder
- Dimensions: 70*70*25mm Optical path: 10*10mm Connector: SMA905 It can be used with cuvette for transmittance and fluorescence detection.
- Optical Signal Collector
- Diameter: 5mm Focal length: 6mm Model: L-UV; Wavelength >200nm Model: L-VIS; Wavelength >350nm
Need this configured?
Share wavelength range, measurement target, detector needs, sample geometry, software and interface requirements, and we will qualify the matching configuration.
