Full-Spectrum Optical Parameter Testing System

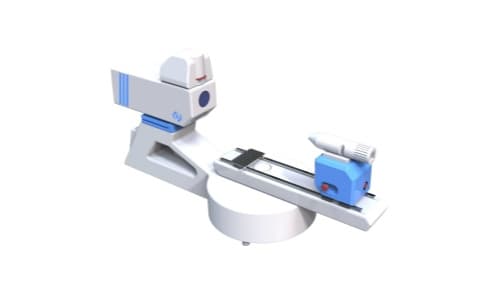

Key components: collimator, multi-spectral target generator, high-precision rotation stage, and image analyzer on an optical platform.
Product Specifications
Full-Spectrum Optical Parameter Testing System
25 specification rows
Specifications
- Full-Spectrum Optical Parameter Testing System
- The Full-Spectrum Optical Parameter Testing System covers spectral ranges from ultraviolet (UV), visible, short-wave infrared (SWIR), mid-wave infrared (MWIR) to long-wave infrared (LWIR). It consists of a collimator system, a multi-spectral target generator module, a high-precision sample rotation stage system, an image analyzer, and an optical platform, with a maximum effective aperture of 600 mm. Its core testing parameters include: on-axis / off-axis MTF, defocus MTF, effective focal length, lateral chromatic aberration, astigmatism, field curvature, depth of field, distortion, relative illumination, encircled energy, among others. Customers can select and customize the collimator system according to specific spectral testing requirements. Parameters of the high-precision rotation stage―such as maximum test angle, grating ruler resolution, and control mode―can also be tailored to meet application needs.
- Performance advantages： Full spectrum coverage High uniformity、Strong energy High Precision Modular design Highly scalable and diversified customization solutions - Application Area: Biomedicine Communications Materials Science Environmental Sensing Display & Lighting
- ■ The models of Collimator The following configurations can be customized
- No. - Model - Diameter(mm) - Focal Length(mm) - Optical axis height(mm) - Surface precision
- 1 - COL-200 - 200 - 2000 - 450 / 500 - ≤λ / 50@632.8nm (RMS primary mirror)
- 2 - COL-250 - 250 - 2000 / 2500 - 450 / 500 - ≤λ / 50@632.8nm (RMS primary mirror)
- 3 - COL-300 - 300 - 3000 / 3500 - 450 / 500 - ≤λ / 50@632.8nm (RMS primary mirror)
- 4 - COL-350 - 350 - 3500 - 450 / 500 - ≤λ / 50@632.8nm (RMS primary mirror)
- 5 - COL-400 - 400 - 4000 - 450 / 500 - ≤λ / 50@632.8nm (RMS primary mirror)
- 6 - COL-500 - 500 - 5000 - 450 / 500 - ≤λ / 50@632.8nm (RMS primary mirror)
- 7 - COL-600 - 600 - 6000 - 500 - ≤λ / 50@632.8nm (RMS primary mirror)
- ■ The performance parmeter The following parameters include customizable items
- Parameter - UV - VIS - SWIR - MWIR - LWIR
- Optical Setup - Infinite - Finite / Infinite - Infinite - Infinite - Infinite
- Max. Spatial frequency - 300lp / mm - 500lp / mm - 150lp / mm - 150lp / mm - 150lp / mm
- EFL Accuracy - ±0.2%
- Entrance pupil diameter - 5mm~2000mm (Customizable)
- Max. Diameter - 600mm (Customizable)
- Max. Off-Axis Angle - ±120°
- MTF Accuracy - ±0.02MTF(on-axis)；±0.03MTF(off-axis)
- MTF Repeatability - ±0.01MTF
- Load - 50kg (Customizable)
- ■ Automated testing
- Through-Focus MTF Module - Encircled Energy Interface - Field Curvature & Astigmatism
Need this configured?
Share wavelength range, measurement target, detector needs, sample geometry, software and interface requirements, and we will qualify the matching configuration.
