See the spatial distribution
Inspect two-dimensional intensity maps, three-dimensional beam profiles and transverse intensity sections to assess spot shape and alignment.
Microfocus series
CN0310VIS-XVW Beam Profiler
CN0310VIS-XVW microfocus series beam profiler. Spectral range: 400-800 nm. Beam-spot range: 5 μm-0.5 mm. Check power, attenuation and interface conditions for the selected configuration.
- Spectral range
- 400-800 nm
- Spot range
- 5 μm-0.5 mm
- Data interface
- USB3.0
Compare the details
Technical specifications
Compare the listed configurations and match the specifications to your setup.
19 specification rows.
Model specifications
19 entries| Parameter | Specification |
|---|---|
| Model | CN0310VIS-XVW |
| Detection Wavelength | 400-800 nm |
| Beam Spot Detection Range | 5 μm-0.5 mm |
| Camera Effective Area | φ5 mm |
| Magnification | 10x |
| Resolution | 0.5 μm |
| Exposure Time | 0.05 ms-500 ms |
| Maximum Power | 0.5 W@minimum focal spot |
| Lowest Effective Response | 0.136μW/cm² [1] |
| Built-in Attenuation | OD0/OD1/OD2/OD3/OD4 |
| Interface | USB3.0 |
| Processing Frame Rate | 5-10 fps [2] |
| External Trigger | Supported |
| Dimensions | Refer to mechanical drawing |
| Beam Input Orientation | Vertical/Horizontal |
| Defocus Range | -1 mm , +1.3 mm |
| Operating Environment | Temperature<0-35°C [3] , relative humidity<60% |
| Operational Conditions | Software environment: Windows 10/11, 64 bit, pre installed with MS Office or WPS, Hardware configuration: ≥8GB memory, CPU clock speed ≥2.5G, core ≥4, recommended i5 or above equivalent models, optimal display resolution 1920 * 1080 |
| Weight | <1.5 Kg |
Scroll within the table to view every row.
Configuration notes and measurement conditions
- [1] The described parameter indicates the camera's response when the exposure time is set to 100 milliseconds@633 nm. [2] The parameter mentioned is the frame rate at a resolution of 5,000,000 pixels. [3] This is the working temperature, if it involves directivity test, the temperature should be controlled at 15-25°C.
- Read total power, power density and pulse-energy-density limits with the stated attenuation, wavelength, beam size, cooling and detection time.

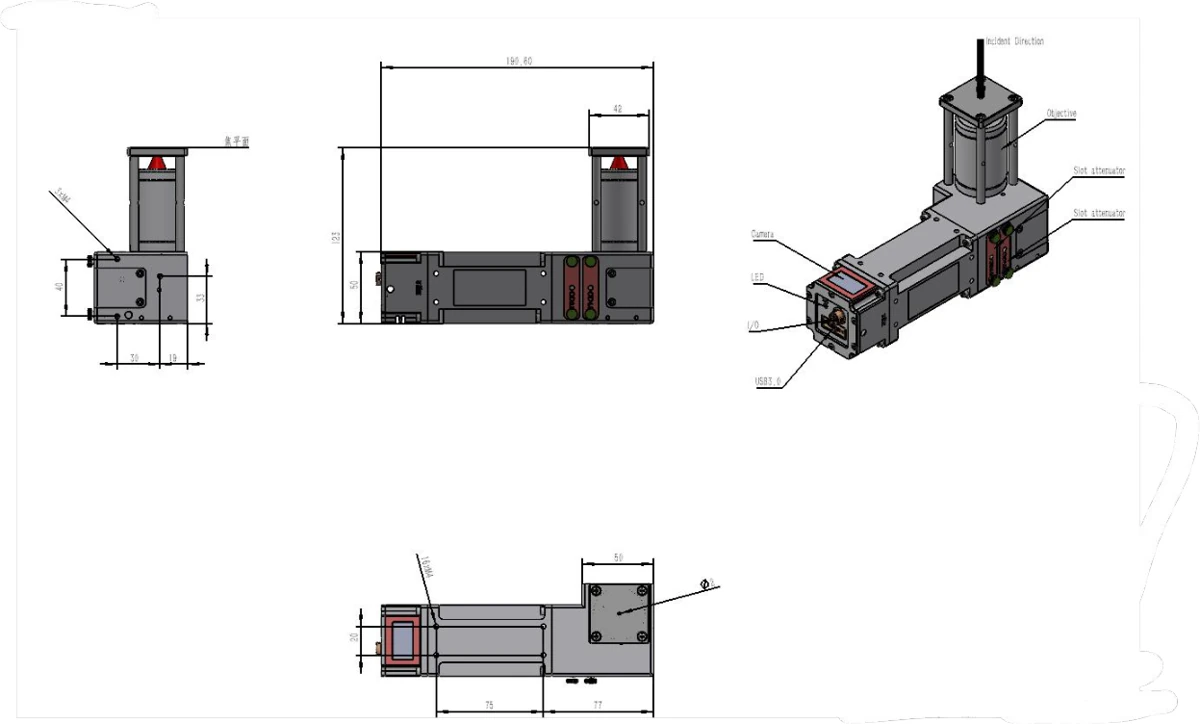

Mechanical drawings
From image to measurement
Beam analysis and software
Illustrative software output. Results, analysis functions and acquisition rates depend on the selected hardware, software and beam conditions.
Follow beam characteristics
Analyse beam diameter, ellipticity and position. Suitable configurations support multi-spot monitoring, image stitching and pointing-stability analysis; acquisition and processing rates are model dependent.
Choose the measurement configuration
Check exposure, shutter and external-trigger support for your timing requirements. The 1000 W system specifies beam analysis and optional automatic M² workflows; these capabilities require the stated software and hardware configuration.
Specify the complete measurement
01
Match the wavelength
Choose the exact detection band and the attenuation or window configuration. A family range combines different models; it does not make every instrument broadband.
02
Resolve the spot
Compare the minimum detectable spot with the maximum usable beam size. Sensor pixel size, optical magnification and quoted measurement resolution describe different quantities. Gaussian TEM00 limits may be smaller than the sensor aperture.
03
Check power and exposure
Read total power, irradiance and pulse-energy-density limits together. Include pulse duration, repetition rate, beam diameter, cooling and the permitted measurement time. Attenuation conditions belong to the quoted limit.
04
Plan acquisition and alignment
Match USB or GigE, trigger support, software requirements and beam-entry geometry. Divergence needs measurements at known axial positions; automated M² analysis requires the appropriate scan hardware and software configuration.
Technical FAQ
Configuration questions for CN0310VIS-XVW
Does the largest model power rating apply to every laser?
No. The rating depends on wavelength, beam diameter, attenuation, cooling and operating time. For example, the 500 W configurations distinguish 200 W, 300 W and 500 W operation by focused-spot size and measurement time. The 1000 W model specifies continuous operation with water cooling.
Is the sensor aperture the maximum Gaussian beam diameter?
Not always. Several models give a smaller TEM00 or 1/e² beam limit than the geometric sensor range. Read the model footnotes and central-incidence conditions alongside the main table.
Can a single camera image measure divergence or M²?
A single profile gives the transverse distribution at one plane. Divergence and M² require measurements along the propagation axis, suitable optics and a defined analysis method. Confirm the translation, attenuation and software configuration for that workflow.
Which computer and interface are required?
Most listed models specify Windows 10 or 11, 64-bit, with MS Office or WPS, at least 8 GB RAM and a processor of at least 2.5 GHz with four or more cores. USB3.0, GigE, 10GigE and trigger availability vary by model; use its exact specification.
Technical documents
Keep the optical, electrical, mechanical and operating specifications together for your configuration.
DatasheetMatch the profiler to your laser
Include wavelength, beam size, CW or pulsed operation, pulse energy, repetition rate, power, exposure time, cooling and the measurements you need.
