High-power series

CN0104NIR-W500-AZ20L Beam Profiler

CN0104NIR-W500-AZ20L high-power series beam profiler. Spectral range: 1030-1080 nm. Beam-spot range: 20 μm to 4 mm; TEM00 limit: 2.6 mm. Check power, attenuation and interface conditions for the selected configuration.

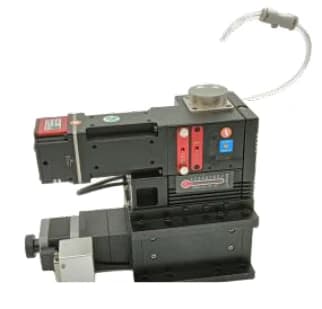

CN0104NIR-W500-AZ20L beam profiler assembly
CN0104NIR-W500-AZ20L · mounting and optical configuration depend on the selected assembly.
Spectral range
1030-1080 nm
Spot range
20 μm to 4 mm; TEM00 limit: 2.6 mm
Data interface
GigE

Compare the details

Technical specifications

Compare the listed configurations and match the specifications to your setup.

Jump to a specification table (7)

43 specification rows.

Model specifications

1 entry
CN0104NIR-W500-AZ20L Beam Profiler: Model specifications
ParameterSpecification
ModelCN0104NIR-W500-AZ20L

Overall parameters

7 entries
CN0104NIR-W500-AZ20L Beam Profiler: Overall parameters
ParameterSpecification
Detection Wavelength Range1030-1080 nm
Operating ModeMotorized Adjustment
Adjustment Range±10 mm
Parfocal ToleranceParfocal
Operational ConditionsSoftware environment: Windows 10/11, 64 bit, pre installed with MS Office or WPS, Hardware configuration: ≥8GB memory, CPU clock speed ≥2.5G, core ≥4, recommended i5 or above equivalent models, optimal display resolution 1920 * 1080
Size239.1*120*200 mm
Weight<5 Kg

Basic parameters

15 entries
CN0104NIR-W500-AZ20L Beam Profiler: Basic parameters
ParameterSpecification
Sensor Pixel Size1.67 μm
Sensor Maximum Area6.4 mm×4.5 mm
Minimum Beam Spot Size20 μm
Maximum Beam Spot Size4 mm [1]
Maximum Acceptance Angle±2.5°@On-Axis Incidence±0.05 mm
Minimum Power Measurement0.1 W@50 μm
Maximum Power Measurement200 W, Converge Light≥20 μm, CW 300 W, Converge Light≥50 μm, CW 500 W, Converge Light≥100 μm, CW
Defocus Measurement Range-10 mm-+5 mm, Calculated based on a parfocal distance of 96 mm
Light Input OrientationVertical
Detection Time≤1minute@500 W ≤3minutes@300 W Continuous Operation@200 W
AttenuatorOD0/OD1/OD2/OD3/OD4.5
InterfaceGigE
External TriggerSupported
Cooling SystemAir cooling; Water cooling, flow rate 10 L/min, water temperature 20-25°C, cooling capacity 0.5-1KW, head 10-25 meters
Operating EnvironmentTemperature<15-25°C, relative humidity<60%

Scroll within the table to view every row.

Motorized Translation Stage

7 entries
CN0104NIR-W500-AZ20L Beam Profiler: Motorized Translation Stage
ParameterSpecification
Stage Dimensions120×120 mm
Travel Range20 mm
Max. Velocity8 mm/s
Repeatability±0.001 mm
Positioning Accuracy0.03 mm
Resolution (Full/Half step)0.001/0.0005 mm
quantity1

Adapter Plate (L)

3 entries
CN0104NIR-W500-AZ20L Beam Profiler: Adapter Plate (L)
ParameterSpecification
Dimensions120×20.5×14 mm
Weight<0.05 Kg
quantity1

Adapter Plate (R)

3 entries
CN0104NIR-W500-AZ20L Beam Profiler: Adapter Plate (R)
ParameterSpecification
Dimensions120×20.5×14 mm
Weight<0.05 Kg
quantity1

Motor Controller

7 entries
CN0104NIR-W500-AZ20L Beam Profiler: Motor Controller
ParameterSpecification
Dimensions190×128×56.1 mm
Power InputDC24V 2A
Joystick Manual ControlSupported
Absolute PositioningSupported
Relative PositioningSupported
Weight<1 kg
quantity1

Configuration notes and measurement conditions

  • [1] For TEM00 mode beam, the center incidence has a spot size of 2.6 mm.
  • Power handling is conditional on the specified wavelength, incident spot size, cooling and detection time. A peak model number is not a continuous operating rating for every beam.
  • Read total power, power density and pulse-energy-density limits with the stated attenuation, wavelength, beam size, cooling and detection time.

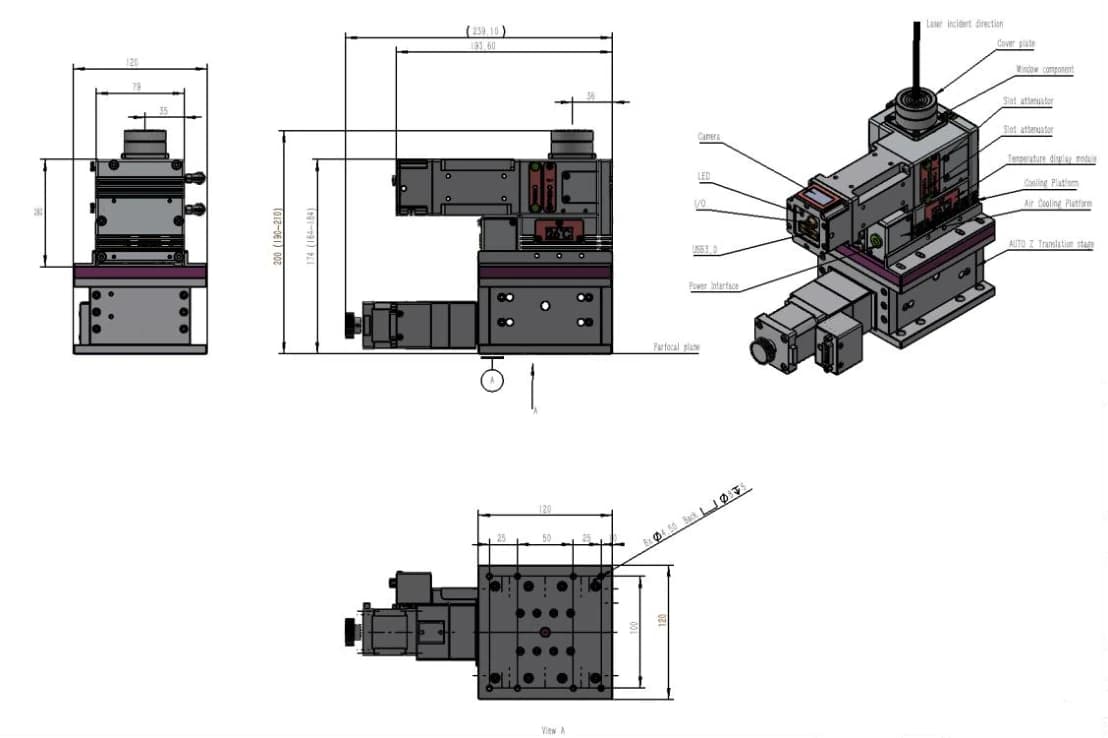

Mechanical drawings

Mechanical outline and mounting dimensions in millimeters
Mechanical outline · dimensions in mm

From image to measurement

Beam analysis and software

Example false-colour spatial intensity distribution
Two-dimensional intensity map
Example three-dimensional beam intensity profile
Three-dimensional beam profile
Example software views of beam position, transverse intensity and stability
Beam position and transverse analysis

Illustrative software output. Results, analysis functions and acquisition rates depend on the selected hardware, software and beam conditions.

See the spatial distribution

Inspect two-dimensional intensity maps, three-dimensional beam profiles and transverse intensity sections to assess spot shape and alignment.

Follow beam characteristics

Analyse beam diameter, ellipticity and position. Suitable configurations support multi-spot monitoring, image stitching and pointing-stability analysis; acquisition and processing rates are model dependent.

Choose the measurement configuration

Check exposure, shutter and external-trigger support for your timing requirements. The 1000 W system specifies beam analysis and optional automatic M² workflows; these capabilities require the stated software and hardware configuration.

Specify the complete measurement

  1. 01

    Match the wavelength

    Choose the exact detection band and the attenuation or window configuration. A family range combines different models; it does not make every instrument broadband.

  2. 02

    Resolve the spot

    Compare the minimum detectable spot with the maximum usable beam size. Sensor pixel size, optical magnification and quoted measurement resolution describe different quantities. Gaussian TEM00 limits may be smaller than the sensor aperture.

  3. 03

    Check power and exposure

    Read total power, irradiance and pulse-energy-density limits together. Include pulse duration, repetition rate, beam diameter, cooling and the permitted measurement time. Attenuation conditions belong to the quoted limit.

  4. 04

    Plan acquisition and alignment

    Match USB or GigE, trigger support, software requirements and beam-entry geometry. Divergence needs measurements at known axial positions; automated M² analysis requires the appropriate scan hardware and software configuration.

Technical FAQ

Configuration questions for CN0104NIR-W500-AZ20L

Does the largest model power rating apply to every laser?

No. The rating depends on wavelength, beam diameter, attenuation, cooling and operating time. For example, the 500 W configurations distinguish 200 W, 300 W and 500 W operation by focused-spot size and measurement time. The 1000 W model specifies continuous operation with water cooling.

Is the sensor aperture the maximum Gaussian beam diameter?

Not always. Several models give a smaller TEM00 or 1/e² beam limit than the geometric sensor range. Read the model footnotes and central-incidence conditions alongside the main table.

Can a single camera image measure divergence or M²?

A single profile gives the transverse distribution at one plane. Divergence and M² require measurements along the propagation axis, suitable optics and a defined analysis method. Confirm the translation, attenuation and software configuration for that workflow.

Which computer and interface are required?

Most listed models specify Windows 10 or 11, 64-bit, with MS Office or WPS, at least 8 GB RAM and a processor of at least 2.5 GHz with four or more cores. USB3.0, GigE, 10GigE and trigger availability vary by model; use its exact specification.

Technical documents

Keep the optical, electrical, mechanical and operating specifications together for your configuration.

Datasheet

Match the profiler to your laser

Include wavelength, beam size, CW or pulsed operation, pulse energy, repetition rate, power, exposure time, cooling and the measurements you need.
