Absorber contrast
Wavelength selects chromophore response and penetration depth.
See living systems · Bioscience & imaging

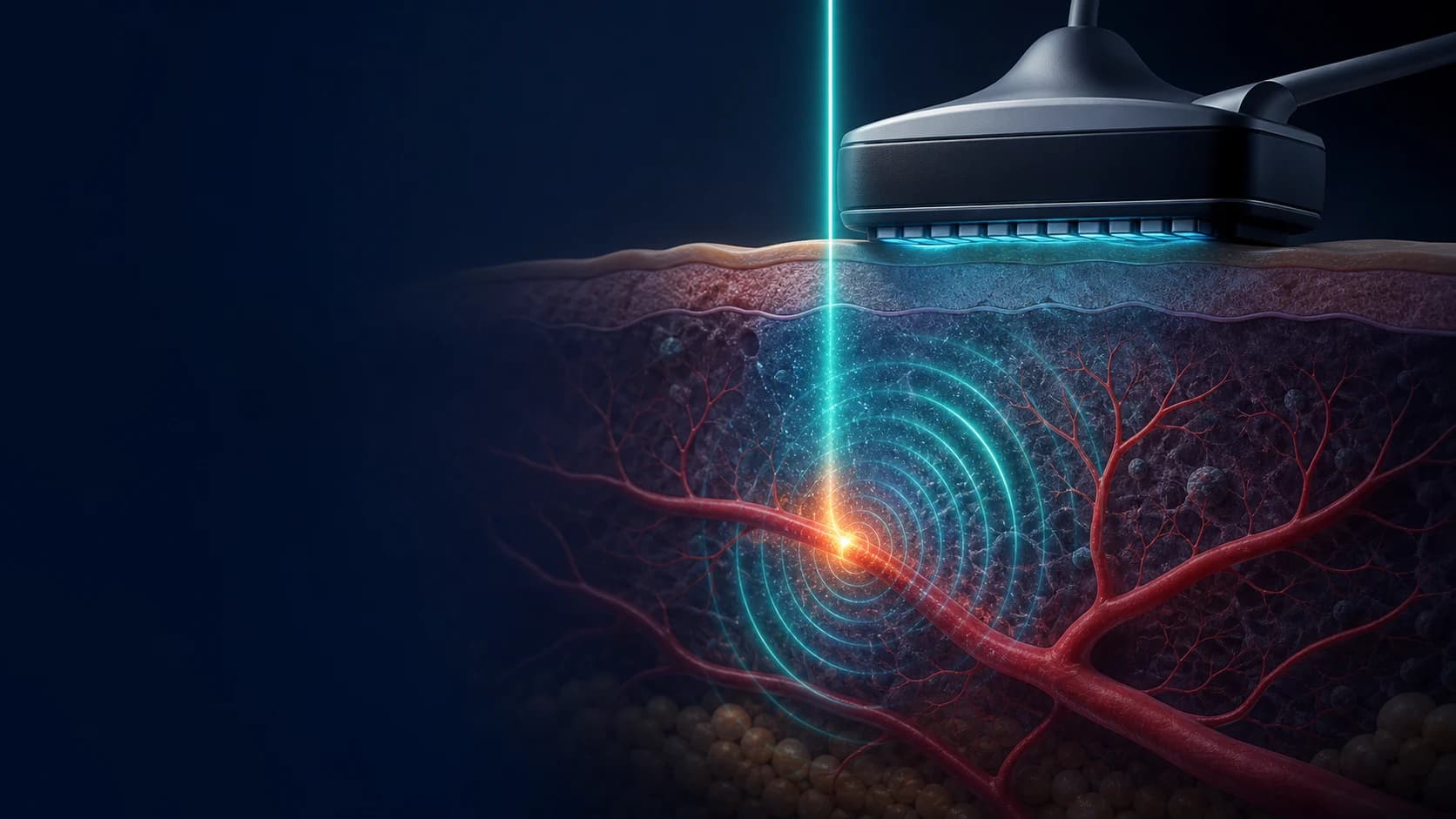

Photoacoustic imaging
Convert optical absorption into depth-resolved acoustic contrast.
Application focusAbsorber contrast
ns pulse energy
Short pulses create acoustic pressure efficiently.
Safe fluence
Spot size and energy must respect sample and tissue limits.
Why the source matters
Photoacoustic excitation requires controlled pulse duration and energy, with wavelength selected for absorber contrast and penetration depth.
The correct source is defined at the sample or process—not at the laser aperture. Wavelength and operating mode set the interaction; stability, delivery, timing, and control determine whether it stays useful in the complete system.
Light in266 nm example, visible to NIR depending tissue and absorber
InteractionExcite or manipulate
ResultAbsorber contrast
Application workflow
Design from the result backward.
Three decisions turn the application into a practical source specification.
Choose the contrast
Identify absorber, tissue depth, spectral window, and detector bandwidth.
Set fluence at the target
Relate pulse energy to beam diameter, delivery loss, safety limits, and signal-to-noise.
Synchronize acquisition
Match repetition rate, trigger, jitter, scanning, and acoustic capture.
Selection guide
Match the architecture to the experiment.
These are starting architectures. Precisometer qualifies the final wavelength, output, delivery, control, and integration package against your setup.
- Wavelength band
- 266 nm example, visible to NIR depending tissue and absorber
- Operating mode
- Nanosecond pulsed
Single-wavelength imaging
A compact nanosecond source supports repeatable excitation at one absorber band.
Spectroscopic photoacoustics
Plan tunability or multiple wavelengths around chromophore separation.
Instrument integration
Specify delivery optics, monitoring, trigger behavior, scanning, and enclosure together.
Ready to specify
Bring us the application—not a guessed model number.
Ask for absorber, tissue depth, pulse energy, repetition rate, pulse width, beam diameter, and synchronization.
