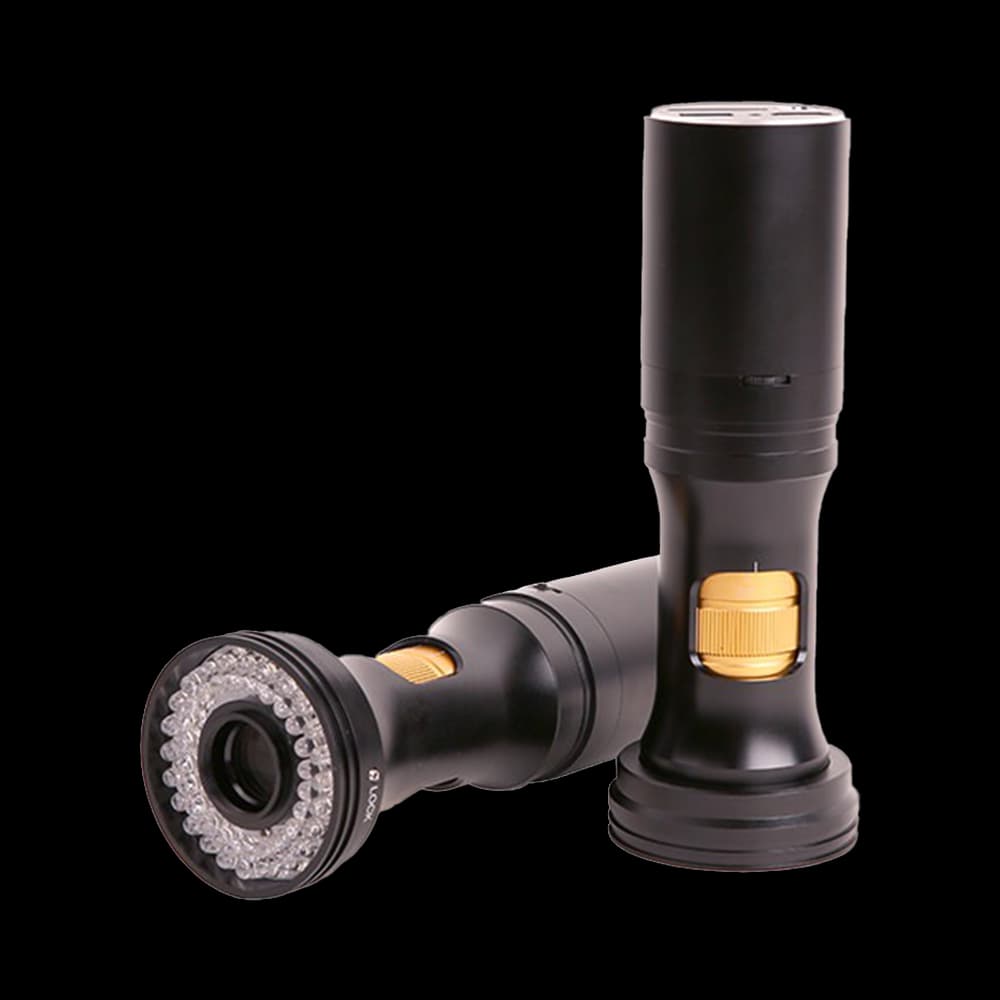

Continuous Zoom HDMI Interface Digital Microscopy All-in-One
ZM0756H1080PA
ZM0756H1080PA ZM system combines 0.7–5.6× zoom optics, HDMI/USB/Wi-Fi imaging and replaceable illumination for inspection microscopy.
- Sensor
- Sony IMX307(C)
- Resolution
- 2MP (1920×1080)
- Pixel Size
- 2.9 μm × 2.9 μm
- Frame Rate
- HDMI: 60 fps@1920×1080
- Interface
- HDMI
Specifications
ZM0756H1080PA
20 specification rows
The ZM0756H1080PA is a intelligent imaging camera in the ZM series, built around a Sony IMX307(C) sensor, 2MP (1920×1080) resolution, 2.9 μm × 2.9 μm pixels, frame rates up to HDMI: 60 fps@1920×1080, a HDMI interface. It suits continuous zoom hdmi interface digital microscopy all-in-one where reliable imaging performance and interface compatibility matter.
Key Parameters
| Product Model | ZM0756H1080PA |
|---|---|
| Product Series | Continuous Zoom HDMI Interface Digital Microscopy All-in-One |
Sensor Parameters
| Sensor Model | Sony IMX307(C) |
|---|---|
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.4 mm |
| Pixel Size | 2.9 μm × 2.9 μm |
| Resolution | 2MP (1920×1080) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
Performance Parameters
| Frame Rate | HDMI: 60 fps@1920×1080 |
|---|---|
| Output Interface | HDMI |
| Lens Mount | TZM0756-W100-TV050 continuous zoom body |
| Storage Support | SD card |
| Software Support | XCamView |
Physical Parameters
| Power Supply | DC 12 V/1A |
|---|---|
| Dimensions | 188 mm × 52 mm |
| Weight | Approximately 0.85 kg |
Environmental Parameters
| Operating Temperature | 0 °C ~ +50 °C |
|---|
Other Information
| OS Support | No computer required, direct HDMI output |
|---|---|
| Certification | CE, FCC, UL |
