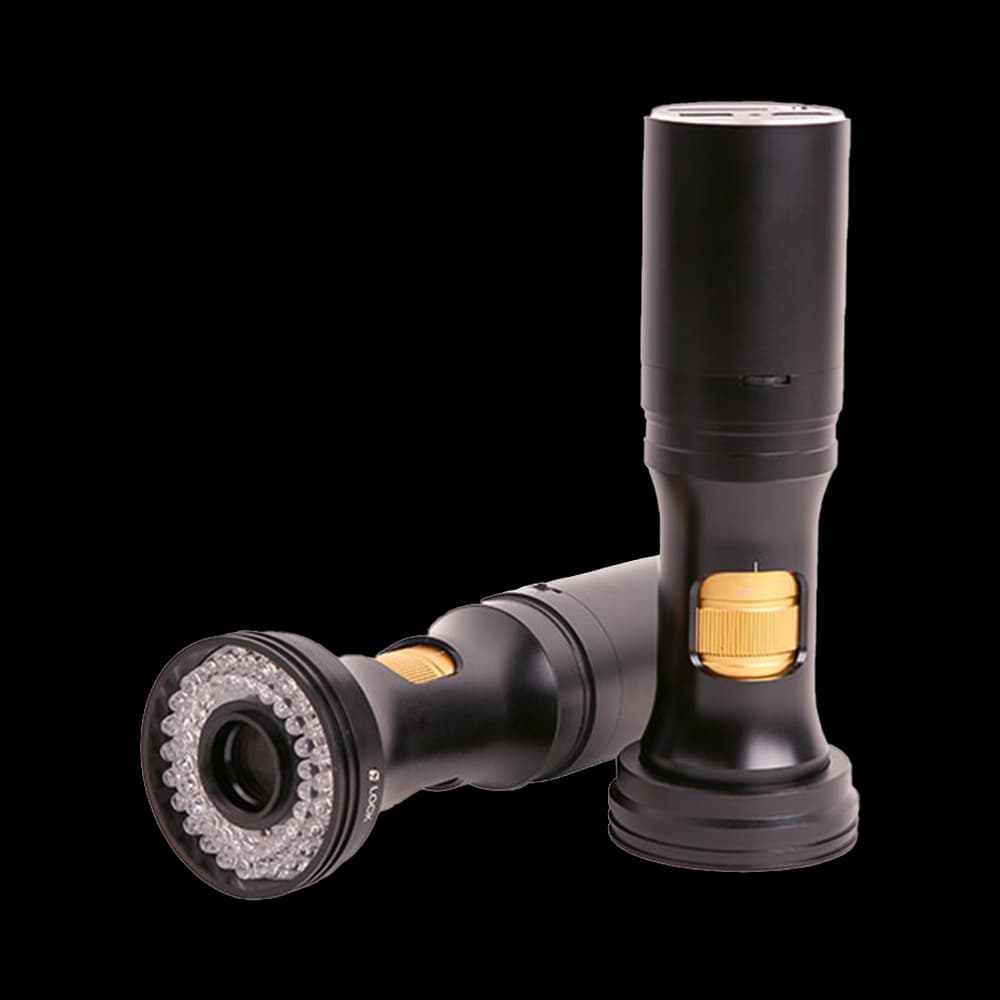

Continuous Zoom Wi-Fi or USB Interface Digital Microscopy All-in-One
ZM0480WU1080PA ZM system combines 0.7–5.6× zoom optics, HDMI/USB/Wi-Fi imaging and replaceable illumination for inspection microscopy.
Application context
ZM0480WU1080PA: The Sony IMX307(C) sensor, 2MP (1920×1080) resolution, and 2.9 μm × 2.9 μm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The USB: 50 fps@1920×1080 (MJPEG); Wi-Fi: 50 fps@1920×1080 (H264) frame-rate listing also sets the fastest full-frame acquisition regime.
ZM0480WU1080PA: The Sony IMX307(C) sensor, 2MP (1920×1080) resolution, and 2.9 μm × 2.9 μm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The USB: 50 fps@1920×1080 (MJPEG); Wi-Fi: 50 fps@1920×1080 (H264) frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
20 specification rows
The ZM0480WU1080PA is an intelligent imaging camera in the ZM series, built around a Sony IMX307(C) sensor, 2MP (1920×1080) resolution, 2.9 μm × 2.9 μm pixels, frame rates up to USB: 50 fps@1920×1080 (MJPEG); Wi-Fi: 50 fps@1920×1080 (H264), a Wi-Fi, USB interface. It suits continuous zoom wi-fi or usb interface digital microscopy all-in-one where reliable imaging performance and interface compatibility matter.
| Product Model | ZM0480WU1080PA |
|---|---|
| Product Series | Continuous Zoom Wi-Fi or USB Interface Digital Microscopy All-in-One |
| Sensor Model | Sony IMX307(C) |
|---|---|
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.4 mm |
| Pixel Size | 2.9 μm × 2.9 μm |
| Resolution | 2MP (1920×1080) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | USB: 50 fps@1920×1080 (MJPEG); Wi-Fi: 50 fps@1920×1080 (H264) |
|---|---|
| Output Interface | Wi-Fi, USB |
| Lens Mount | TZM0480-W3100-TV3050 continuous zoom body |
| Storage Support | Computer storage, Mobile device storage |
| Software Support | ToupView, ToupLite, ToupView App |
| Power Supply | DC 5 V/1A (Micro USB) |
|---|---|
| Dimensions | 213 mm × 52 mm |
| Weight | Approximately 0.85 kg |
| Operating Temperature | 10 °C ~ +50 °C |
|---|
| OS Support | Windows XP/Vista/7/8/10 (32&64-bit), macOS 10.10 and higher, Linux, iOS 11 or higher, Android 5.1 or higher |
|---|---|
| Certification | CE, FCC, UL |
System integration
Use these checks to connect ZM0480WU1080PA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: TZM0480-W3100-TV3050 continuous zoom body. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX307(C) · Resolution: 2MP (1920×1080). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: USB: 50 fps@1920×1080 (MJPEG); Wi-Fi: 50 fps@1920×1080 (H264) · Interface: Wi-Fi, USB. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare ZM0480WU1080PA with the closest available models in the ZM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | ZM0480WU1080PA (current) | ZM0480U830A | ZM0756H1080PA |
|---|---|---|---|
| Sensor | Sony IMX307(C) | Sony IMX415(C) | Sony IMX307(C) |
| Resolution | 2MP (1920×1080) | 8.3MP (3840×2160) | 2MP (1920×1080) |
| Sensor size | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.57×3.13 mm) |
| Pixel size / frame rate | 2.9 μm × 2.9 μm | 1.45 μm × 1.45 μm | 2.9 μm × 2.9 μm |
The IMX307 appears in 8 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
