Precisometer

Color · Continuous Zoom HDMI Interface Digital Microscopy All-in-One

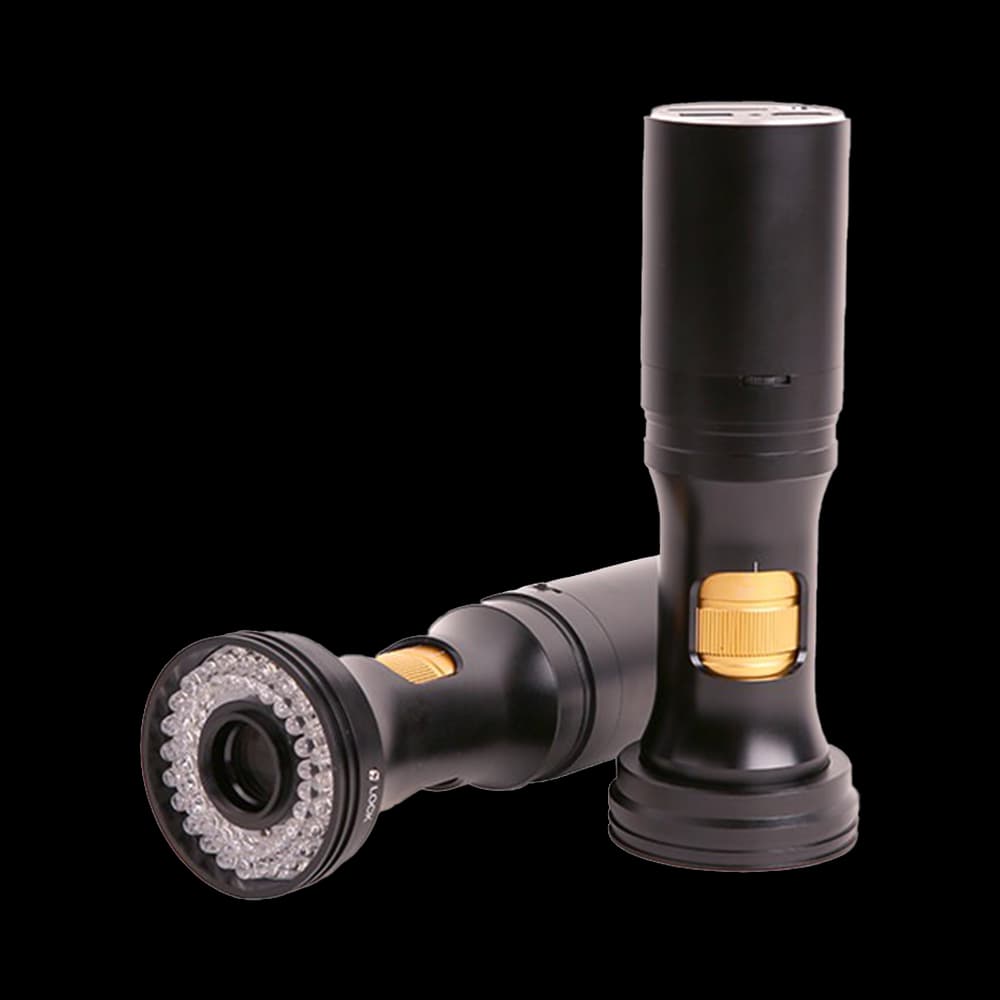

ZM0480H4K8MPA

Sensor
Sony IMX415(C)
Resolution
8MP (3840×2160)
Pixel Size
1.45 μm × 1.45 μm
Frame Rate
HDMI: 30 fps@3840×2160; 30 fps@1080P
Interface
HDMI
Complete specificationsBack to Intelligent Imaging Cameras
ZM0480H4K8MPA

Complete Specifications

Sensor & Imaging

Sensor & Imaging
Sensor ModelSony IMX415(C)
Sensor Size1/2.8" (5.57×3.13 mm)
Diagonal6.4 mm
Pixel Size1.45 μm × 1.45 μm
Resolution8MP (3840×2160)
Shutter TypeRolling shutter
Color TypeColor
SensorSony IMX415(C)

Performance

Performance
Frame RateHDMI: 30 fps@3840×2160; 30 fps@1080P

Interface & Connectivity

Interface & Connectivity
Output InterfaceHDMI
Storage SupportSD card
Software SupportXCamView
OS SupportNo computer required, direct HDMI output
InterfaceHDMI

Cooling & Mechanical

Cooling & Mechanical
Lens MountTZM0480-W3100-TV3050 continuous zoom body
Power SupplyDC 12 V/1A
Dimensions223 mm × 52 mm
WeightApproximately 0.85 kg
Operating Temperature0 °C ~ +50 °C

Other Published Specifications

Other Published Specifications
Product ModelZM0480H4K8MPA
Product SeriesContinuous Zoom HDMI Interface Digital Microscopy All-in-One
CertificationCE, FCC, UL

Technical Files & Images

Datasheet (PDF) (PDF)

Related Products

Selection parameterZM0480H4K8MPA (current)ZM0480U830ASame IMX415 sensorZM0756H4K8MPASame IMX415 sensorZM0756U830ASame IMX415 sensor
SensorSony IMX415(C)Sony IMX415(C)Sony IMX415(C)Sony IMX415(C)
Image typeColorColorColorColor
Resolution8MP (3840×2160)8.3MP (3840×2160)8MP (3840×2160)8.3MP (3840×2160)
Pixel size1.45 μm × 1.45 μm1.45 μm × 1.45 μm1.45 μm × 1.45 μm1.45 μm × 1.45 μm
Frame / line rateHDMI: 30 fps@3840×2160; 30 fps@1080P30 fps@3840×2160; 30 fps@1920×1080; 30 fps@1280×720; 30 fps@960×540HDMI: 30 fps@3840×2160; 30 fps@1080P30 fps@3840×2160; 30 fps@1920×1080; 30 fps@1280×720; 30 fps@960×540
InterfaceHDMIUSB2.0HDMIUSB2.0
Cooling / shutterRolling shutterRolling shutterRolling shutterRolling shutter
Compare all IMX415 cameras
