Color · Multi-interface camera

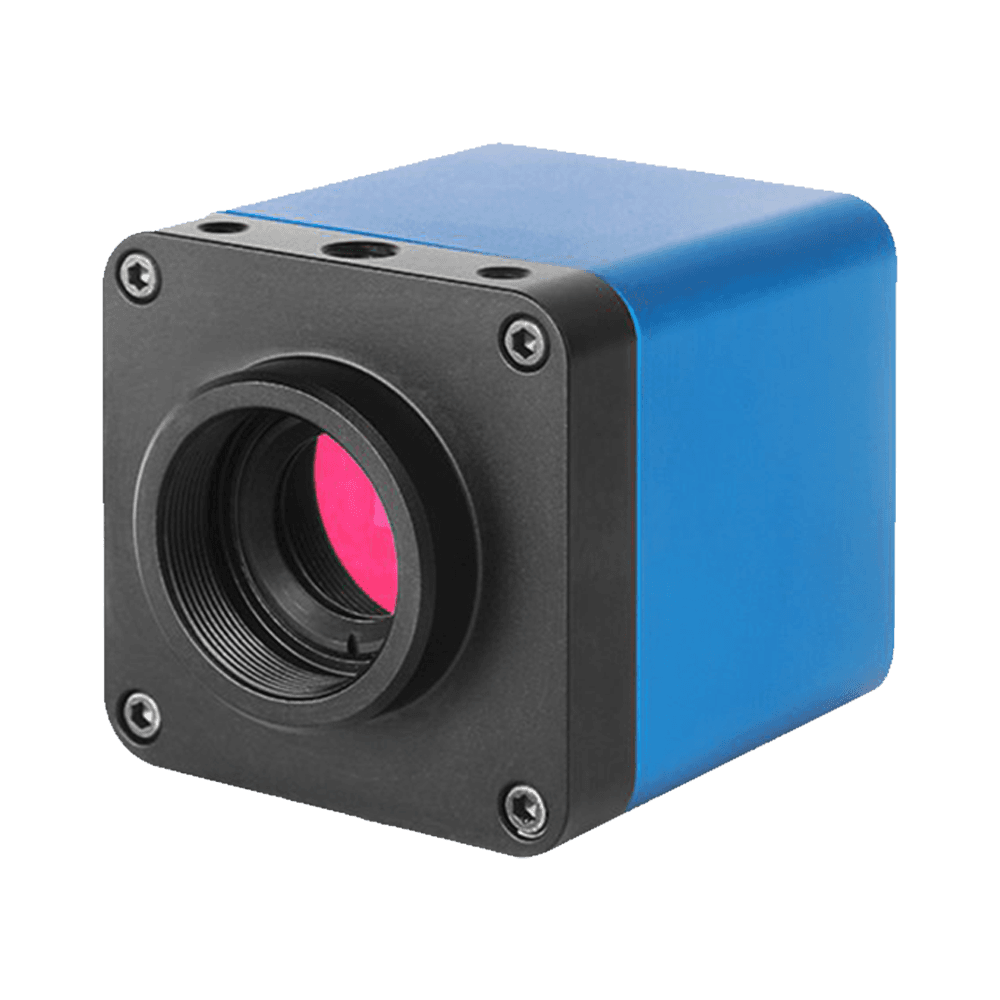

XCAM0720PHC
- Sensor
- Sony IMX322(C) 1/2.8" (5.78×3.02 mm)
- Frame Rate
- HDMI: 30 fps @ 1280×720; Static: 1920×1080
- Interface
- HDMI
- Resolution
- 2MP (1920×1080)
- Pixel Size
- 2.8 µm × 2.8 µm
Complete Specifications
Sensor & Imaging
| Sensor/Size | Sony IMX322(C) 1/2.8" (5.78×3.02 mm) |
|---|---|
| Effective Pixels | 2.8 µm × 2.8 µm |
| Sensor | Sony IMX322(C) 1/2.8" (5.78×3.02 mm) |
| Resolution | 2MP (1920×1080) |
| Pixel Size | 2.8 µm × 2.8 µm |
Performance
| Frame Rate (fps) | HDMI: 30 fps @ 1280×720; Static: 1920×1080 |
|---|---|
| Frame Rate | HDMI: 30 fps @ 1280×720; Static: 1920×1080 |
Interface & Connectivity
| Output Resolution | 2MP (1920×1080) |
|---|---|
| Output Interface | HDMI |
| Storage Support | SD card (max 32GB) |
| Interface | HDMI |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|
Other Published Specifications
| Model | XCAM0720PHC |
|---|---|
| Featured Functions | Mouse control SD card storage OSD menu Crosshair display Wired remote photography |
Technical Files & Images

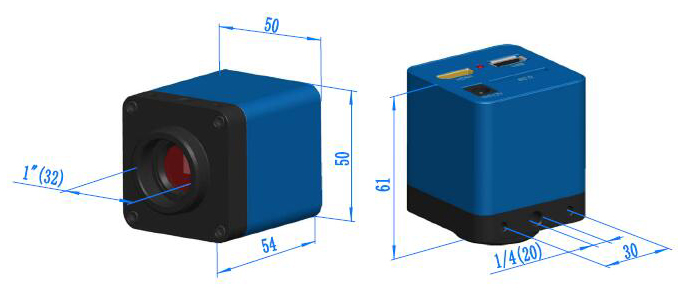

Technical images (1)
