Color · Multi-interface camera

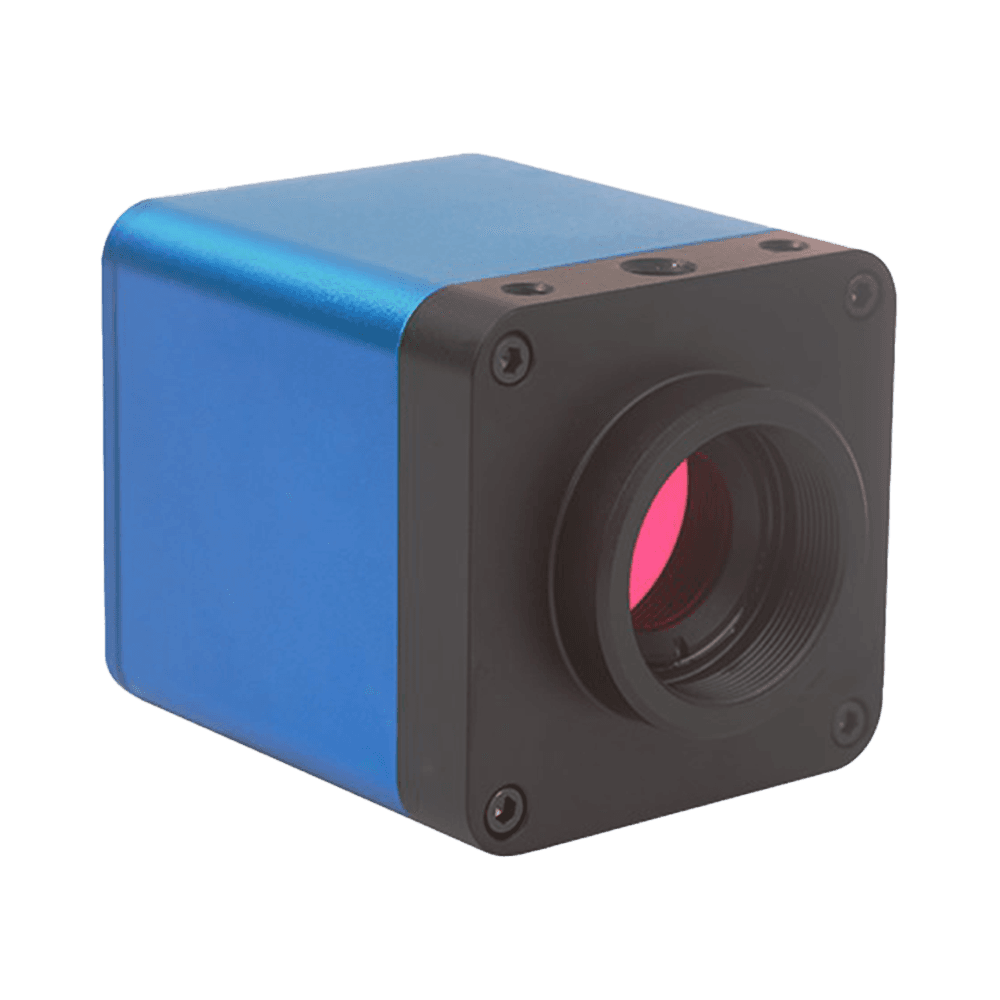

WECAM5MPA
- Sensor
- Sony IMX178(C) 1/1.8" (6.22×4.67 mm)
- Frame Rate
- LAN/Wi-Fi: 30 fps @ 2592×1944
- Interface
- LAN Wi-Fi 802.11ac
- Resolution
- 5MP (2592×1944)
- Pixel Size
- 2.4 µm × 2.4 µm
Complete Specifications
Sensor & Imaging
| Sensor/Size | Sony IMX178(C) 1/1.8" (6.22×4.67 mm) |
|---|---|
| Effective Pixels | 2.4 µm × 2.4 µm |
| Sensor | Sony IMX178(C) 1/1.8" (6.22×4.67 mm) |
| Resolution | 5MP (2592×1944) |
| Pixel Size | 2.4 µm × 2.4 µm |
Performance
| Frame Rate (fps) | LAN/Wi-Fi: 30 fps @ 2592×1944 |
|---|---|
| Frame Rate | LAN/Wi-Fi: 30 fps @ 2592×1944 |
Interface & Connectivity
| Output Resolution | 5MP (2592×1944) |
|---|---|
| Output Interface | LAN Wi-Fi 802.11ac |
| Storage Support | No local storage |
| Interface | LAN Wi-Fi 802.11ac |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|
Other Published Specifications
| Model | WECAM5MPA |
|---|---|
| Featured Functions | Dual network interfaces AP/STA mode switching Network bandwidth adjustment |
Technical Files & Images
Datasheet (PDF)Technical images (2)
Related Products
| Selection parameter | WECAM5MPA (current) | E3CMOS06300KMASame IMX178 sensor | E3CMOS06300KPASame IMX178 sensor | E3ISPM06300KPASame IMX178 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX178(C) 1/1.8" (6.22×4.67 mm) | IMX178 (M,RS) | IMX178 (C,RS) | IMX178 (C,RS) |
| Image type | Color | Monochrome | Color | Color |
| Resolution | 5MP (2592×1944) | 6.3M (3072×2048) | 6.3M (3072×2048) | 6.3M (3072×2048) |
| Pixel size | 2.4 µm × 2.4 µm | 2.4 µm × 2.4 µm | 2.4 µm × 2.4 µm | 2.4 µm × 2.4 µm |
| Frame / line rate | LAN/Wi-Fi: 30 fps @ 2592×1944 | 30 fps @ 3072×2048; 50 fps @ 1536×1024 | 15 fps @ 3072×2048; 26 fps @ 1536×1024 | 30 fps @ 3072×2048; 38 fps @ 1536×1024 |
| Interface | LAN Wi-Fi 802.11ac | USB3.0 | USB3.0 | USB3.0 |
