Precisometer

PMS-LTD-60R/G/B/W

PMS-LTD-60R/G/B/W parallel illumination. Beam diameter: 60mm. Telecentric LED backlighting for high-contrast edges and profile measurement.

Parallel Illumination

Telecentric LED backlighting for high-contrast edges and profile measurement.

Model datasheet (PDF)Complete specifications
Parallel Illumination representative product photo
Representative photo of the parallel illumination range

Complete specifications

PMS-LTD-60R/G/B/W model specifications
Beam diameter60mm
Working distance90-180mm
Outer diameter72mm
Length180mm
Forward voltage3.5V
Forward current350mA
Available colorsRed / Green / Blue / White

Technical drawings

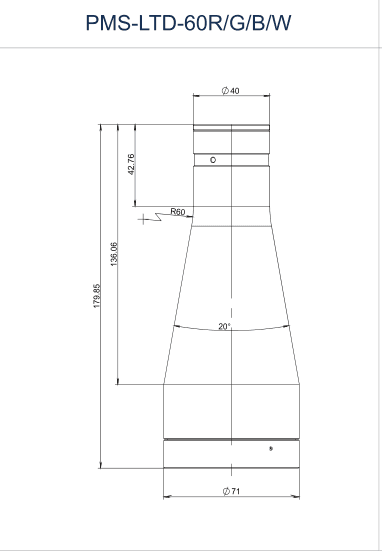

PMS-LTD-60R/G/B/W dimension drawing (mm)

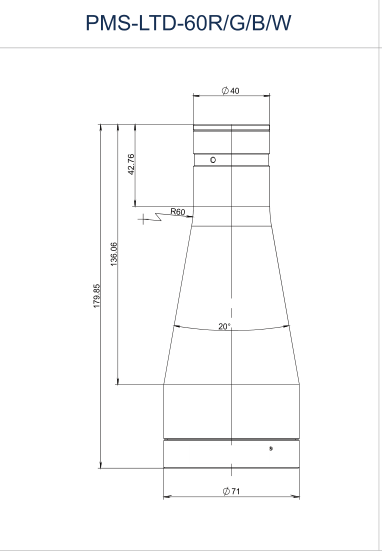

PMS-LTD-60R/G/B/W dimension drawing (mm)
