Precisometer

PMS-LTD-30R/G/B/W

PMS-LTD-30R/G/B/W parallel illumination. Beam diameter: 30mm. Telecentric LED backlighting for high-contrast edges and profile measurement.

Parallel Illumination

Telecentric LED backlighting for high-contrast edges and profile measurement.

Model datasheet (PDF)Complete specifications
Parallel Illumination representative product photo
Representative photo of the parallel illumination range

Complete specifications

PMS-LTD-30R/G/B/W model specifications
Beam diameter30mm
Working distance45-90mm
Outer diameter43.5mm
Length121.16mm
Forward voltage3.5V
Forward current350mA
Available colorsRed / Green / Blue / White

Technical drawings

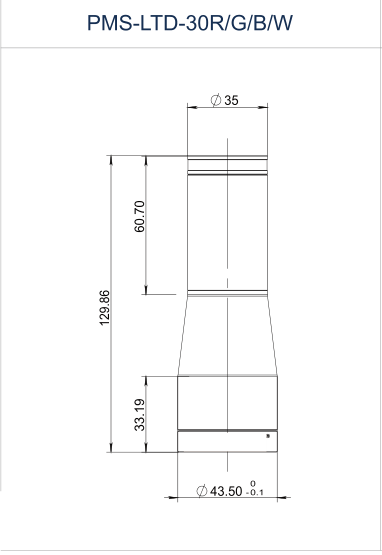

PMS-LTD-30R/G/B/W dimension drawing (mm)
PMS-LTD-30R/G/B/W dimension drawing (mm)
