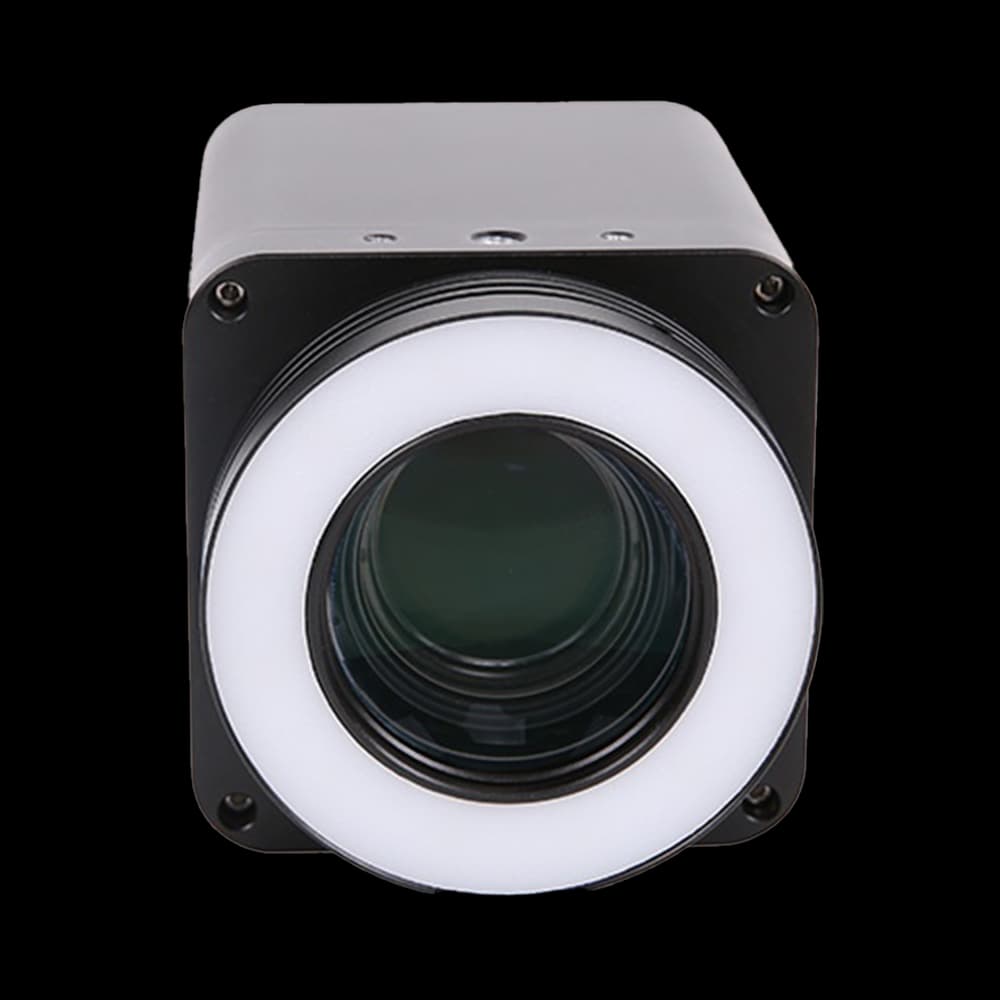

Touchscreen Continuous Zoom Autofocus Digital Microscope
TAFDM411 combines a 13.3-inch touchscreen, 4K output, continuous zoom and autofocus for inspection, teaching and on-site demonstrations.
Application context
TAFDM411: The Sony IMX415LQR-C sensor, 8MP (3840×2160) resolution, and 1.45 µm × 1.45 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI/USB/Network: 30 fps@3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
TAFDM411: The Sony IMX415LQR-C sensor, 8MP (3840×2160) resolution, and 1.45 µm × 1.45 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI/USB/Network: 30 fps@3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
27 specification rows
The TAFDM411 is an intelligent imaging camera in the AFDM series, built around a Sony IMX415LQR-C sensor, 8MP (3840×2160) resolution, 1.45 µm × 1.45 µm pixels, frame rates up to HDMI/USB/Network: 30 fps@3840×2160, a HDMI1.4, USB Video, Ethernet, Wi-Fi, 13.3" Touchscreen interface. It suits touchscreen continuous zoom autofocus digital microscope where reliable imaging performance and interface compatibility matter.
| Product Model | TAFDM411 |
|---|---|
| Product Series | Touchscreen Continuous Zoom Autofocus Digital Microscope |
| Sensor Model | Sony IMX415LQR-C |
|---|---|
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.4 mm |
| Pixel Size | 1.45 µm × 1.45 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Lens Type | EMZO-20XA Lens |
|---|---|
| Optical Zoom | 20× (0.028X~0.56X) |
| Working Distance | 150~195 mm (standard 192 mm) |
| Field of View | Low magnification: 200×112.5 mm, High magnification: 10×5.6 mm |
| Autofocus | Supported |
| Frame Rate | HDMI/USB/Network: 30 fps@3840×2160 |
|---|---|
| Output Interfaces | HDMI1.4, USB Video, Ethernet, Wi-Fi, 13.3" Touchscreen |
| Storage Support | SD Card, USB Flash Drive |
| Software Support | XCamView, ToupView, ToupLite |
| Power Supply | DC 12 V / 3 A |
|---|---|
| External Dimensions | 80 × 80 × 122 mm |
| Weight | 0.75 kg |
| Operating Temperature | 10 °C ~ +50 °C |
|---|---|
| Storage Temperature | 20 °C ~ +60 °C |
| Operating Humidity | 30~80% RH |
| Storage Humidity | 10~60% RH |
| Operating System Support | Windows, Linux, macOS, Android, iOS |
|---|---|
| Certification | CE, FCC, UL |
System integration
Use these checks to connect TAFDM411 to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Sensor: Sony IMX415LQR-C · Resolution: 8MP (3840×2160). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI/USB/Network: 30 fps@3840×2160 · Interface: HDMI1.4, USB Video, Ethernet, Wi-Fi, 13.3" Touchscreen. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare TAFDM411 with the closest available models in the AFDM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | TAFDM411 (current) | AFDM512B | TAFDM412 |
|---|---|---|---|
| Sensor | Sony IMX415LQR-C | Sony IMX415LQR-C | Sony IMX415LQR-C |
| Resolution | 8MP (3840×2160) | 8MP (3840×2160) | 8MP (3840×2160) |
| Sensor size | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.57×3.13 mm) |
| Pixel size / frame rate | 1.45 µm × 1.45 µm | 1.45 µm × 1.45 µm | 1.45 µm × 1.45 µm |
The IMX415 appears in 14 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
