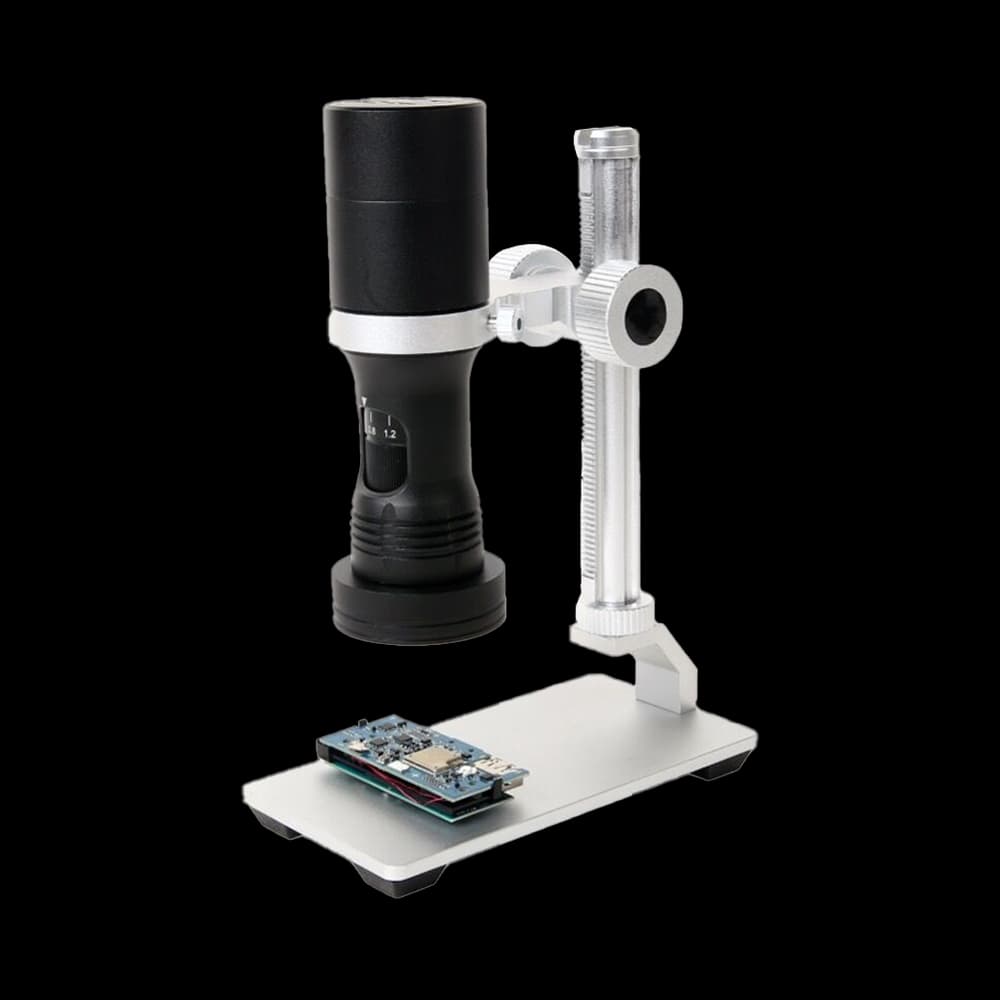

Portable HDMI Microscope
PZM0840H1080PA PZM system combines 0.7–5.6× zoom optics, HDMI/USB/Wi-Fi imaging and replaceable illumination for inspection microscopy.
Application context
PZM0840H1080PA: The Sony IMX307(C) sensor, 2MP (1920×1080) resolution, and 2.9 μm × 2.9 μm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 60 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
PZM0840H1080PA: The Sony IMX307(C) sensor, 2MP (1920×1080) resolution, and 2.9 μm × 2.9 μm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 60 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
20 specification rows
The PZM0840H1080PA is an intelligent imaging camera in the PZM series, built around a Sony IMX307(C) sensor, 2MP (1920×1080) resolution, 2.9 μm × 2.9 μm pixels, frame rates up to HDMI: 60 fps@1920×1080, a HDMI, USB3.0 interface. It suits portable hdmi microscope where reliable imaging performance and interface compatibility matter.
| Product Model | PZM0840H1080PA |
|---|---|
| Product Series | Portable HDMI Microscope |
| Sensor Model | Sony IMX307(C) |
|---|---|
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.4 mm |
| Pixel Size | 2.9 μm × 2.9 μm |
| Resolution | 2MP (1920×1080) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | HDMI: 60 fps@1920×1080 |
|---|---|
| Output Interface | HDMI, USB3.0 |
| Lens Mount | PZM0840 continuous zoom body |
| Storage Support | USB flash drive |
| Software Support | XCamView |
| Power Supply | DC 5 V/2A |
|---|---|
| Dimensions | 141.5 mm × 44 mm |
| Weight | Approximately 0.8 kg |
| Operating Temperature | 0 °C ~ +50 °C |
|---|
| OS Support | No computer required, direct HDMI output |
|---|---|
| Certification | CE, FCC, UL |
System integration
Use these checks to connect PZM0840H1080PA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: PZM0840 continuous zoom body. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX307(C) · Resolution: 2MP (1920×1080). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 60 fps@1920×1080 · Interface: HDMI, USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare PZM0840H1080PA with the closest available models in the PZM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | PZM0840H1080PA (current) | PZM0840U510A |
|---|---|---|
| Sensor | Sony IMX307(C) | Sony IMX335(C) |
| Resolution | 2MP (1920×1080) | 5.1MP (2592×1944) |
| Sensor size | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.18×3.89 mm) |
| Pixel size / frame rate | 2.9 μm × 2.9 μm | 2.0 μm × 2.0 μm |
The IMX307 appears in 8 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
